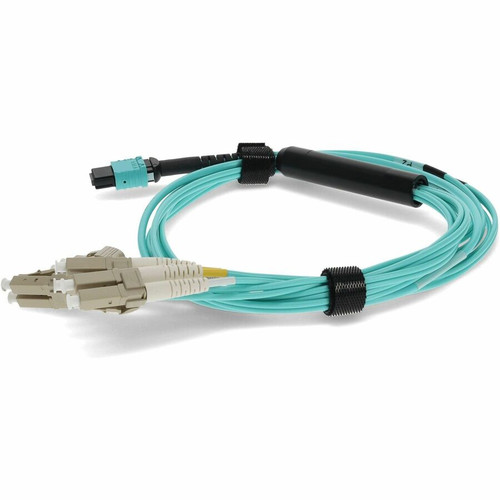

AddOn ADD-MPO-4LC4M5OM4 MPO/UPC to 4xLC/UPC Duplex Fanout Cable - OM4 Aqua 50/125 µm 13. 1 ft (4 m) Riser-Rated Fiber Optic Network Cable
Business volume discounts
Technical guidance
Preparation & staging
QC · ON · AB · BC
Product Features
Technical Overview
This fanout cable utilizes 50/125 µm OM4 multimode fiber, optimized for 10 GbE, 40 GbE, and 100 GbE applications with support for distances up to 150 meters at 10 Gbps. The MPO female connector on one end interfaces with MPO-based patch panels, switches, or media converters, while the eight LC male connectors on the other end connect to individual ports on devices like routers, hubs, or network interfaces. The riser-rated OFNR jacket complies with fire safety standards for vertical runs between floors.
Key technical attributes include the absence of shielding, which is typical for indoor fiber optic cables, and the use of UPC (Ultra Physical Contact) polish on connectors to ensure low loss and high return loss. The cable's 13.1 ft (4 m) length is ideal for rack-to-rack or within-rack patching, reducing slack and clutter in data centers or telecom rooms.
Key Product Advantages
This cable simplifies high-density fiber deployments by providing a pre-terminated breakout solution that reduces installation time and eliminates the need for field termination. The MPO to LC conversion enables seamless integration between MPO backbone systems and LC-based equipment, supporting scalability in growing networks.
High-Density Connectivity
Converts one MPO port into eight LC ports, maximizing port utilization in switches and patch panels without requiring separate adapters or cassettes.
- Ideal for 40/100 GbE breakout applications
- Reduces cable clutter in racks
Reliable Performance
OM4 fiber with PC connectors ensures low signal loss and high bandwidth for demanding applications like data centers and enterprise networks.
- Supports high-speed protocols up to 100 GbE
- Minimizes insertion loss with UPC polish
Deployment / Use Cases
This fanout cable is primarily used in data centers for connecting MPO-based fiber trunks to LC ports on switches, routers, or servers. It facilitates 40 GbE and 100 GbE breakout configurations, where a single MPO interface is split into multiple 10 GbE or 25 GbE links. Common applications include patching between MPO patch panels and LC-based media converters or network devices in telecom rooms.
In enterprise environments, it supports network upgrades by enabling legacy LC equipment to connect to modern MPO backbone systems. The riser-rated jacket makes it suitable for vertical runs in building risers, while the halogen-free feature ensures safety in occupied spaces. It is compatible with a wide range of devices, including patch panels, hubs, switches, media converters, routers, and other network equipment.
Data Center Patching
Use for direct connections between MPO backbone switches and LC-terminated servers or storage arrays, optimizing space in high-density racks.
Network Expansion
Deploy in telecom rooms to extend MPO fiber runs to multiple LC ports, supporting scalable network growth without re-cabling.
Highlights
- Converts MPO female to 8 LC male connectors for high-density breakout
- OM4 50/125 µm multimode fiber supports 10/40/100 GbE applications
- 13.1 ft (4 m) length ideal for rack-to-rack patching
- Riser-rated OFNR jacket for vertical installations between floors
- Aqua color identifies OM4 fiber for easy network management
- Halogen-free and stranded construction for safety and flexibility
- Physical Contact (PC) connectors minimize insertion loss
- Compatible with patch panels, switches, media converters, routers
- Manufactured in the United States
- Lifetime limited warranty for long-term reliability
Specifications
| Specifications | |
|---|---|
| Manufacturer | AddOn |
| Manufacturer Part Number | ADD-MPO-4LC4M5OM4 |
| Brand Name | AddOn |
| Product Name | Fiber Optic Duplex Patch Network Cable |
| Packaged Quantity | 1.0 |
| Product Type | Network Cable |
| Technical Information | |
| Cable Type | Fiber Optic |
| Cable Characteristic | Fan-out Cable |
| Fiber Optic Mode | Multi-mode |
| Fiber Optic Cable Core/Cladding Specification | 50/125 µm |
| Fiber Category | OM4 |
| Cable Length | 13.1 ft (4 m) |
| Connector Type on First End | MPO Network - Female |
| Connector Gender on First End | Female |
| Connector on First End Details | 1 x MPO Network - Female |
| Connector Type on Second End | LC Network - Male |
| Connector Gender on Second End | Male |
| Connector on Second End Details | 8 x LC Network - Male |
| Shielding | No |
| Jacket Type | Riser |
| Device Supported | Patch Panel,Hub,Switch,Media Converter,Router,Network Device |
| Features | Halogen Free,Stranded,Physical Contact (PC) |
| Physical Characteristics | |
| Color Family | Green |
| Product Color | Aqua |
| Miscellaneous | |
| Country of Origin | United States |
| TAA Compliant | No |
| Warranty | |
| Limited Warranty | Lifetime |
User Manual
FAQ
What is the purpose of this MPO to LC fanout cable?
This cable is designed to breakout a single MPO connection into eight individual LC connections, enabling high-density fiber patching in data centers and network environments. It simplifies deployments by allowing MPO-based backbone systems to connect directly to LC-terminated equipment like switches or servers without additional adapters.
What fiber type and category does this cable use?
It uses OM4-grade multimode fiber with a 50/125 µm core/cladding specification. OM4 fiber is optimized for high-speed applications up to 100 GbE over short to medium distances, providing low attenuation and high bandwidth for reliable data transmission.
Is this cable suitable for riser installations?
Yes, the cable features a riser-rated OFNR jacket, making it compliant for vertical runs between floors in building risers. This rating ensures fire safety standards are met for indoor installations where cables pass through plenums or shafts.
What devices are compatible with this fanout cable?
It is compatible with a wide range of network devices, including patch panels, hubs, switches, media converters, routers, and other standard network equipment. The MPO female end connects to MPO interfaces, while the LC male ends interface with LC ports.
Does this cable support high-speed network protocols?
Yes, the OM4 multimode fiber supports protocols such as 10 GbE, 40 GbE, and 100 GbE, with distances up to 150 meters for 10 GbE. It is ideal for data center and enterprise applications requiring high bandwidth and low latency.
What are the key features of the connectors on this cable?
The connectors use UPC (Ultra Physical Contact) polish for low insertion loss and high return loss. The MPO end is female with 12 fibers (8 used in this duplex configuration), and the LC ends are male, providing reliable physical contact for stable optical performance in demanding environments.
