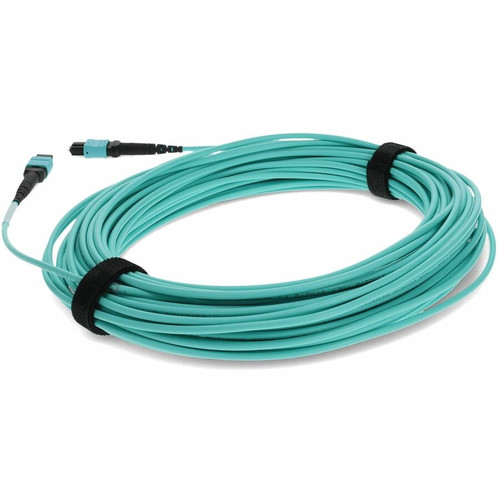

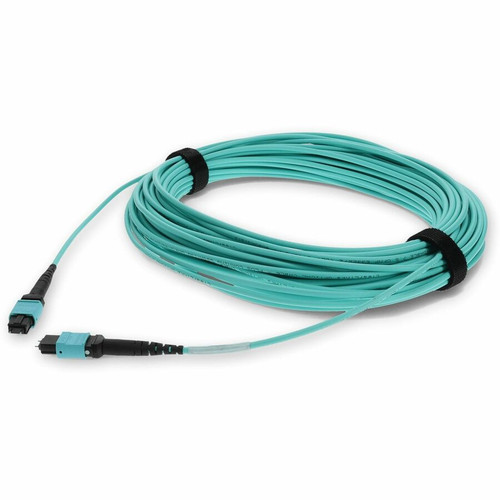

AddOn ADD-MPOMPO-50M5OM3M MPO/UPC Male to MPO/UPC Male 12-Strand OM3 Multimode Fiber Patch Cable - 164 ft (50 m) Aqua OFNR Riser-Rated
Business volume discounts
Technical guidance
Preparation & staging
QC · ON · AB · BC
Product Features
Technical Overview
This fiber patch cable utilizes OM3 multimode fiber with a 50/125 µm core/cladding specification, supporting data rates up to 10 Gbps over distances of up to 300 meters. The MPO/UPC male connectors provide precise physical contact (PC) polishing for low insertion loss and high return loss, maintaining signal integrity in demanding network environments.
The cable is constructed with stranded fiber for enhanced flexibility and durability, allowing easier routing and installation in tight spaces. With no shielding required for fiber optic applications, the design focuses on optical performance and mechanical reliability.
This section brings together practical product details such as Cable Type, Cable Characteristic, Fiber Optic Mode, Color Family, so buyers can judge configuration, deployment fit, and day-to-day suitability with less guesswork.
Key Product Advantages
This cable combines high-performance fiber optics with practical installation features for professional network deployments. The MPO connector design supports parallel optic applications, enabling multiple fiber connections through a single interface for space-efficient cabling.
Durable Construction
The LSZH (Low Smoke Zero Halogen) jacket material minimizes toxic emissions in case of fire, while the OFNR riser rating ensures safe use in vertical shafts and between floors.
- Reduces smoke and halogen emissions
- Complies with building safety codes
- Suitable for riser and plenum applications
Reliable Connectivity
MPO/UPC male connectors with physical contact polishing deliver consistent optical performance with minimal signal loss across multiple mating cycles.
- Precision UPC polishing
- Low insertion loss
- High return loss characteristics
Deployment / Use Cases
This 12-strand MPO-to-MPO patch cable is ideal for connecting high-density fiber equipment in data centers, telecommunications facilities, and enterprise network environments. The 164 ft (50 m) length provides flexibility for intermediate distribution frames, main distribution areas, and equipment room interconnections.
Common applications include linking MPO-based transceivers in switches and routers, connecting to MPO fiber distribution panels, and establishing backbone links between network cabinets. The cable supports various network devices including patch panels, media converters, routers, and switches requiring multimode fiber connectivity.
Data Center Interconnects
Connect MPO-based 40G/100G transceivers between switches and fiber panels in high-density data center environments.
Enterprise Backbone
Establish reliable fiber links between network closets and equipment rooms using standardized MPO interfaces.
Physical Profile
The cable features an aqua-colored jacket that clearly identifies it as OM3 multimode fiber, following industry-standard color coding for easy identification in cable management systems. With an approximate weight of 12.80 oz (362.87 g), the cable maintains manageable handling characteristics despite its 164 ft length, facilitating installation without excessive bulk or weight strain.
- Weight
- 12.80 oz (362.87 g)
- Length
- 164 ft (50 m)
Highlights
- 164 ft (50 m) OM3 multimode fiber patch cable
- MPO/UPC male connectors on both ends
- 12-strand fiber configuration for parallel optics
- 50/125 µm core/cladding specification
- Aqua OFNR riser-rated LSZH jacket
- Physical Contact (PC) polished connectors
- Stranded fiber construction for flexibility
- Manufactured in the United States
- Lifetime limited warranty
- Compatible with network devices, patch panels, routers, media converters, and switches
Specifications
| Specifications | |
|---|---|
| Manufacturer | AddOn |
| Manufacturer Part Number | ADD-MPOMPO-50M5OM3M |
| Brand Name | AddOn |
| Product Name | Fiber Optic Duplex Patch Network Cable |
| Packaged Quantity | 1.0 |
| Product Type | Network Cable |
| Technical Information | |
| Cable Type | Fiber Optic |
| Cable Characteristic | Patch Cable |
| Fiber Optic Mode | Multi-mode |
| Fiber Optic Cable Core/Cladding Specification | 50/125 µm |
| Fiber Category | OM3 |
| Cable Length | 164 ft (50 m) |
| Connector Type on First End | MPO Network - Male |
| Connector Gender on First End | Male |
| Connector on First End Details | 1 x MPO Network - Male |
| Connector Type on Second End | MPO Network - Male |
| Connector Gender on Second End | Male |
| Connector on Second End Details | 1 x MPO Network - Male |
| Shielding | No |
| Jacket Type | OFNR,Riser,LSZH |
| Device Supported | Network Device,Patch Panel,Router,Media Converter,Switch |
| Features | Stranded,Physical Contact (PC) |
| Physical Characteristics | |
| Color Family | Green |
| Product Color | Aqua |
| Jacket Material | Low Smoke Zero Halogen |
| Weight (Approximate) | 12.80 oz (362.87 g) |
| Miscellaneous | |
| Country of Origin | United States |
| TAA Compliant | No |
| Warranty | |
| Limited Warranty | Lifetime |
FAQ
What type of fiber is used in this patch cable?
This cable uses OM3-grade multimode fiber with a 50/125 µm core/cladding specification. OM3 fiber is optimized for laser-based 10 Gigabit Ethernet applications and supports data transmission up to 10 Gbps over distances of 300 meters. The multimode design makes it ideal for short to medium-distance connections within data centers and enterprise networks.
What connectors are on each end of this cable?
Both ends feature MPO (Multi-fiber Push-On) connectors with UPC (Ultra Physical Contact) polishing and male gender. Each connector terminates 12 fibers in a single interface, enabling high-density connections. The MPO design supports parallel optic applications where multiple fibers transmit data simultaneously.
What does the OFNR riser-rated jacket mean?
OFNR stands for Optical Fiber Non-conductive Riser-rated. This certification indicates the cable jacket meets fire safety standards for vertical installations in riser spaces (shafts between floors). The LSZH (Low Smoke Zero Halogen) material minimizes smoke and toxic halogen emissions during combustion, enhancing safety in building infrastructure.
What devices is this cable compatible with?
This MPO-to-MPO patch cable connects to network equipment with MPO interfaces, including switches, routers, media converters, and fiber distribution panels. It supports various network devices commonly found in data centers and telecommunications environments that require multimode fiber connectivity for backbone or inter-rack connections.
What is the advantage of 12-strand fiber configuration?
The 12-strand configuration enables parallel optic transmission where multiple fibers carry data simultaneously. This supports higher bandwidth applications like 40G and 100G Ethernet when used with appropriate transceivers. The multi-fiber design also allows consolidation of multiple connections into a single cable, reducing cable clutter in high-density installations.
What warranty comes with this fiber patch cable?
AddOn provides a lifetime limited warranty for this fiber optic patch cable. This warranty covers defects in materials and workmanship for the product's usable life, offering long-term assurance of quality and reliability for network infrastructure investments.
