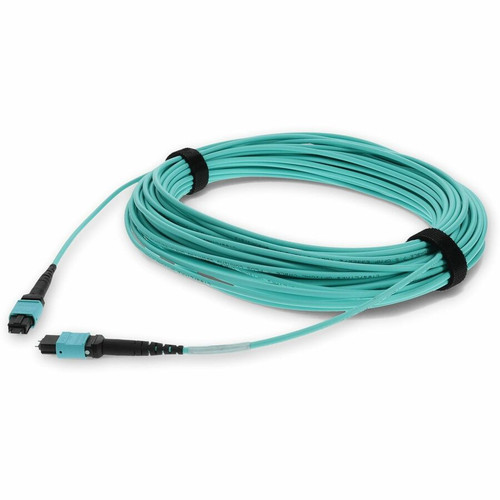

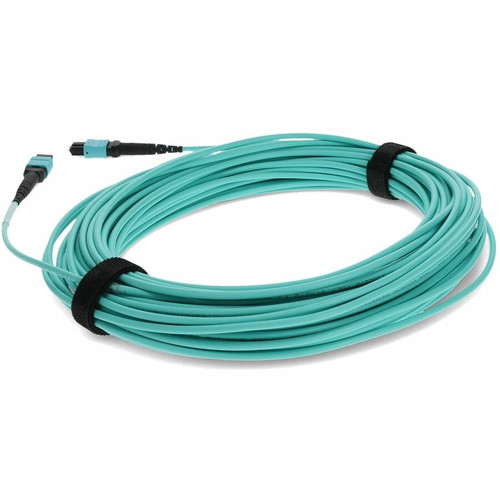

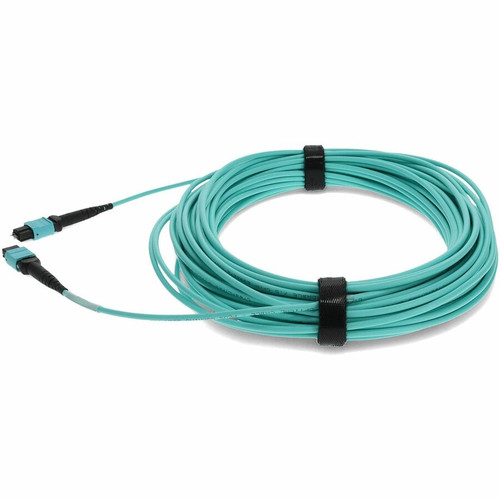

AddOn ADD-MPOMPO-50M5OM4M MPO/UPC Male to MPO/UPC Male 12-Strand OM4 Fiber Patch Cable - 164 ft (50 m) Aqua OFNR Riser-Rated
Business volume discounts
Technical guidance
Preparation & staging
QC · ON · AB · BC
Product Features
Technical Overview
This fiber optic patch cable operates in multi-mode with OM4 categorization, supporting data rates up to 100 Gb/s over the 164 ft (50 m) length. The 50/125 µm fiber geometry is optimized for 850 nm and 1300 nm wavelengths, commonly used in short to medium-distance high-speed networks. The MPO/UPC male connectors provide a secure, low-reflection interface compatible with MPO adapters, panels, and transceivers.
The cable's technical design includes laser-optimized fibers that minimize modal dispersion, enhancing performance for Ethernet, Fibre Channel, and InfiniBand applications. With no shielding required for fiber optic transmission, the focus remains on optical performance and mechanical durability. The 12-strand configuration allows for multiple fiber connections within a single cable, reducing clutter and simplifying cable management in rack-mounted environments.
Key Product Advantages
This cable combines extended reach with high-density connectivity, offering several advantages for network deployments. The 164 ft (50 m) length provides flexibility in layout design, allowing connections between distant racks or across large server rooms without intermediate splicing. The MPO/UPC male connectors on both ends enable quick, tool-less mating with MPO interfaces, reducing installation time and labor costs.
High-Density Performance
The 12-strand MPO configuration supports multiple fiber channels in a single connector, maximizing port utilization on switches, patch panels, and media converters. This design is essential for 40G and 100G Ethernet deployments where MPO trunks are standard.
- 12 fibers per cable
- MPO interface compatibility
- Reduces cable count
Safety & Compliance
The OFNR riser-rated LSZH jacket meets fire safety codes for vertical installations, producing low smoke and zero halogen when exposed to flame. This makes the cable suitable for use in plenum spaces and riser applications without additional conduit.
- OFNR rated
- LSZH material
- Vertical run approved
Deployment / Use Cases
This fiber patch cable is engineered for data center and enterprise network environments where reliability and performance are critical. It serves as a backbone link between network switches, routers, and storage area networks, supporting high-throughput applications like virtualization, cloud computing, and video streaming.
Common deployment scenarios include connecting MPO-based patch panels to media converters in telecommunications closets, linking top-of-rack switches to end-of-row aggregation points, and providing inter-building connections within campus networks. The cable's riser-rated jacket allows installation in vertical shafts between floors, while the aqua color aids in visual identification and organization within cable trays.
Data Center Backbone
Use this cable for spine-leaf architectures where MPO trunks aggregate traffic between switches. The OM4 rating ensures support for 40G and 100G Ethernet over the full 50 m distance, future-proofing infrastructure upgrades.
Enterprise Wiring
Deploy in server rooms to connect network devices, patch panels, and media converters. The stranded construction allows tight bends without signal loss, facilitating neat cable management in confined racks.
Physical Profile
The cable features a durable aqua-colored jacket that identifies it as OM4 multi-mode fiber, following industry color-coding standards. With an approximate weight of 1.20 lb (544.31 g), the cable is lightweight yet robust, designed to withstand pulling tension during installation without compromising optical performance. The MPO/UPC male connectors have a secure latch mechanism that prevents accidental disconnection in high-vibration environments.
- Weight
- 1.20 lb (544.31 g)
- Length
- 164 ft (50 m)
Highlights
- 164 ft (50 m) length for flexible network layouts
- MPO/UPC male connectors on both ends for high-density connections
- OM4 multi-mode fiber supporting high-speed data transmission
- 12-strand configuration reducing cable clutter
- Aqua OFNR riser-rated LSZH jacket for fire safety compliance
- Laser-optimized for minimal signal dispersion
- Physical Contact (PC) connectors ensuring low insertion loss
- Stranded design for installation flexibility
- Compatible with network devices, patch panels, and media converters
- Lifetime warranty for long-term reliability
Specifications
| Specifications | |
|---|---|
| Manufacturer | AddOn |
| Manufacturer Part Number | ADD-MPOMPO-50M5OM4M |
| Brand Name | AddOn |
| Product Name | Fiber Optic Duplex Patch Network Cable |
| Packaged Quantity | 1.0 |
| Product Type | Network Cable |
| Technical Information | |
| Cable Type | Fiber Optic |
| Cable Characteristic | Patch Cable |
| Fiber Optic Mode | Multi-mode |
| Fiber Optic Cable Core/Cladding Specification | 50/125 µm |
| Fiber Category | OM4 |
| Cable Length | 164 ft (50 m) |
| Connector Type on First End | MPO Network - Male |
| Connector Gender on First End | Male |
| Connector on First End Details | 1 x MPO Network - Male |
| Connector Type on Second End | MPO Network - Male |
| Connector Gender on Second End | Male |
| Connector on Second End Details | 1 x MPO Network - Male |
| Shielding | No |
| Jacket Type | OFNR,Riser,LSZH |
| Device Supported | Network Device,Patch Panel,Media Converter,Router,Hub,Switch |
| Features | Laser-optimized,Physical Contact (PC),Stranded |
| Physical Characteristics | |
| Color Family | Green |
| Product Color | Aqua |
| Weight (Approximate) | 1.20 lb (544.31 g) |
| Miscellaneous | |
| Country of Origin | United States |
| TAA Compliant | No |
| Warranty | |
| Limited Warranty | Lifetime |
FAQ
What is the maximum data rate supported by this OM4 fiber patch cable?
This OM4 multi-mode fiber patch cable supports data rates up to 100 Gb/s over its 164 ft (50 m) length. OM4 fiber is laser-optimized for high-bandwidth applications including 10G, 40G, and 100G Ethernet, as well as Fibre Channel and InfiniBand protocols. The 50/125 µm core/cladding specification ensures efficient light transmission with low attenuation, making it suitable for data center and enterprise backbone connections.
Can this cable be used for outdoor installations?
This cable is designed for indoor use with an OFNR riser-rated LSZH jacket, which is approved for vertical runs between floors in buildings. It is not rated for direct outdoor exposure or burial. For outdoor applications, a cable with appropriate outdoor-rated jacketing and moisture protection would be required. The LSZH material reduces smoke and halogen emissions in fire situations, enhancing safety in enclosed indoor spaces.
What devices are compatible with the MPO/UPC male connectors?
The MPO/UPC male connectors are compatible with MPO adapters, patch panels, media converters, and network equipment featuring MPO interfaces. They work with switches, routers, hubs, and transceivers that use MPO connections for high-density fiber links. The UPC polish ensures low back reflection, making it suitable for use with single-mode or multi-mode systems that require precise optical alignment.
How does the 12-strand configuration benefit network deployments?
The 12-strand configuration allows multiple fiber channels within a single cable, reducing the number of individual cables needed for high-capacity links. This simplifies cable management, saves space in racks and conduits, and lowers installation time. It is particularly useful for trunking applications in data centers where MPO interfaces aggregate traffic for 40G and 100G Ethernet, supporting parallel optics technologies.
What does the OFNR riser-rated jacket mean for installation?
The OFNR riser-rated jacket indicates the cable meets fire safety standards for vertical installations in riser spaces between floors. OFNR stands for Optical Fiber Non-Conductive Riser, meaning the cable can be run in vertical shafts without conduit in most building codes. The LSZH material produces low smoke and zero halogen when burned, reducing toxic fumes and corrosion risks in fire events, enhancing safety in occupied buildings.
Is this cable TAA compliant for government purchases?
No, this cable is not TAA compliant. It is manufactured in the United States but does not meet the Trade Agreements Act requirements for federal government procurement. For TAA-compliant purchases, alternative products that adhere to specific sourcing regulations would be needed. The cable remains suitable for commercial, enterprise, and state/local government use where TAA compliance is not mandated.
