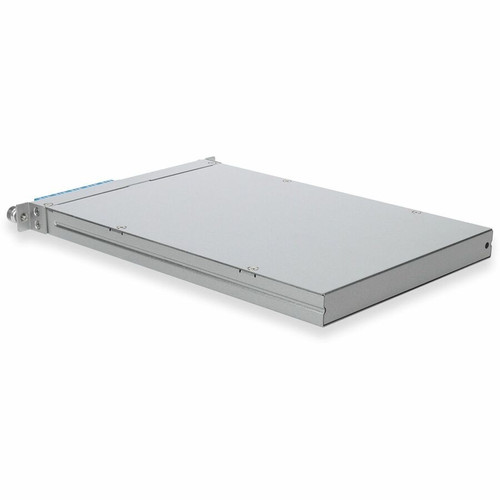

AddOn CWDM-MUX-8X1S-AO 8-Channel CWDM Simplex Multiplexer Cartridge - 1470-1610nm Wavelengths - LC Connectors - Single-Mode Fiber
Business volume discounts
Technical guidance
Preparation & staging
QC · ON · AB · BC
Product Features
Technical Overview
This CWDM multiplexer cartridge operates on the principle of wavelength division multiplexing, where each channel is assigned a specific wavelength to transmit data independently over the same fiber. The device supports single-mode fiber, which offers low attenuation and high bandwidth over long distances, making it ideal for backbone and metropolitan area network links.
The cartridge features LC connectors, known for their small form factor and reliable performance in high-density patching environments. Its 19-inch rack-mount design aligns with standard networking equipment, facilitating easy integration into existing infrastructure.
Key Product Advantages
The AddOn CWDM multiplexer cartridge delivers significant advantages for network scalability and efficiency. By multiplexing eight wavelengths onto one fiber, it maximizes existing fiber resources, reducing the need for additional cabling and lowering overall deployment costs.
High-Density Integration
The compact cartridge design supports up to eight channels in a 1.5-inch height, optimizing rack space in data centers and network closets.
- 19-inch width for standard racks
- Low-profile form factor
Reliable Optical Performance
Built for single-mode fiber with LC connectors, the cartridge ensures low insertion loss and high signal integrity across all supported wavelengths.
- LC connector reliability
- Single-mode compatibility
Deployment / Use Cases
This CWDM multiplexer cartridge is suited for various optical networking scenarios where bandwidth expansion and fiber optimization are critical. It enables efficient wavelength management in environments requiring high data throughput and scalable infrastructure.
Common use cases include data center interconnects, where it consolidates multiple data streams over long-distance single-mode fiber links; enterprise network backbones, enhancing capacity for video, voice, and data services; and telecommunications networks, supporting CWDM systems in metropolitan and access networks.
Physical Profile
The cartridge measures 19 inches in width, 8 inches in depth, and 1.5 inches in height, with a weight of approximately 4.60 pounds. Its standard 19-inch rack-mount form factor ensures seamless integration into network racks and enclosures, while the compact height allows for high-density installations in space-constrained environments.
- Width
- 19" (482.60 mm)
- Depth
- 8" (203.20 mm)
- Height
- 1.50" (38.10 mm)
- Weight
- 4.60 lb (2086.52 g)
Highlights
- 8-channel CWDM simplex multiplexer cartridge for optical networking
- Supports wavelengths: 1470nm, 1490nm, 1510nm, 1530nm, 1550nm, 1570nm, 1590nm, 1610nm
- LC connectors for reliable, high-density fiber connections
- Single-mode fiber compatibility for long-distance transmission
- 19-inch rack-mount design for standard network infrastructure
- Compact 1.5-inch height optimizes rack space utilization
- Lifetime limited warranty for long-term reliability
- RoHS and WEEE compliant for environmental responsibility
Specifications
| Specifications | |
|---|---|
| Manufacturer | AddOn |
| Manufacturer Part Number | CWDM-MUX-8X1S-AO |
| Brand Name | AddOn |
| Product Name | Multiplexer Module |
| Product Type | Multiplexer Module |
| Packaged Quantity | 1 |
| Technical Information | |
| Application/Usage | Data Networking,Optical Network |
| Interfaces/Ports | |
| Connector Type | LC |
| Media & Performance | |
| Media Type Supported | Optical Fiber |
| Fiber Mode Supported | Single-mode |
| Physical Characteristics | |
| Height | 1.50" (38.10 mm) |
| Width | 19" (482.60 mm) |
| Depth | 8" (203.20 mm) |
| Weight (Approximate) | 4.60 lb (2086.52 g) |
| Miscellaneous | |
| Country of Origin | China |
| TAA Compliant | No |
| Environmentally Friendly | Yes |
| Environmental Compliance | Restriction of Hazardous Substances (RoHS),Waste Electrical and Electronic Equipment Directive (WEEE) |
| Warranty | |
| Limited Warranty | Lifetime |
FAQ
What is the purpose of this CWDM multiplexer cartridge?
This cartridge multiplexes eight optical signals at different wavelengths onto a single fiber strand, enabling efficient bandwidth utilization and reducing fiber infrastructure costs in data networking and optical network applications.
What wavelengths does this multiplexer support?
It supports eight wavelengths: 1470nm, 1490nm, 1510nm, 1530nm, 1550nm, 1570nm, 1590nm, and 1610nm, covering a range suitable for coarse wavelength division multiplexing in single-mode fiber systems.
What type of fiber and connectors are compatible?
The cartridge is compatible with single-mode fiber and uses LC connectors, which are standard for high-density optical patching and provide reliable performance in networking environments.
