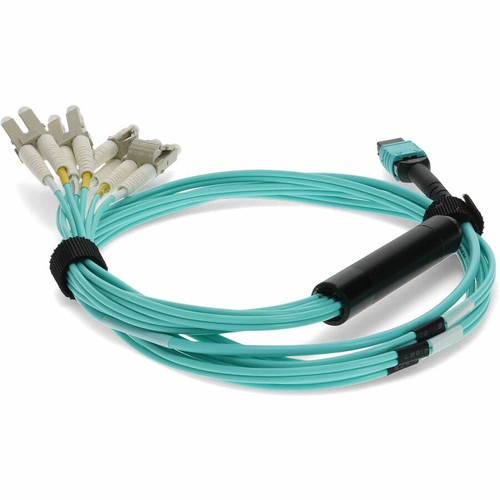

AddOn ADD-MPO-4LC8M5OM3 MPO/UPC to 4xLC/UPC Duplex Fanout Cable - 26. 2 ft (8 m) Aqua OM3 Riser-Rated 8-Strand Fiber Optic
Business volume discounts
Technical guidance
Preparation & staging
QC · ON · AB · BC
Product Features
Technical Overview
This fanout cable utilizes OM3 multi-mode fiber with 50/125 µm core/cladding specifications, optimized for 850 nm VCSEL laser sources to maintain signal integrity at 40 Gbit/s speeds. The MPO female connector employs Physical Contact (PC) polishing for low insertion loss and high return loss, while the eight LC male connectors feature stranded construction for durability in frequent connection cycles.
The cable's riser-rated OFNR jacket provides flame-retardant properties suitable for use in plenum spaces and vertical risers without conduit. With no shielding required for typical data center environments, this cable offers straightforward deployment while maintaining compatibility with standard fiber optic cleaning and inspection procedures.
Key Product Advantages
This fanout cable simplifies network architecture by reducing the need for multiple individual patch cables when connecting MPO trunk lines to LC-based equipment. The pre-terminated design ensures consistent performance without field termination variability, while the laser-optimized fiber maintains signal quality for high-speed applications.
High-Density Connectivity
Consolidates eight LC connections into a single MPO interface, saving space in crowded patch panels and network cabinets.
- Reduces cable clutter
- Simplifies cable management
- Maintains organized infrastructure
Performance Assurance
Factory-terminated with PC-polished connectors and laser-optimized OM3 fiber to ensure reliable 40 Gbit/s operation without signal degradation.
- Low insertion loss
- High return loss
- Consistent throughput
Deployment Flexibility
Riser-rated jacket allows installation in vertical runs between floors, while aqua color provides quick visual identification of OM3 multi-mode fiber.
- Plenum-compliant
- Easy identification
- Vertical installation capable
Deployment / Use Cases
This MPO to LC fanout cable is ideal for data center environments where high-density MPO backbone connections need distribution to individual LC ports on switches, routers, or media converters. The 26.2 ft (8 m) length provides sufficient reach for typical rack-to-rack or within-rack connections while maintaining signal integrity.
Common applications include connecting MPO trunk cables from fiber distribution frames to LC ports on network equipment, extending 40G Ethernet links to multiple 10G ports, and integrating with existing LC-based infrastructure during network upgrades or expansions. The cable supports patch panels, hubs, switches, media converters, routers, and other network devices requiring reliable fiber optic connectivity.
Data Center Infrastructure
Connect MPO backbone cables to LC ports on top-of-rack switches or aggregation switches in high-density server environments.
Network Upgrades
Bridge new MPO-based 40G infrastructure with existing LC-terminated equipment during phased network modernization projects.
Highlights
- Converts 1 MPO female to 8 LC male connectors for high-density connectivity
- 26.2 ft (8 m) length provides flexible deployment in rack environments
- OM3 multi-mode fiber supports data transfer rates up to 40 Gbit/s
- Riser-rated OFNR jacket compliant for vertical installations
- 50/125 µm laser-optimized fiber core ensures reliable performance
- Aqua color provides quick visual identification as OM3 fiber
- Physical Contact (PC) polishing minimizes insertion loss
- Compatible with patch panels, switches, media converters, and routers
- Stranded connector construction for durability
- Manufactured in the United States with lifetime warranty
Specifications
| Specifications | |
|---|---|
| Manufacturer | AddOn |
| Manufacturer Part Number | ADD-MPO-4LC8M5OM3 |
| Brand Name | AddOn |
| Product Name | Fiber Optic Duplex Patch Network Cable |
| Packaged Quantity | 1.0 |
| Product Type | Network Cable |
| Technical Information | |
| Cable Type | Fiber Optic |
| Cable Characteristic | Fan-out Cable |
| Fiber Optic Mode | Multi-mode |
| Fiber Optic Cable Core/Cladding Specification | 50/125 µm |
| Fiber Category | OM3 |
| Cable Length | 26.2 ft (8 m) |
| Connector Type on First End | MPO Network - Female |
| Connector Gender on First End | Female |
| Connector on First End Details | 1 x MPO Network - Female |
| Connector Type on Second End | LC Network - Male |
| Connector Gender on Second End | Male |
| Connector on Second End Details | 8 x LC Network - Male |
| Shielding | No |
| Jacket Type | Riser |
| Device Supported | Patch Panel,Hub,Switch,Media Converter,Router,Network Device |
| Data Transfer Rate | 40 Gbit/s |
| Features | Physical Contact (PC),Laser-optimized,Stranded |
| Physical Characteristics | |
| Color Family | Green |
| Product Color | Aqua |
| Miscellaneous | |
| Country of Origin | United States |
| TAA Compliant | No |
| Warranty | |
| Limited Warranty | Lifetime |
FAQ
What devices is this fanout cable compatible with?
This MPO to LC fanout cable is compatible with patch panels, hubs, switches, media converters, routers, and other network devices that support MPO or LC fiber optic connections. The MPO female connector interfaces with MPO male trunk cables or MPO ports on equipment, while the eight LC male connectors connect to standard LC ports commonly found on network switches, transceivers, and media converters.
What is the maximum data transfer rate supported?
This cable supports data transfer rates up to 40 Gbit/s when used with compatible equipment and proper network configuration. The OM3 multi-mode fiber with 50/125 µm core is laser-optimized for 850 nm VCSEL sources, making it suitable for 40G Ethernet applications including 40GBASE-SR4 implementations over multi-mode fiber infrastructure.
Can this cable be used in vertical riser installations?
Yes, this cable features a riser-rated OFNR jacket that complies with vertical installation requirements for runs between floors without conduit. The flame-retardant properties make it suitable for use in plenum spaces and riser applications where fire safety standards must be maintained, providing deployment flexibility in multi-story buildings or data centers.
What does the aqua color indicate?
The aqua color indicates OM3 multi-mode fiber, which is the industry standard color coding for this fiber category. This visual identification helps network technicians quickly distinguish OM3 cables from other fiber types during installation, maintenance, or troubleshooting, reducing the risk of incorrect fiber type deployment in mixed-fiber environments.
How many fiber strands does this cable contain?
This fanout cable contains eight fiber strands, corresponding to the eight LC male connectors on one end. The single MPO female connector on the opposite end consolidates these eight strands into a single interface, following the standard MPO configuration for 8-fiber applications. Each strand is 50/125 µm OM3 multi-mode fiber capable of supporting the specified data rates.
What warranty does this product include?
This AddOn fiber optic cable includes a lifetime limited warranty from the manufacturer. The warranty covers defects in materials and workmanship for the product's usable life, providing assurance of quality and reliability for network infrastructure investments. The cable is manufactured in the United States, though it is not TAA compliant for government procurement requiring that specific certification.
