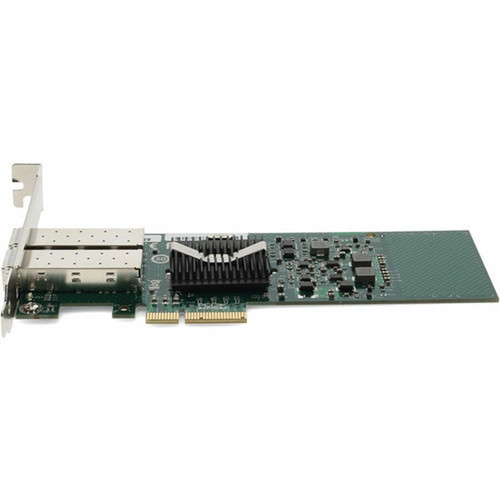

AddOn ADD-PCIE-2SFP Dual-Port SFP Gigabit Ethernet Card - PCIe 2.0 x 4 - Intel 82576 Chipset - 8 Gbit/s
Business volume discounts
Technical guidance
Preparation & staging
QC · ON · AB · BC
Product Features
Technical Overview
This network interface card leverages a PCI Express 2.0 x4 host interface, providing ample bandwidth for dual-port Gigabit Ethernet operation without bottlenecking system performance. The Intel 82576 controller chipset delivers hardware-accelerated packet processing, reducing CPU overhead and ensuring consistent throughput.
Each of the two ports utilizes an SFP (Small Form-factor Pluggable) slot, allowing network administrators to choose the appropriate SFP transceiver module for their specific fiber optic cable requirements. The card supports fiber optic cables with core/cladding specifications of 50/125 µm, 62.5/50 µm, and 9 µm, providing flexibility across common fiber standards.
Relevant factors for this section include Chipset Manufacturer, Chipset Model, Host Interface, Total Number of Ports. When those points are considered together, they give buyers a clearer picture of how the product is equipped, how it fits into deployment, and what kind of day-to-day role it is meant to support.
Key Product Advantages
The ADD-PCIE-2SFP combines enterprise-grade networking capabilities with a straightforward plug-and-play installation, making it an ideal solution for expanding network connectivity in various computing environments.
Dual-Port Efficiency
Add two independent Gigabit Ethernet connections using only one PCI Express slot, maximizing expansion slot utilization while providing network redundancy or segmentation capabilities.
- Single-slot dual-port design
- Independent port operation
- Reduced slot consumption
Fiber Optic Reliability
Optical fiber support enables longer cable runs with immunity to electromagnetic interference, making this card suitable for connecting equipment across different rooms, floors, or buildings.
- Extended distance connectivity
- EMI-resistant transmission
- Superior signal integrity
Proven Intel Architecture
The Intel 82576 chipset provides robust driver support across multiple operating systems and delivers consistent performance with hardware acceleration features.
- Wide OS compatibility
- Hardware acceleration
- Reliable packet processing
Deployment / Use Cases
This dual-port SFP Gigabit Ethernet card serves as a versatile networking solution for environments where additional network interfaces are required or where fiber optic connectivity is preferred over traditional copper cabling.
In server deployments, the card can provide dedicated network connections for different services or VLANs, or serve as a failover interface for critical applications. For workstations and PCs in professional settings, it enables direct fiber connections to network switches or other equipment, particularly in audio/video production, engineering, or scientific computing environments where large data transfers are common.
Server Network Expansion
Add redundant network interfaces to servers for load balancing, failover configurations, or segregating management traffic from production data traffic.
Workstation Fiber Connectivity
Connect professional workstations directly to fiber optic network infrastructure for high-bandwidth applications like media editing, CAD/CAM work, or data analysis.
Physical Profile
The ADD-PCIE-2SFP features a standard plug-in card form factor with dimensions of 4.20 inches in height, 0.80 inches in width, and 3.70 inches in depth. Weighing just 1.60 ounces, it maintains a compact profile suitable for most desktop and server chassis. The card includes both half-height and full-height brackets in the package, ensuring compatibility with various computer case configurations from small form factor systems to full-size towers and servers.
- Width
- 0.80" (20.32 mm)
- Depth
- 3.70" (93.98 mm)
- Height
- 4.20" (106.68 mm)
- Weight
- 1.60 oz (45.36 g)
What's in the Box
The package includes everything needed for immediate installation and operation of the network interface card.
Highlights
- Dual SFP ports for two independent Gigabit Ethernet connections
- Intel 82576 chipset ensures reliable performance and broad compatibility
- PCI Express 2.0 x4 interface provides ample bandwidth for dual-port operation
- Supports both multi-mode and single-mode fiber optic cables
- Maximum data transfer rate of 8 Gbit/s for high-throughput networking
- Includes both half-height and full-height brackets for flexible installation
- Optical fiber support enables longer-distance, interference-free connections
- Lifetime limited warranty for long-term peace of mind
- Compact form factor fits most desktop and server chassis
- 1000Base-LX and 1000Base-SX network technology support
Specifications
| Specifications | |
|---|---|
| Manufacturer | AddOn |
| Manufacturer Part Number | ADD-PCIE-2SFP |
| Brand Name | AddOn |
| Product Model | ADD-PCIE-2SFP |
| Product Name | 1Gbs Dual Open SFP Port PCIe 2.0 x4 Network Interface Card |
| Packaged Quantity | 1 |
| Product Type | Gigabit Ethernet Card |
| Technical Information | |
| Chipset Manufacturer | Intel |
| Chipset Model | 82576 |
| Interfaces/Ports | |
| Host Interface | PCI Express 2.0 x4 |
| Total Number of Ports | 2 |
| I/O Expansions | |
| Total Number of Expansion Slots | 2 |
| Expansion Slot Type | SFP |
| Media & Performance | |
| Media Type Supported | Optical Fiber |
| Fiber Optic Cable Core/Cladding Specification | 50/125 µm,62.5/50 µm,9 µm |
| Fiber Mode Supported | Multi-mode,Single-mode |
| Maximum Data Transfer Rate | 8 Gbit/s |
| Network & Communication | |
| Network Technology | 1000Base-LX,1000Base-SX |
| Physical Characteristics | |
| Form Factor | Plug-in Card |
| Height | 4.20" (106.68 mm) |
| Width | 0.80" (20.32 mm) |
| Depth | 3.70" (93.98 mm) |
| Weight (Approximate) | 1.60 oz (45.36 g) |
| Miscellaneous | |
| Package Contents | 1Gbs Dual Open SFP Port PCIe 2.0 x4 Network Interface Card Half-height and full-height brackets |
| Device Supported | PC |
| Country of Origin | China |
| Warranty | |
| Limited Warranty | Lifetime |
FAQ
What type of SFP modules are compatible with this network card?
The ADD-PCIE-2SFP supports standard SFP (Small Form-factor Pluggable) transceiver modules that are compatible with Gigabit Ethernet over fiber optic cables. You can use either multi-mode or single-mode SFP modules depending on your fiber cable type and distance requirements. The card works with SFP modules supporting 1000Base-LX for long-wavelength (1310nm) single-mode fiber and 1000Base-SX for short-wavelength (850nm) multi-mode fiber applications.
What is the maximum data transfer rate of this Ethernet card?
This dual-port Gigabit Ethernet card has a maximum data transfer rate of 8 Gbit/s. This represents the aggregate bandwidth available across both ports when operating simultaneously at full Gigabit Ethernet speed. Each individual port supports standard Gigabit Ethernet rates of 1000 Mbps, with the PCI Express 2.0 x4 host interface providing sufficient bandwidth to handle traffic from both ports without bottlenecking.
Does this card include both half-height and full-height brackets?
Yes, the ADD-PCIE-2SFP package includes both half-height (low-profile) and full-height mounting brackets. This dual-bracket inclusion ensures compatibility with various computer chassis types, from compact small form factor systems that require half-height brackets to standard desktop towers and servers that use full-height brackets. You can select the appropriate bracket during installation based on your specific computer case requirements.
What operating systems are supported by this network interface card?
While specific driver availability depends on the operating system version, the Intel 82576 chipset at the heart of this card has broad driver support across major operating systems. This typically includes various versions of Windows (such as Windows 10 and 11), Linux distributions, and other server operating systems. For the most current driver information and compatibility details, check the manufacturer's website or your operating system's hardware compatibility list.
What is the advantage of using fiber optic connectivity instead of copper?
Fiber optic connectivity offers several advantages over traditional copper Ethernet, including longer maximum cable distances (up to several kilometers with single-mode fiber), complete immunity to electromagnetic interference (EMI), and enhanced security since fiber cables don't emit detectable signals. This makes the ADD-PCIE-2SFP ideal for connecting equipment across different rooms, floors, or buildings, or in environments with significant electrical noise that could degrade copper cable performance.
Can this card be used in servers for network redundancy?
Absolutely. The dual-port design of the ADD-PCIE-2SFP makes it well-suited for server network redundancy configurations. You can configure the two ports for failover operation, where if one network connection fails, traffic automatically switches to the second port. Alternatively, you can use the ports for load balancing to distribute network traffic across both connections, or dedicate each port to different network segments or VLANs for traffic separation in virtualized server environments.
