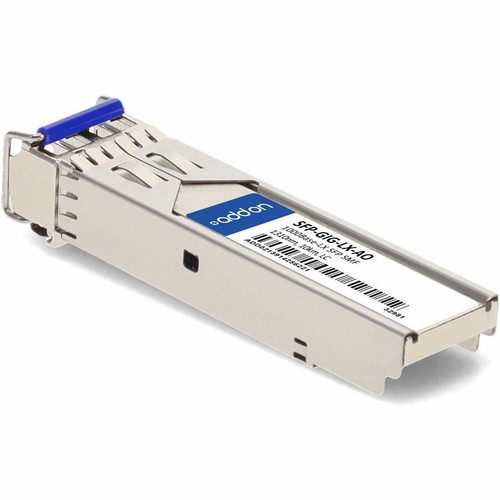

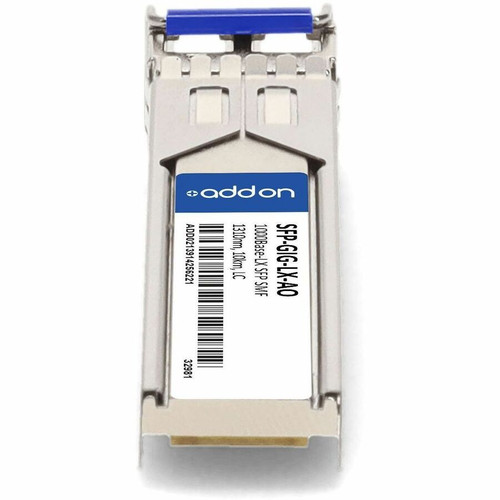

AddOn SFP-GIG-LX-AO 1000Base-LX SFP Transceiver - 1. 25Gb/s - LC Duplex - 1310nm - 10km SMF - DOM - Alcatel-Lucent Nokia Compatible
Business volume discounts
Technical guidance
Preparation & staging
QC · ON · AB · BC
Product Features
Technical Overview
This SFP transceiver operates on a single +3.3V power supply with low power dissipation under 800mW, contributing to energy-efficient network deployments. It supports both singlemode and multimode fiber media, offering flexibility for various network topologies. The module is RoHS compliant and lead-free, meeting environmental standards for commercial use.
The transceiver's compact dimensions—0.40" height, 0.60" width, and 2.20" depth—allow for high-density installations in switches and routers. Its hot-pluggable design enables easy upgrades and maintenance without disrupting network operations. Built to withstand commercial and optional industrial temperature ranges, it ensures reliability in diverse operating conditions.
This section brings together practical product details such as Application/Usage, Total Number of Ports, Connector Type, Interfaces/Ports Details, so buyers can judge configuration, deployment fit, and day-to-day suitability with less guesswork.
Key Product Advantages
The AddOn SFP-GIG-LX-AO combines performance, compatibility, and durability for demanding network applications. Its Multi Source Agreement (MSA) compliance ensures interoperability with Alcatel-Lucent Nokia OmniSwitch 9000 series and other MSA-compliant devices, reducing compatibility concerns in multi-vendor environments.
Long-Distance Performance
Achieves up to 10km reach on 9/125μm singlemode fiber, enabling extended network segments without signal degradation.
- 1310nm FP laser for stable transmission
- Low dispersion over SMF
Enhanced Monitoring
DOM support provides real-time diagnostics for laser bias current, temperature, and optical power, aiding in proactive network management.
- Real-time performance data
- Simplifies troubleshooting
Deployment / Use Cases
This transceiver is suited for a range of data networking scenarios where Gigabit Ethernet over fiber is required. Its 1000Base-LX technology makes it effective for backbone connections, inter-building links, and high-speed data transfers in enterprise networks.
Common deployments include connecting switches in data centers, extending network reach across campuses, and linking network equipment in environments with EMI concerns. The module's compatibility with Alcatel-Lucent Nokia OmniSwitch 9000 series makes it a reliable choice for upgrading or expanding existing network infrastructures without replacing core hardware.
This section brings together practical product details such as Application/Usage, Total Number of Ports, Connector Type, Interfaces/Ports Details, so buyers can judge configuration, deployment fit, and day-to-day suitability with less guesswork.
Physical Profile
The transceiver features a standard SFP form factor with a metal enclosure that enhances durability and reduces EMI. Its compact design allows for high-port-density installations in network switches and routers. The module is hot-pluggable, supporting easy installation and replacement without powering down equipment.
The physical profile is practical for deployment planning because the dimensions and weight are clearly defined: 0.40" (10.16 mm), 0.60" (15.24 mm), 2.20" (55.88 mm), 6.40 oz (181.44 g). This helps confirm rack, shelf, desk, or cabinet fit before installation.
- Width
- 0.60" (15.24 mm)
- Depth
- 2.20" (55.88 mm)
- Height
- 0.40" (10.16 mm)
- Weight
- 6.40 oz (181.44 g)
Highlights
- 1000Base-LX SFP transceiver for Gigabit Ethernet up to 1.25Gb/s
- LC duplex connector for secure fiber optic connections
- 1310nm FP laser transmitter with up to 10km reach on singlemode fiber
- DOM (Digital Optical Monitoring) for real-time performance diagnostics
- Hot-pluggable SFP footprint for easy installation and upgrades
- Metal enclosure reduces electromagnetic interference (EMI)
- Low power dissipation (<800mW) with single +3.3V supply
- RoHS compliant and lead-free for environmental safety
- Compatible with Alcatel-Lucent Nokia OmniSwitch 9000 series
- Supports both singlemode and multimode fiber media
Specifications
| Specifications | |
|---|---|
| Manufacturer | AddOn |
| Manufacturer Part Number | SFP-GIG-LX-AO |
| Brand Name | AddOn |
| Product Model | SFP-GIG-LX-AO |
| Product Name | 1000Base-LX SFP Transceiver Module |
| Product Type | SFP (mini-GBIC) |
| Technical Information | |
| Application/Usage | Data Networking |
| Interfaces/Ports | |
| Total Number of Ports | 1 |
| Connector Type | LC |
| Interfaces/Ports Details | 1 x LC Duplex 1000Base-LX |
| Media & Performance | |
| Media Type Supported | Optical Fiber |
| Fiber Mode Supported | Multi-mode,Single-mode |
| Ethernet Technology | Gigabit Ethernet |
| Network Technology | 1000Base-LX |
| Physical Characteristics | |
| Height | 0.40" (10.16 mm) |
| Width | 0.60" (15.24 mm) |
| Depth | 2.20" (55.88 mm) |
| Weight (Approximate) | 6.40 oz (181.44 g) |
| Miscellaneous | |
| Compatibility | Multi Source Agreement Compliant Alcatel OmniSwitch 9000 |
| Country of Origin | United States |
User Manual
FAQ
What is the maximum data rate supported by this SFP transceiver?
The AddOn SFP-GIG-LX-AO supports data rates up to 1.25Gb/s, aligning with Gigabit Ethernet 1000Base-LX standards. This enables high-speed data transfers for network backbone and inter-device connections.
What type of fiber and distance does this transceiver support?
This transceiver supports both singlemode and multimode fiber. On 9/125μm singlemode fiber, it achieves a reach of up to 10 kilometers, making it suitable for long-distance network segments.
Does this SFP module include monitoring capabilities?
Yes, it features DOM (Digital Optical Monitoring), which provides real-time diagnostics on parameters like laser bias current, temperature, and optical power. This aids in network performance tracking and troubleshooting.
What devices is this transceiver compatible with?
The module is Multi Source Agreement (MSA) compliant and specifically compatible with Alcatel-Lucent Nokia OmniSwitch 9000 series. It should work with other MSA-compliant SFP ports, but always verify compatibility with your specific network equipment.
What are the power requirements for this SFP transceiver?
It operates on a single +3.3V power supply with low power dissipation under 800mW. This energy-efficient design helps reduce overall power consumption in network deployments.
Is this transceiver hot-pluggable?
Yes, it features a hot-pluggable SFP footprint, allowing installation or removal without powering down the network device. This minimizes downtime during upgrades or maintenance.
