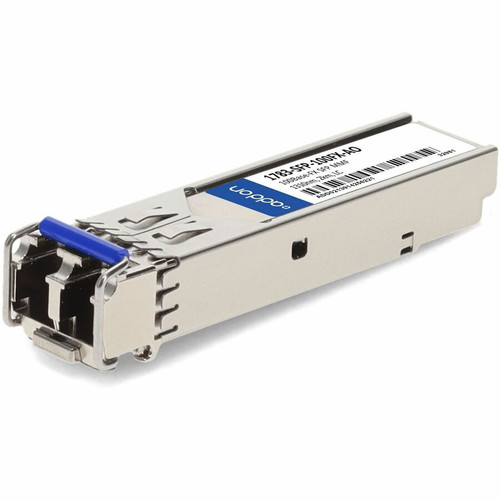

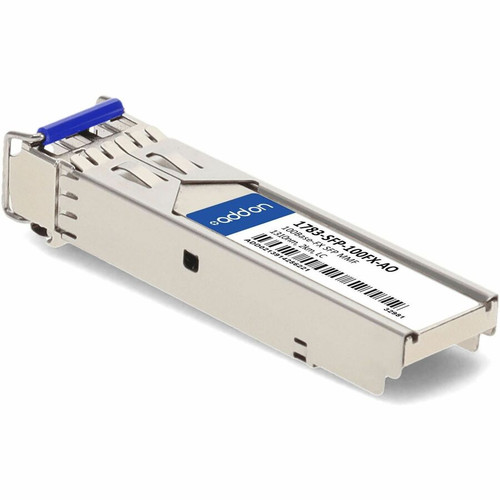

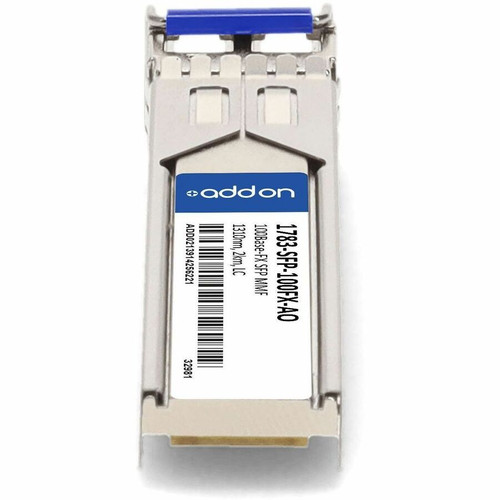

AddOn 1783-SFP-100FX-AO Compatible TAA 100Base-FX SFP Transceiver - MMF - 1310nm - 2km - LC - DOM - 100% Application Tested
Business volume discounts
Technical guidance
Preparation & staging
QC · ON · AB · BC
Product Features
Technical Overview
This SFP transceiver operates on 100Base-FX Fast Ethernet technology, providing a maximum data transfer rate of 100 Mbit/s. It uses multimode optical fiber with an LC duplex connector, ensuring standard compatibility and easy integration into existing fiber infrastructure. The 1310nm wavelength optimizes performance for short to medium-distance multimode applications.
The module supports a maximum distance of 2 km (1.24 miles), making it ideal for campus, building, or industrial network links. Its hot-swappable form factor allows for easy installation and replacement without network downtime, while DOM capabilities enable monitoring of optical power, temperature, and voltage for proactive maintenance.
This section brings together practical product details such as Application/Usage, Total Number of Ports, Connector Type, Interfaces/Ports Details, so buyers can judge configuration, deployment fit, and day-to-day suitability with less guesswork.
Key Product Advantages
This transceiver offers several advantages for network deployments requiring reliable fiber connectivity. Its compatibility with Allen-Bradley 1783-SFP100FX equipment ensures seamless integration into industrial automation and control systems, while 100% application testing guarantees performance in real-world scenarios.
Industrial Compatibility
Specifically tested for Allen-Bradley 1783-SFP100FX compatibility, making it a trusted choice for industrial networking applications where equipment interoperability is critical.
- TAA compliant
- 100% application tested
- MSA standards
Monitoring & Maintenance
DOM support provides real-time monitoring of optical parameters, enabling proactive network management and reducing troubleshooting time during deployments.
- Real-time performance data
- Proactive maintenance
- Reduced downtime
Deployment / Use Cases
This SFP transceiver is designed for network segments requiring Fast Ethernet over fiber optic cabling. Its 2 km reach and multimode compatibility make it suitable for connecting network switches, routers, or industrial controllers across buildings or within large facilities.
Common use cases include industrial automation networks, enterprise campus links, and any environment where electrical isolation, noise immunity, or longer distance coverage than copper Ethernet is needed. The hot-swappable design allows for flexible deployment in live networks without service interruption.
Industrial Networks
Ideal for Allen-Bradley and other industrial control systems where reliable fiber connectivity supports automation, monitoring, and data acquisition across factory floors or remote sites.
Enterprise Connectivity
Suitable for connecting network equipment in office buildings, campuses, or data centers where multimode fiber infrastructure is already deployed for 100Base-FX links.
Physical Profile
The transceiver features a compact hot-swappable SFP form factor with dimensions of 0.60" (15.24 mm) width, 2.20" (55.88 mm) depth, and 0.40" (10.16 mm) height. Weighing approximately 6.40 oz (181.44 g), its small size allows high-density deployment in network switches and media converters. The standard SFP footprint ensures compatibility with any MSA-compliant SFP slot.
- Width
- 0.60" (15.24 mm)
- Depth
- 2.20" (55.88 mm)
- Height
- 0.40" (10.16 mm)
- Weight
- 6.40 oz (181.44 g)
Highlights
- Compatible with Allen-Bradley 1783-SFP100FX equipment
- 100Base-FX Fast Ethernet over multimode fiber
- LC duplex connector for standard fiber patch cables
- 1310nm wavelength optimized for multimode applications
- 2 km (1.24 mile) maximum reach
- DOM (Digital Optical Monitoring) for real-time performance tracking
- Hot-swappable SFP form factor for easy installation
- MSA compliant for broad interoperability
- RoHS environmental compliance
- Lifetime warranty for long-term reliability
Specifications
| Specifications | |
|---|---|
| Manufacturer | AddOn |
| Manufacturer Part Number | 1783-SFP-100FX-AO |
| Brand Name | AddOn |
| Product Model | 1783-SFP100FX-AO |
| Product Name | 1783-SFP-100FX-AO SFP Module |
| Product Type | SFP |
| Technical Information | |
| Application/Usage | Optical Network |
| Interfaces/Ports | |
| Total Number of Ports | 1 |
| Connector Type | LC |
| Interfaces/Ports Details | 1 x LC 100Base-FX Network |
| Media & Performance | |
| Media Type Supported | Optical Fiber |
| Fiber Mode Supported | Multi-mode |
| Ethernet Technology | Fast Ethernet |
| Network Technology | 100Base-FX |
| Maximum Distance Supported | 2 km (1.24 Mile) |
| Maximum Data Transfer Rate | 100 Mbit/s |
| Physical Characteristics | |
| Form Factor | Hot-swappable |
| Height | 0.40" (10.16 mm) |
| Width | 0.60" (15.24 mm) |
| Depth | 2.20" (55.88 mm) |
| Weight (Approximate) | 6.40 oz (181.44 g) |
| Miscellaneous | |
| Compatibility | MSA Compliant |
| Country of Origin | United States |
| Environmentally Friendly | Yes |
| Environmental Compliance | Restriction of Hazardous Substances (RoHS) |
| Warranty | |
| Limited Warranty | Lifetime |
User Manual
FAQ
What is this SFP transceiver compatible with?
This AddOn 1783-SFP-100FX-AO transceiver is specifically compatible with Allen-Bradley 1783-SFP100FX equipment. It is 100% application tested to ensure reliable performance in those industrial network environments. The module is also MSA compliant, meaning it should work in any standard SFP slot that supports 100Base-FX multimode optics.
What type of fiber and connector does this transceiver use?
This transceiver uses multimode optical fiber with an LC duplex connector. The LC connector is the industry standard for SFP modules, providing a small form factor and reliable connection. It operates at a 1310nm wavelength, which is typical for multimode fiber applications over distances up to 2 km.
What is the maximum distance supported?
The maximum supported distance is 2 km (approximately 1.24 miles) over multimode fiber. This reach makes it suitable for connecting network devices across buildings, within campuses, or in industrial settings where longer distances than copper Ethernet are required while maintaining Fast Ethernet speeds.
Does this transceiver support monitoring capabilities?
Yes, this transceiver features DOM (Digital Optical Monitoring), which allows real-time monitoring of optical parameters such as transmit power, receive power, temperature, and voltage. This enables network administrators to proactively manage link health, troubleshoot issues, and maintain optimal performance without physical inspection.
Is this transceiver hot-swappable?
Yes, it features a hot-swappable SFP form factor. This means you can install or replace the module without powering down the network switch or device, minimizing downtime during maintenance or upgrades. The module is designed to be inserted and removed safely while the equipment is operational.
What environmental standards does this transceiver meet?
This transceiver is RoHS (Restriction of Hazardous Substances) compliant, meaning it meets environmental regulations by limiting the use of specific hazardous materials. It is also manufactured in the United States and comes with a lifetime warranty, providing long-term reliability and support for your network investment.
