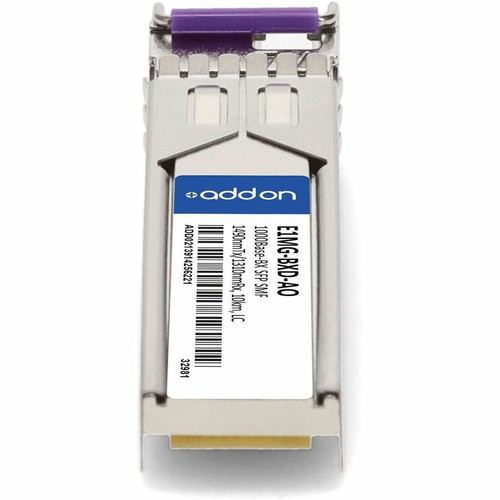

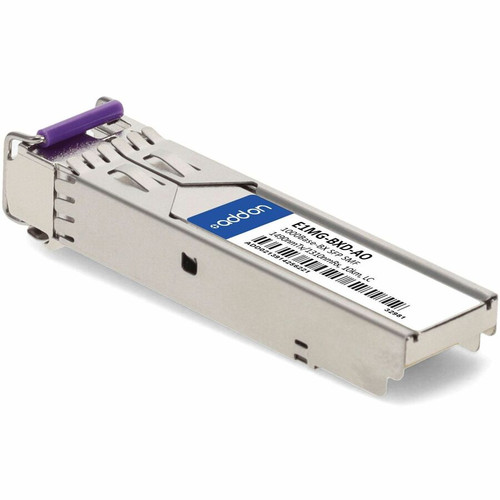

AddOn E1MG-BXD-AO SFP Transceiver - 1000Base-BX - Single-mode - 1490nmTx/1310nmRx - 10km - LC - DOM - TAA Compliant
Business volume discounts
Technical guidance
Preparation & staging
QC · ON · AB · BC
Product Features
Technical Overview
This SFP transceiver operates at Gigabit Ethernet speeds with 1000Base-BX technology, supporting data transfer rates up to 1000Mbps. The bidirectional design uses wavelength division multiplexing with 1490nm transmit and 1310nm receive wavelengths over a single LC connector.
The module is MSA compliant and designed for seamless integration with Brocade switches and routers. DOM functionality provides digital monitoring of temperature, voltage, bias current, transmit power, and receive power for comprehensive performance tracking.
This section brings together practical product details such as Application/Usage, Total Number of Ports, Connector Type, Interfaces/Ports Details, so buyers can judge configuration, deployment fit, and day-to-day suitability with less guesswork.
A strong technical summary explains how the product's interfaces, hardware profile, and operating characteristics work together in real deployment. Buyers often need this context to confirm compatibility with existing devices, expected performance in daily use, and whether installation will be straightforward for IT staff or end users.
Key Product Advantages
This transceiver offers significant advantages for network deployments requiring extended reach and reliable fiber connectivity. The bidirectional design reduces fiber infrastructure costs by utilizing a single fiber strand for both transmit and receive functions.
Extended Reach Capability
Supports distances up to 10 kilometers, making it ideal for campus networks, metropolitan area connections, and data center interconnects where longer fiber runs are necessary.
- 10km maximum reach
- Single-mode fiber optimized
- 1490nm/1310nm wavelength pairing
Comprehensive Compatibility
Designed specifically for Brocade networking equipment with tested compatibility across multiple switch series including Bigiron, Fastiron, and Netiron platforms.
- MSA compliant design
- Brocade specific compatibility
- Hot-pluggable installation
Enhanced Monitoring
DOM support provides detailed performance metrics for proactive network management, helping identify potential issues before they impact network availability.
- Real-time performance data
- Temperature and voltage monitoring
- Transmit/receive power tracking
Deployment / Use Cases
The AddOn E1MG-BXD-AO SFP transceiver is engineered for data networking environments where reliable, high-speed fiber connectivity is essential. Its 1000Base-BX technology makes it particularly valuable for network segments requiring bidirectional communication over single-mode fiber.
Common deployment scenarios include connecting switches across building campuses, establishing metropolitan area network links, and implementing data center interconnects. The module's compatibility with Brocade equipment makes it suitable for enterprise networks, educational institutions, and government facilities utilizing Brocade infrastructure.
Campus Network Connectivity
Connect buildings across educational campuses, corporate parks, or hospital complexes with reliable 10km fiber links that maintain Gigabit Ethernet performance.
Data Center Interconnects
Establish connections between data center facilities or within large data center environments where single-mode fiber infrastructure is already deployed.
Physical Profile
The compact SFP form factor measures 1.20" in height, 2.75" in width, and 4.75" in depth, with an approximate weight of 6.40 ounces. This standardized footprint ensures compatibility with SFP slots across compatible networking equipment while maintaining a minimal physical presence in densely populated switch chassis.
- Width
- 2.75" (69.85 mm)
- Depth
- 4.75" (120.65 mm)
- Height
- 1.20" (30.48 mm)
- Weight
- 6.40 oz (181.44 g)
Highlights
- 1000Base-BX Gigabit Ethernet SFP transceiver for single-mode fiber
- Bidirectional operation with 1490nm transmit and 1310nm receive wavelengths
- 10 kilometer maximum reach for extended network connections
- LC connector interface for standard fiber termination
- DOM (Digital Optical Monitoring) for real-time performance tracking
- MSA compliant design ensuring interoperability
- TAA compliant for government and regulated procurement
- Compatible with Brocade Bigiron, Fastiron, and Netiron series
- 3-year limited warranty for long-term reliability assurance
- Hot-pluggable installation without network downtime
Specifications
| Specifications | |
|---|---|
| Manufacturer | AddOn |
| Manufacturer Part Number | E1MG-BXD-AO |
| Brand Name | AddOn |
| Product Name | SFP (mini-GBIC) Module |
| Product Type | SFP (mini-GBIC) |
| Technical Information | |
| Application/Usage | Data Networking,Optical Network |
| Interfaces/Ports | |
| Total Number of Ports | 1 |
| Connector Type | LC |
| Interfaces/Ports Details | 1 x LC 1000Base-BX Network |
| Media & Performance | |
| Media Type Supported | Optical Fiber |
| Fiber Mode Supported | Single-mode |
| Ethernet Technology | Gigabit Ethernet |
| Network Technology | 1000Base-BX |
| Physical Characteristics | |
| Height | 1.20" (30.48 mm) |
| Width | 2.75" (69.85 mm) |
| Depth | 4.75" (120.65 mm) |
| Weight (Approximate) | 6.40 oz (181.44 g) |
| Miscellaneous | |
| Country of Origin | United States |
| Environmentally Friendly | Yes |
| Warranty | |
| Limited Warranty | 3 Year |
User Manual
FAQ
What type of fiber does this SFP transceiver support?
This SFP transceiver supports single-mode fiber exclusively. Single-mode fiber is designed for longer distance transmissions with lower signal loss compared to multimode fiber, making it ideal for the 10km reach capability of this module. The LC connector interface provides a standard termination point for single-mode fiber patch cables in data networking environments.
What is the maximum distance this transceiver can support?
The AddOn E1MG-BXD-AO SFP transceiver supports distances up to 10 kilometers (approximately 6.2 miles) over single-mode fiber. This extended reach makes it suitable for campus networks, metropolitan area connections, and data center interconnects where longer fiber runs are necessary. The actual achievable distance may vary based on fiber quality, splices, and environmental conditions.
What does DOM monitoring provide?
DOM (Digital Optical Monitoring) provides real-time performance data including temperature, voltage, bias current, transmit power, and receive power. This monitoring capability allows network administrators to track the health and performance of the optical link, identify potential issues before they cause network disruptions, and troubleshoot connectivity problems more effectively. DOM data is accessible through compatible network management systems.
Is this transceiver compatible with Brocade equipment?
Yes, this transceiver is specifically designed for compatibility with Brocade networking equipment. It has been tested and verified to work with multiple Brocade switch series including Bigiron RX Series, Fastiron FCX Series, Fastiron FESX Series, Fastiron FGS Series, Fastiron FLS Series, Fastiron FWS Series, and Netiron CER/CES Series. The MSA compliant design ensures proper mechanical and electrical interface with SFP slots in these devices.
What does TAA compliance mean for this product?
TAA (Trade Agreements Act) compliance indicates that this product meets the requirements for procurement by U.S. government agencies and other entities subject to TAA regulations. TAA compliance ensures the product is manufactured or substantially transformed in the United States or in designated countries, making it eligible for government contracts and regulated purchasing programs that require TAA-compliant products.
What is the warranty period for this SFP transceiver?
This AddOn SFP transceiver comes with a 3-year limited warranty. This warranty period provides assurance of product reliability and manufacturer support for an extended duration, covering defects in materials and workmanship under normal use conditions. The warranty terms are detailed in the product documentation available from the manufacturer.
