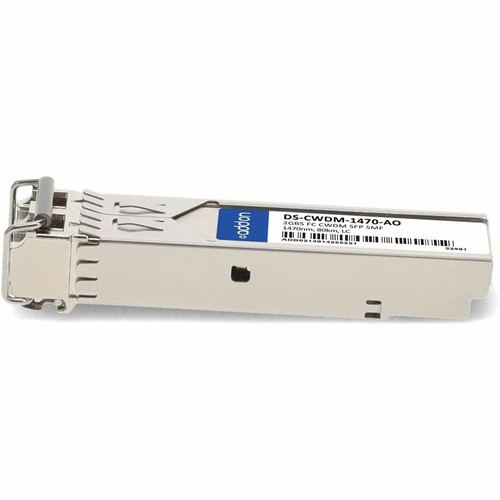

AddOn DS-CWDM-1470-AO Compatible TAA CWDM Fibre Channel SFP Transceiver - 2G - 1470nm - 80km - Single-Mode LC
Business volume discounts
Technical guidance
Preparation & staging
QC · ON · AB · BC
Product Features
Technical Overview
This transceiver operates on the Fibre Channel protocol, a dedicated, high-speed network technology commonly used for storage networking. It leverages CWDM technology to transmit data over a specific 1470 nm optical channel, enabling efficient use of fiber infrastructure by combining multiple wavelengths on a single strand. The 80 km reach supports extended-distance applications without signal degradation, provided single-mode fiber is deployed.
Physical dimensions are compact at 0.30" (7.62 mm) height, 0.50" (12.70 mm) width, and 2.20" (55.88 mm) depth, with a weight of approximately 2.40 oz (68.04 g). The module is manufactured in the United States and complies with RoHS environmental standards, ensuring it meets regulatory requirements for hazardous substance restrictions.
Key Product Advantages
The lifetime limited warranty underscores the module's durability and reliability, offering long-term peace of mind for mission-critical storage environments. Its hot-swappable design facilitates quick replacements or upgrades without network downtime, enhancing operational flexibility.
Long-Distance Performance
With an 80 km reach over single-mode fiber, this transceiver eliminates the need for intermediate signal boosters in metropolitan-scale Fibre Channel networks, reducing complexity and potential points of failure.
- 1470 nm CWDM wavelength
- Optimized for single-mode fiber
- Supports extended SAN interconnects
Broad Cisco MDS 9000 Compatibility
MSA compliance ensures interoperability with a wide range of Cisco MDS 9000 switches, including models like the DS-9134G, DS-C9120, DS-C9140, and DS-X9300 series, providing a reliable drop-in replacement or expansion option.
- Tested for MDS 9000 series
- Hot-swappable for easy upgrades
- TAA compliant for government contracts
Deployment / Use Cases
This SFP transceiver is ideal for Fibre Channel SANs in data centers, enterprise storage networks, and high-availability environments where consistent, low-latency data transfer is essential. Its 80 km reach makes it particularly useful for connecting geographically dispersed storage arrays or disaster recovery sites over dark fiber or CWDM multiplexed links.
Common applications include linking storage area networks across campus buildings, supporting metro-scale storage replication, and integrating with Cisco MDS 9000 fabric switches in consolidated storage infrastructures. The TAA compliance also makes it suitable for U.S. federal and government contracts requiring certified components.
Data Center Interconnect
Deploy in core-to-edge Fibre Channel links within data centers to connect storage controllers to disk arrays or tape libraries, ensuring high-throughput data access for virtualization and backup operations.
Metro Storage Networking
Use for extending SANs across city-wide distances, enabling centralized storage management for branch offices or remote data facilities without compromising performance.
Physical Profile
The transceiver features a standard SFP (mini-GBIC) form factor with dimensions of 0.30" (7.62 mm) height, 0.50" (12.70 mm) width, and 2.20" (55.88 mm) depth, weighing approximately 2.40 oz (68.04 g). Its compact, hot-swappable design allows for dense port configurations in switch chassis, while the robust LC connector provides a reliable fiber interface resistant to vibration and misalignment in rack-mounted environments.
- Width
- 0.50" (12.70 mm)
- Depth
- 2.20" (55.88 mm)
- Height
- 0.30" (7.62 mm)
- Weight
- 2.40 oz (68.04 g)
Highlights
- TAA-compliant SFP transceiver for Fibre Channel networks
- 2 Gbps data rate over single-mode fiber with 80 km reach
- 1470 nm CWDM wavelength for efficient optical multiplexing
- LC connector interface for secure, low-loss fiber connections
- Hot-swappable, MSA-compliant design for Cisco MDS 9000 switches
- Lifetime limited warranty for long-term reliability
- RoHS compliant and environmentally friendly
- Manufactured in the United States
Specifications
| Specifications | |
|---|---|
| Manufacturer | AddOn |
| Manufacturer Part Number | DS-CWDM-1470-AO |
| Brand Name | AddOn |
| Product Name | Cisco DS-CWDM-1470 Compatible SFP Transceiver Module |
| Product Type | SFP (mini-GBIC) |
| Technical Information | |
| Application/Usage | Data Networking,Optical Network |
| Interfaces/Ports | |
| Total Number of Ports | 1 |
| Connector Type | LC |
| Interfaces/Ports Details | 1 x LC Fiber Channel Network |
| Media & Performance | |
| Fiber Mode Supported | Single-mode |
| Network Technology | Fiber Channel |
| Maximum Data Transfer Rate | 2 |
| Physical Characteristics | |
| Form Factor | Hot-swappable |
| Height | 0.30" (7.62 mm) |
| Width | 0.50" (12.70 mm) |
| Depth | 2.20" (55.88 mm) |
| Weight (Approximate) | 2.40 oz (68.04 g) |
| Miscellaneous | |
| Compatibility | MSA Compliant Cisco Networking Products: MDS 9000 Switch - DS-9134G-1K9 MDS 9000 Switch - DS-9134G-K9 MDS 9000 Switch - DS-C9120-K9 MDS 9000 Switch - DS-C9124-K9 MDS 9000 Switch - DS-C9134-1K9 MDS 9000 Switch - DS-C9134-K9 MDS 9000 Switch - DS-C9140-K9 MDS 9000 Switch - DS-C9216A-K9 MDS 9000 Switch - DS-C9216i-K9 MDS 9000 Switch - DS-C9222i-K9 MDS 9000 Switch - DS-X9016 MDS 9000 Switch - DS-X9032 MDS 9000 Switch - DS-X9032-SSM MDS 9000 Switch - DS-X9112 MDS 9000 Switch - DS-X9124 MDS 9000 Switch - DS-X9148 MDS 9000 Switch - DS-X9224-96K9 MDS 9000 Switch - DS-X9248-48K9 MDS 9000 Switch - DS-X9248-96K9 MDS 9000 Switch - DS-X9302-14K9 MDS 9000 Switch - DS-X9304-18K9 MDS 9000 Switch - DS-X9304-SMIP MDS 9000 Switch - DS-X9308-SMIP MDS 9000 Switch - DS-X9316-SSNK9 |
| Country of Origin | United States |
| Environmentally Friendly | Yes |
| Environmental Compliance | Restriction of Hazardous Substances (RoHS) |
| Warranty | |
| Limited Warranty | Lifetime |
User Manual
FAQ
What is the maximum data transfer rate of this SFP transceiver?
This transceiver supports a maximum data transfer rate of 2 Gbps, which is standard for Fibre Channel networks. It is designed for storage area network (SAN) applications where consistent, high-speed data access is critical, such as connecting storage arrays to servers in enterprise environments.
What type of fiber and connector does this module use?
The module uses single-mode fiber with an LC connector interface. Single-mode fiber is optimized for long-distance transmissions up to 80 km, while the LC connector provides a compact, secure connection that minimizes insertion loss and is commonly used in high-density networking equipment.
Is this transceiver compatible with Cisco switches?
Yes, it is MSA (Multi-Source Agreement) compliant and tested for compatibility with Cisco MDS 9000 series switches, including models like DS-9134G, DS-C9120, DS-C9140, and DS-X9300 series. This ensures it can be used as a reliable alternative or expansion module in Cisco-based Fibre Channel SANs.
What does the 1470 nm wavelength indicate?
The 1470 nm wavelength refers to the specific optical channel used in CWDM (Coarse Wavelength Division Multiplexing) technology. This allows the transceiver to transmit data over a dedicated wavelength, enabling multiple signals to share a single fiber strand efficiently, which is beneficial for maximizing fiber infrastructure in data centers or metro networks.
How far can this transceiver transmit data?
It has a reach distance of 80 kilometers over single-mode fiber. This makes it suitable for long-haul applications such as connecting storage networks across metropolitan areas or between data center sites without requiring signal regeneration equipment.
What warranty does this product include?
The transceiver comes with a lifetime limited warranty, which covers defects in materials and workmanship for the product's usable life. This warranty provides assurance of durability and reliability for mission-critical networking deployments, backed by the manufacturer's support.
