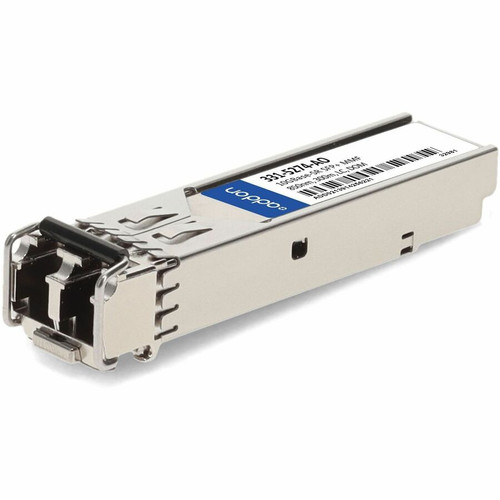

AddOn 331-5274-AO Compatible TAA 10GBase-SR SFP+ Transceiver - 10GbE - MMF - 850nm - 300m - LC - DOM
Business volume discounts
Technical guidance
Preparation & staging
QC · ON · AB · BC
Product Features
Technical Overview
This optical transceiver operates at an 850nm wavelength over multimode fiber (MMF), achieving a maximum transmission distance of 300 meters. It utilizes a duplex LC connector interface, ensuring standard compatibility with existing fiber patch panels and cabling.
The module incorporates Digital Optical Monitoring (DOM) functionality, allowing for real-time diagnostics of transmit power, receive power, temperature, and laser bias current through the host device's management interface. This hot-pluggable SFP+ form factor supports 10 Gigabit Ethernet technology for high-performance network segments.
This section brings together practical product details such as Application/Usage, Total Number of Ports, Connector Type, Interfaces/Ports Details, so buyers can judge configuration, deployment fit, and day-to-day suitability with less guesswork.
Key Product Advantages
This transceiver offers a balance of performance, compatibility, and manageability for modern optical networks.
Standards-Based Performance
Fully compliant with the 10GBase-SR (Short Reach) IEEE 802.3ae standard, ensuring interoperability in multivendor environments and reliable 10GbE connectivity.
- IEEE 802.3ae compliant
- 10 Gigabit Ethernet support
Enhanced Network Visibility
Integrated DOM support provides critical performance metrics, enabling proactive network monitoring, simplified troubleshooting, and optimized link health management.
- Real-time optical diagnostics
- Simplified fault isolation
Robust Physical Design
Built for durability in demanding environments, the module features a compact, industry-standard SFP+ footprint with precise dimensions for secure insertion in compatible switches and adapters.
Deployment / Use Cases
This 10GBase-SR SFP+ transceiver is ideal for short-reach, high-bandwidth connections within data centers, campus networks, and enterprise backbones.
Common applications include linking top-of-rack switches to aggregation layers, connecting servers to storage arrays over fiber, and extending 10GbE capabilities between network closets within a building or campus. Its multimode fiber support makes it suitable for pre-existing MMF cable plant upgrades.
Data Center Interconnect
Connect servers, storage, and switches within a single data center rack or across adjacent rows using standard multimode fiber cabling.
Enterprise Network Backbone
Upgrade core network links between distribution switches to 10GbE, alleviating bottlenecks for user traffic, VoIP, and video conferencing.
Physical Profile
The transceiver measures 1.20 inches in height, 2.75 inches in width, and 4.75 inches in depth, with a weight of approximately 6.40 ounces. Its compact SFP+ form factor is designed for high-density installations in switches, routers, and network interface cards. The module is hot-pluggable, allowing for installation or replacement without powering down the host device.
- Width
- 2.75" (69.85 mm)
- Depth
- 4.75" (120.65 mm)
- Height
- 1.20" (30.48 mm)
- Weight
- 6.40 oz (181.44 g)
Highlights
- 10GBase-SR SFP+ transceiver for 10 Gigabit Ethernet networks
- Compatible with Dell and other TAA-compliant networking equipment
- Supports multimode fiber (MMF) with 850nm wavelength
- Maximum reach of 300 meters over OM3/OM4 fiber
- Duplex LC connector for standard fiber optic interfaces
- Digital Optical Monitoring (DOM) for real-time diagnostics
- Hot-pluggable SFP+ form factor for easy installation
- Lifetime limited warranty for long-term reliability
- Manufactured in the United States
Specifications
| Specifications | |
|---|---|
| Manufacturer | AddOn |
| Manufacturer Part Number | 331-5274-AO |
| Brand Name | AddOn |
| Product Name | SFP+ Module |
| Product Type | SFP+ |
| Technical Information | |
| Application/Usage | Data Networking,Optical Network |
| Interfaces/Ports | |
| Total Number of Ports | 1 |
| Connector Type | LC |
| Interfaces/Ports Details | 1 x LC 10GBase-SR Network |
| Media & Performance | |
| Media Type Supported | Optical Fiber |
| Fiber Mode Supported | Multi-mode |
| Ethernet Technology | 10 Gigabit Ethernet |
| Network Technology | 10GBase-SR |
| Physical Characteristics | |
| Height | 1.20" (30.48 mm) |
| Width | 2.75" (69.85 mm) |
| Depth | 4.75" (120.65 mm) |
| Weight (Approximate) | 6.40 oz (181.44 g) |
| Miscellaneous | |
| Country of Origin | United States |
| Warranty | |
| Limited Warranty | Lifetime |
User Manual
FAQ
What is the maximum data rate and distance for this SFP+ transceiver?
This transceiver supports a data rate of 10 gigabits per second (10 Gbps) using the 10GBase-SR standard. It achieves a maximum transmission distance of 300 meters over multimode fiber optic cable, typically OM3 or OM4 grades, which is standard for short-reach data center and enterprise applications.
Does this module support Digital Optical Monitoring (DOM)?
Yes, this AddOn SFP+ transceiver includes Digital Optical Monitoring (DOM) support. DOM allows the host switch or adapter to monitor real-time parameters such as optical transmit power, receive power, temperature, and laser bias current. This functionality aids in proactive network management, troubleshooting link issues, and ensuring optimal performance.
What type of fiber and connector does this transceiver use?
The module is designed for use with multimode fiber (MMF) optic cables. It features a duplex LC connector interface, which is the industry-standard small-form-factor connector widely used in high-density networking environments for its reliability and ease of use.
Is this transceiver hot-pluggable?
Yes, this SFP+ transceiver is hot-pluggable. You can install or remove the module from a compatible switch, router, or network card without needing to power down the host device. This feature minimizes network downtime during maintenance, upgrades, or reconfiguration.
What is the operating wavelength and what does it mean for my network?
This transceiver operates at an 850nm wavelength, which is the standard for short-reach multimode fiber applications. The 850nm wavelength is optimized for use with OM3 and OM4 multimode fibers, providing efficient data transmission for distances up to 300 meters in data centers and enterprise networks.
What warranty coverage does this AddOn transceiver include?
AddOn provides a lifetime limited warranty for this SFP+ transceiver. This warranty covers defects in materials and workmanship for the life of the product, offering long-term assurance and support for your network investment. The module is also manufactured in the United States.
