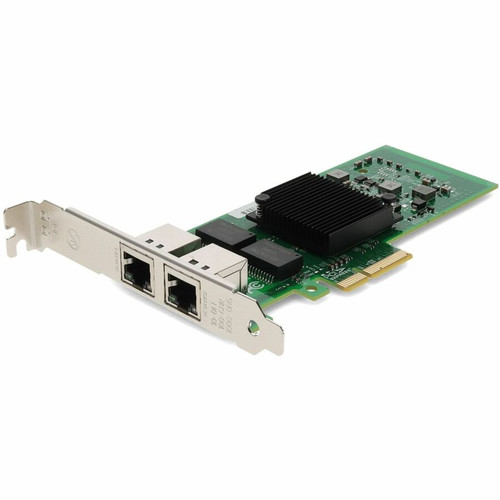

AddOn E1G42ET-AO Intel 82576 Dual-Port Gigabit Ethernet Card - PCIe 2.0 x 4 - 10/100/1000Base-T - Plug-in Card
Business volume discounts
Technical guidance
Preparation & staging
QC · ON · AB · BC
Product Features
Technical Overview
This network interface card leverages PCI Express 2.0 x4 host interface technology to achieve a bandwidth of 2000MB/s, minimizing bottlenecks for data-intensive applications. The Intel 82576 chipset ensures stable operation and compatibility with standard network protocols, while dual RJ-45 ports allow simultaneous connections to multiple network segments or devices.
The card's design prioritizes efficient thermal management and signal integrity, with a low-profile footprint that fits into constrained server environments. Its support for twisted pair cabling provides a cost-effective networking solution without sacrificing performance.
Relevant factors for this section include Chipset Manufacturer, Chipset Model, Host Interface, Total Number of Ports. When those points are considered together, they give buyers a clearer picture of how the product is equipped, how it fits into deployment, and what kind of day-to-day role it is meant to support.
Key Product Advantages
The AddOn E1G42ET-AO card offers several distinct benefits for network expansion and server deployment scenarios. Its dual-port configuration maximizes slot efficiency, while the Intel chipset ensures reliable performance under sustained loads.
High-Density Connectivity
Add two Gigabit Ethernet ports using only one PCIe slot, ideal for servers requiring multiple network interfaces without consuming additional expansion slots.
- Dual RJ-45 ports
- Single-slot design
- Server-optimized
Performance-Oriented Design
PCI Express 2.0 x4 interface provides ample bandwidth for Gigabit Ethernet traffic, preventing network congestion in demanding environments.
- 2000MB/s bandwidth
- 10/100/1000Base-T support
- Intel chipset reliability
Deployment Flexibility
Includes both half-height and full-height brackets to accommodate different chassis sizes, from compact servers to standard tower systems.
- Bracket options included
- Plug-in card form factor
- Server compatibility
Deployment / Use Cases
This Gigabit Ethernet card is specifically designed for server environments where additional network interfaces are required for load balancing, network segmentation, or redundancy. Its dual-port configuration makes it suitable for virtualization hosts, file servers, and application servers that benefit from multiple network connections.
Workstations handling large data transfers or network-intensive applications can also utilize this card to add dedicated network interfaces for improved throughput. The card's compatibility with standard twisted pair cabling simplifies integration into existing network infrastructure without requiring specialized cabling.
Relevant factors for this section include Chipset Manufacturer, Chipset Model, Host Interface, Total Number of Ports. When those points are considered together, they give buyers a clearer picture of how the product is equipped, how it fits into deployment, and what kind of day-to-day role it is meant to support.
Server Network Expansion
Add network capacity to rack-mounted or tower servers for improved connectivity in data center or office environments.
Workstation Performance
Enhance network throughput for design workstations, video editing systems, or other bandwidth-intensive desktop applications.
Physical Profile
The card measures 4.20" in height, 0.80" in width, and 4.70" in depth (106.68 mm × 20.32 mm × 119.38 mm), with an approximate weight of 8 ounces (226.80 grams). This compact plug-in card form factor fits standard PCIe slots while maintaining sufficient clearance for proper airflow in server chassis.
- Width
- 0.80" (20.32 mm)
- Depth
- 4.70" (119.38 mm)
- Height
- 4.20" (106.68 mm)
- Weight
- 8 oz (226.80 g)
What's in the Box
The package includes the Intel Gigabit Ethernet Card along with both half-height and full-height mounting brackets for flexible installation in different system configurations.
Highlights
- Dual-port Gigabit Ethernet card with Intel 82576 chipset
- PCI Express 2.0 x4 interface for 2000MB/s bandwidth
- 10/100/1000Base-T network technology support
- Twisted pair cabling compatibility up to 100 meters
- Plug-in card form factor with included brackets
- Server-optimized design for reliable deployment
- Compact dimensions: 4.20" × 0.80" × 4.70"
- Lifetime limited warranty coverage
Specifications
| Specifications | |
|---|---|
| Manufacturer | AddOn |
| Manufacturer Part Number | E1G42ET-AO |
| Brand Name | AddOn |
| Product Name | Intel Gigabit Ethernet Card |
| Packaged Quantity | 1 |
| Product Type | Gigabit Ethernet Card |
| Technical Information | |
| Chipset Manufacturer | Intel |
| Chipset Model | 82576 |
| Interfaces/Ports | |
| Host Interface | PCI Express 2.0 x4 |
| Total Number of Ports | 2 |
| Number of Network (RJ-45) Ports | 2 |
| Media & Performance | |
| Media Type Supported | Twisted Pair |
| Network & Communication | |
| Network Technology | 10/100/1000Base-T |
| Physical Characteristics | |
| Form Factor | Plug-in Card |
| Height | 4.20" (106.68 mm) |
| Width | 0.80" (20.32 mm) |
| Depth | 4.70" (119.38 mm) |
| Weight (Approximate) | 8 oz (226.80 g) |
| Miscellaneous | |
| Package Contents | Intel Gigabit Ethernet Card Half-height and full-height brackets |
| Device Supported | Server |
| Country of Origin | China |
| Warranty | |
| Limited Warranty | Lifetime |
FAQ
What type of expansion slot does this network card require?
This card requires a PCI Express 2.0 x4 expansion slot. The PCIe 2.0 x4 interface provides sufficient bandwidth for dual Gigabit Ethernet ports, delivering up to 2000MB/s of throughput. It is backward compatible with PCIe 2.0 x4 slots and will function in compatible PCIe slots, though optimal performance requires the specified interface.
How many network ports does this card provide?
The card provides two RJ-45 network ports. This dual-port configuration allows you to add two separate Gigabit Ethernet connections using only one expansion slot, making it efficient for servers or workstations that need multiple network interfaces without consuming additional PCIe slots.
What network speeds does this Ethernet card support?
The card supports 10/100/1000Base-T network technology, which means it can operate at 10Mbps, 100Mbps, or 1000Mbps (Gigabit) speeds depending on your network equipment and cabling. It automatically negotiates the highest available speed with connected switches or routers, with a maximum data transfer rate of 1000Mbps over twisted pair cabling.
What type of cabling is compatible with this network card?
The card is compatible with standard twisted pair Ethernet cabling (Category 5e or higher recommended). It supports cable distances up to 100 meters (328 feet) while maintaining Gigabit Ethernet performance. This compatibility with common twisted pair cabling makes it easy to integrate into existing network infrastructure without specialized cables.
Is this card suitable for server deployment?
Yes, this card is specifically designed for server deployment. The device supported specification lists 'Server,' and its dual-port configuration, Intel chipset reliability, and included half-height/full-height brackets make it well-suited for adding network capacity to servers in data center, office, or rack-mounted environments.
What mounting options are included with the card?
The package includes both half-height and full-height mounting brackets. These brackets allow the card to be installed in different chassis sizes—half-height brackets for compact server or small form factor systems, and full-height brackets for standard tower servers or larger chassis. This flexibility ensures compatibility with various system configurations.
