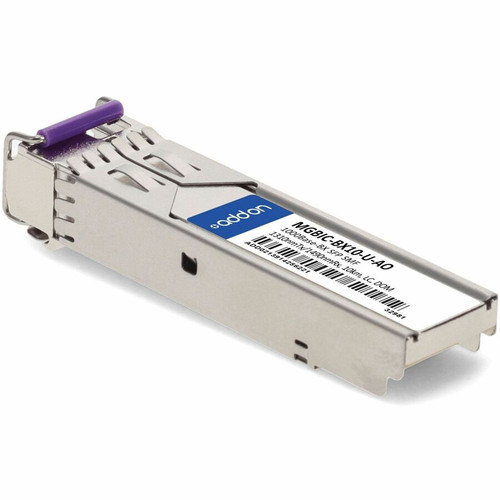

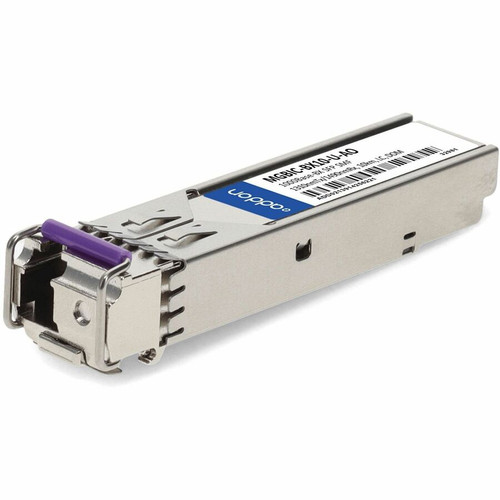

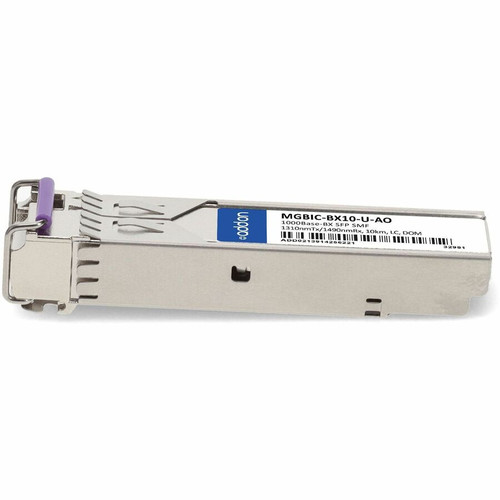

AddOn MGBIC-BX10-U-AO SFP Transceiver - 1000Base-BX - Single-mode - LC - 10km - DOM - TAA Compliant
Business volume discounts
Technical guidance
Preparation & staging
QC · ON · AB · BC
Product Features
Technical Overview
This SFP transceiver operates on the 1000Base-BX technology, providing full-duplex Gigabit Ethernet over a single strand of single-mode fiber. It uses wavelength-division multiplexing with 1310nm for transmission and 1490nm for reception, optimizing bandwidth utilization.
Digital Optical Monitoring (DOM) support offers real-time diagnostics for parameters like optical power, temperature, and voltage, enhancing network management and troubleshooting capabilities. The module is MSA compliant, ensuring interoperability with a wide range of networking hardware from various manufacturers.
This section brings together practical product details such as Application/Usage, Total Number of Ports, Connector Type, Interfaces/Ports Details, so buyers can judge configuration, deployment fit, and day-to-day suitability with less guesswork.
Key Product Advantages
Built for durability and performance, this SFP module minimizes signal loss and maintains data integrity over extended distances. Its compatibility with single-mode fiber ensures reliable operation in various environmental conditions, backed by a 3-year limited warranty for peace of mind.
Bidirectional Efficiency
The 1000Base-BX technology allows data transmission and reception over a single fiber strand, reducing cabling costs and simplifying network infrastructure compared to traditional dual-fiber setups.
Extended Reach
With a 10-kilometer reach, this transceiver supports long-distance connections between network nodes, ideal for campus networks, metropolitan area links, and data center interconnects.
Deployment / Use Cases
This transceiver is suitable for optical network backbones, ISP deployments, and any scenario requiring reliable Gigabit Ethernet over fiber. Its TAA compliance makes it appropriate for government and educational procurement where trade agreement adherence is required.
This section brings together practical product details such as Application/Usage, Total Number of Ports, Connector Type, Interfaces/Ports Details, so buyers can judge configuration, deployment fit, and day-to-day suitability with less guesswork.
Enterprise Network Expansion
Deploy this transceiver in switches and routers to add Gigabit Ethernet fiber ports, enabling high-speed connections between buildings or across large facilities without sacrificing performance.
Data Center Interconnects
Use it for linking servers, storage arrays, or network switches within data centers, where single-mode fiber and DOM monitoring support efficient, manageable infrastructure.
Physical Profile
The transceiver measures 1.20" in height, 2.75" in width, and 4.75" in depth (30.48 mm x 69.85 mm x 120.65 mm), with an approximate weight of 6.40 oz (181.44 g). This compact size ensures compatibility with standard SFP slots in networking equipment, facilitating easy integration without occupying excessive rack space.
- Width
- 2.75" (69.85 mm)
- Depth
- 4.75" (120.65 mm)
- Height
- 1.20" (30.48 mm)
- Weight
- 6.40 oz (181.44 g)
Highlights
- 1000Base-BX Gigabit Ethernet SFP transceiver for optical networking
- Single-mode fiber support with 1310nm Tx / 1490nm Rx wavelengths
- LC connector interface for reliable fiber optic connections
- 10 km transmission distance for extended network reach
- DOM (Digital Optical Monitoring) for real-time diagnostics
- MSA compliant for broad hardware compatibility
- TAA compliant for government and educational procurement
- Hot-pluggable design for easy installation and maintenance
- 3-year limited warranty for added reliability
- Manufactured in the United States
Specifications
| Specifications | |
|---|---|
| Manufacturer | AddOn |
| Manufacturer Part Number | MGBIC-BX10-U-AO |
| Brand Name | AddOn |
| Product Name | SFP Module |
| Product Type | SFP |
| Technical Information | |
| Application/Usage | Optical Network,Data Networking |
| Interfaces/Ports | |
| Total Number of Ports | 1 |
| Connector Type | LC |
| Interfaces/Ports Details | 1 x LC 1000Base-BX Network |
| Media & Performance | |
| Media Type Supported | Optical Fiber |
| Fiber Mode Supported | Single-mode |
| Ethernet Technology | Gigabit Ethernet |
| Network Technology | 1000Base-BX |
| Physical Characteristics | |
| Height | 1.20" (30.48 mm) |
| Width | 2.75" (69.85 mm) |
| Depth | 4.75" (120.65 mm) |
| Weight (Approximate) | 6.40 oz (181.44 g) |
| Miscellaneous | |
| Compatibility | MSA Compliant A-Series - A2 S150 Class - SG1201-0848 S155 Class - ST5206-0848-F6 S150 Class - SK1208-0808-F6 S150 Class - SK1008-0816 S155 Class - SG5201-0848-F6 S150 Class - ST1206-0848-F6 S150 Class - ST1206-0848 S155 Class - SK5208-0808-F6 S150 Class - SG1201-0848-F6 A4 Series A4H124-48 A-Series A4H124-48P A4 Series A4H124-24 A4 Series A4H124-24P 7100-Series - 7124T 7100-Series - 7148 7100-Series - 7124 S180 Class - SK8008-1224 S140 Class - SG2201-0848 S130 Class - ST4106-0248 S180 Class - SL8013-1206 S140 Class - SK2009-0824 S140 Class - ST2206-0848 7100-Series - 7148T S180 Class - SK8009-1224 S140 Class - SK2008-0832 S130 Class - SG4101-0248 |
| Country of Origin | United States |
| Warranty | |
| Limited Warranty | 3 Year |
User Manual
FAQ
What is the maximum data transfer rate of this SFP transceiver?
This SFP transceiver supports a maximum data transfer rate of 1000 Mbps (1 Gigabit per second) using the 1000Base-BX Ethernet technology. It delivers full-duplex Gigabit Ethernet performance over single-mode fiber, suitable for high-speed optical network applications.
What type of fiber and connector does this transceiver use?
The transceiver uses single-mode fiber with an LC connector interface. Single-mode fiber is optimized for long-distance transmission with minimal signal loss, while the LC connector provides a secure and reliable connection for fiber optic cabling in networking environments.
How far can this transceiver transmit data over fiber?
This transceiver has a reach distance of up to 10 kilometers (approximately 6.2 miles) over single-mode fiber. This extended range makes it suitable for connecting network devices across buildings, campuses, or metropolitan areas without signal degradation.
What is DOM monitoring and why is it important?
DOM stands for Digital Optical Monitoring, a feature that provides real-time diagnostics on key parameters such as optical power, temperature, and voltage. This allows network administrators to monitor transceiver health, troubleshoot issues proactively, and ensure optimal performance in optical networks.
Is this transceiver compatible with my existing networking equipment?
This SFP transceiver is MSA (Multi-Source Agreement) compliant, ensuring interoperability with a wide range of networking hardware from various manufacturers. It is designed to be hot-pluggable and works in standard SFP slots, but always verify compatibility with your specific switch or router model before deployment.
What does TAA compliance mean for this product?
TAA (Trade Agreements Act) compliance indicates that this transceiver meets U.S. government procurement requirements, including being manufactured or substantially transformed in the United States or a designated country. This makes it suitable for use in federal, state, and educational contracts where TAA adherence is mandatory.
