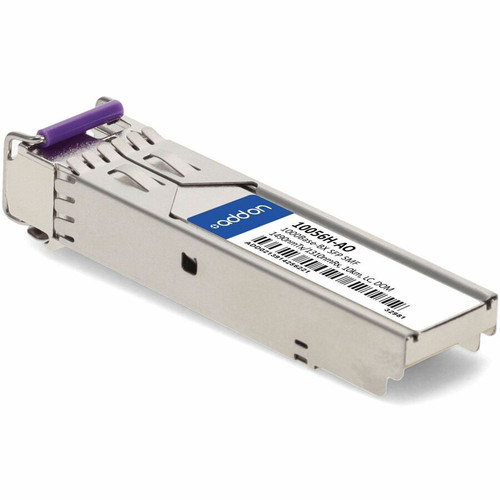

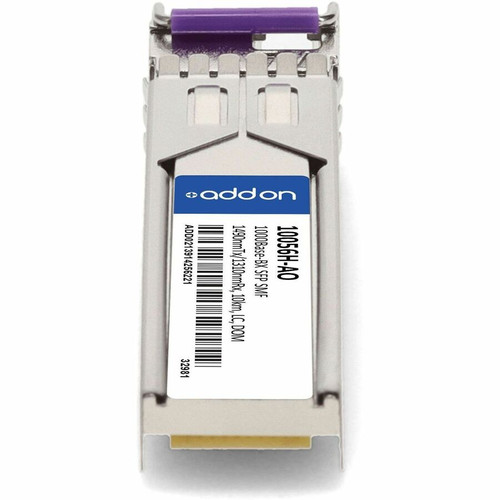

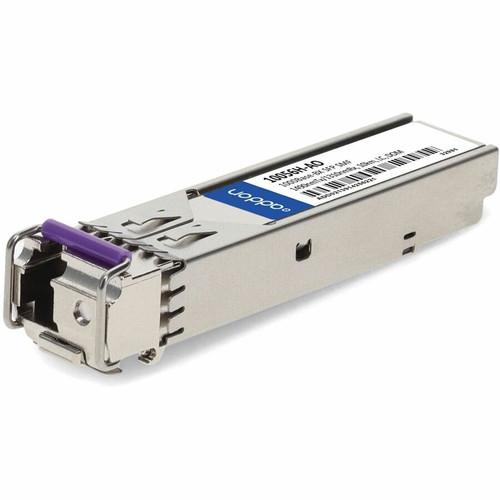

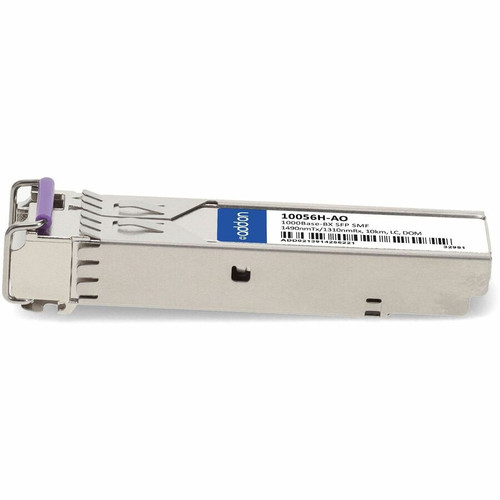

AddOn 10056H-AO SFP Transceiver - 1000Base-BX Single-Mode LC 10km DOM Hot-Swappable TAA Compatible
Business volume discounts
Technical guidance
Preparation & staging
QC · ON · AB · BC
Product Features
Technical Overview
This SFP transceiver leverages 1000Base-BX technology, a Gigabit Ethernet standard specifically for single-mode fiber with bidirectional communication. The module supports optical fiber media and is designed for data networking and optical network applications, ensuring seamless integration into existing fiber infrastructure.
The transceiver operates within a temperature range of -40°C to 85°C, making it suitable for demanding environments. It is TAA compliant, meeting trade agreement requirements for government and enterprise procurement.
This section brings together practical product details such as Application/Usage, Total Number of Ports, Connector Type, Interfaces/Ports Details, so buyers can judge configuration, deployment fit, and day-to-day suitability with less guesswork.
A strong technical summary explains how the product's interfaces, hardware profile, and operating characteristics work together in real deployment. Buyers often need this context to confirm compatibility with existing devices, expected performance in daily use, and whether installation will be straightforward for IT staff or end users.
Key Product Advantages
The AddOn 10056H-AO offers several advantages for network deployments requiring extended reach and reliable performance. Its compatibility with Extreme Networks equipment ensures interoperability, while the 10km distance capability supports long-haul connections without signal degradation.
Extended Reach & Integrity
Single-mode fiber support enables data transmission over distances up to 10km with minimal integrity loss, ideal for connecting geographically dispersed network segments.
- 10km reach distance
- Single-mode fiber optimization
- Low signal attenuation
Operational Flexibility
Hot-swappable design allows for module replacement or upgrades without powering down network equipment, reducing maintenance windows and improving uptime.
- Hot-swappable form factor
- Easy installation
- Minimal network disruption
Deployment / Use Cases
This SFP transceiver is suited for enterprise and service provider networks where long-distance, high-speed fiber links are required. Common applications include connecting switches across buildings, linking data centers, and extending network backbones over campus or metropolitan areas.
The module's TAA compliance makes it appropriate for government contracts and public-sector deployments. Its robust temperature range supports use in industrial settings or outdoor enclosures where environmental conditions vary.
Enterprise Network Backbone
Deploy in core switches to establish reliable Gigabit Ethernet links between network distribution layers, leveraging single-mode fiber for extended reach and future scalability.
Service Provider Access
Use in aggregation points to connect customer premises or remote sites, providing high-speed optical access with DOM monitoring for proactive network management.
Physical Profile
The transceiver features a compact SFP form factor with dimensions of 2.75" (69.85 mm) width, 4.75" (120.65 mm) depth, and 1.20" (30.48 mm) height. Weighing approximately 6.40 oz (181.44 g), it is lightweight yet durable for rack-mounted or embedded installations. The design ensures proper heat dissipation and mechanical stability in high-density switch environments.
- Width
- 2.75" (69.85 mm)
- Depth
- 4.75" (120.65 mm)
- Height
- 1.20" (30.48 mm)
- Weight
- 6.40 oz (181.44 g)
Highlights
- Compatible with Extreme Networks switches and routers
- 1000Base-BX Gigabit Ethernet technology for 1000 Mbps data transfer
- Single-mode fiber support with LC connector
- 10 km reach distance for long-haul connections
- DOM monitoring for real-time optical performance tracking
- Hot-swappable SFP form factor for easy maintenance
- TAA compliant for government and enterprise procurement
- Operates from -40°C to 85°C for harsh environments
- Lifetime warranty for long-term reliability
- Manufactured in the United States
Specifications
| Specifications | |
|---|---|
| Manufacturer | AddOn |
| Manufacturer Part Number | 10056H-AO |
| Brand Name | AddOn |
| Product Name | SFP (mini-GBIC) Module |
| Product Type | SFP (mini-GBIC) |
| Technical Information | |
| Application/Usage | Data Networking,Optical Network |
| Interfaces/Ports | |
| Total Number of Ports | 1 |
| Connector Type | LC |
| Interfaces/Ports Details | 1 x LC 1000Base-BX Network |
| Media & Performance | |
| Media Type Supported | Optical Fiber |
| Fiber Mode Supported | Single-mode |
| Ethernet Technology | Gigabit Ethernet |
| Network Technology | 1000Base-BX |
| Physical Characteristics | |
| Form Factor | Hot-swappable |
| Height | 1.20" (30.48 mm) |
| Width | 2.75" (69.85 mm) |
| Depth | 4.75" (120.65 mm) |
| Weight (Approximate) | 6.40 oz (181.44 g) |
| Miscellaneous | |
| Country of Origin | United States |
| Warranty | |
| Limited Warranty | Lifetime |
User Manual
FAQ
What is the compatibility of this SFP transceiver?
This AddOn 10056H-AO SFP transceiver is designed for compatibility with Extreme Networks switches and routers. It is a third-party compatible module that meets the 1000Base-BX standard, ensuring interoperability with supported Extreme Networks equipment. Always verify compatibility with your specific switch model before deployment.
What type of fiber and connector does this transceiver use?
The transceiver supports single-mode optical fiber with an LC connector. It uses a bidirectional wavelength scheme (1490nm transmit, 1310nm receive) over a single fiber strand, optimizing fiber utilization. The LC connector is standard for SFP modules, providing a secure and reliable optical interface.
What is the maximum distance this SFP can reach?
This SFP transceiver has a reach distance of up to 10 kilometers (approximately 6.2 miles) over single-mode fiber. This extended reach makes it suitable for connecting network segments across buildings, campuses, or metropolitan areas without requiring signal repeaters, maintaining data integrity over long distances.
Does this transceiver support DOM monitoring?
Yes, this SFP transceiver includes DOM (Digital Optical Monitoring) functionality. DOM provides real-time monitoring of key optical parameters such as transmit power, receive power, temperature, and voltage. This allows network administrators to proactively manage link health and troubleshoot issues without physical inspection.
Is this SFP hot-swappable?
Yes, the transceiver features a hot-swappable form factor. This means you can install, remove, or replace the module while the network switch is powered on and operating, without disrupting other network services. Hot-swappability simplifies maintenance and upgrades, reducing downtime in critical network environments.
What is the operating temperature range?
The SFP transceiver operates within a temperature range of -40°C to 85°C. This wide range ensures reliable performance in extreme environments, such as industrial settings, outdoor enclosures, or data centers with variable cooling. The robust design maintains signal integrity across this full temperature spectrum.
