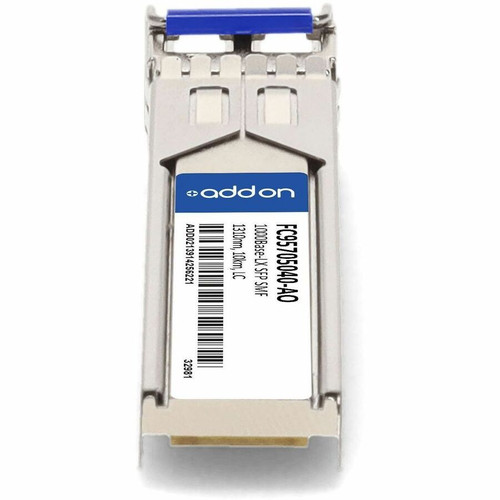

AddOn FC95705040-AO SFP Transceiver - 1000Base-LX - Single-Mode - 1310nm - 10km - LC - DOM - TAA Compliant
Business volume discounts
Technical guidance
Preparation & staging
QC · ON · AB · BC
Product Features
Technical Overview
This SFP transceiver operates on the 1000Base-EX standard, providing full-duplex Gigabit Ethernet over optical fiber. It uses a 1310nm laser optimized for single-mode fiber, which minimizes signal loss over long distances and supports high-bandwidth applications. The module is hot-swappable, allowing for installation or replacement without powering down the network switch, reducing downtime during maintenance or upgrades.
The transceiver features a single LC duplex port, which is the industry standard for high-density fiber connections. It supports digital optical monitoring (DOM), enabling network administrators to monitor real-time parameters such as optical output power, input power, temperature, and supply voltage. This functionality aids in proactive network management and troubleshooting, ensuring optimal performance and reliability.
Key Product Advantages
The AddOn FC95705040-AO SFP transceiver offers several advantages for network deployments. Its single-mode fiber support provides superior performance over long distances compared to multimode alternatives, with lower attenuation and higher bandwidth capacity. The 1310nm wavelength is optimized for standard single-mode fiber, ensuring reliable data transmission in diverse environmental conditions.
DOM monitoring enhances network visibility by providing diagnostic data directly from the transceiver, helping to identify issues before they impact network performance. The hot-swappable design simplifies maintenance, and the lifetime warranty underscores the product's durability and manufacturer support.
Long-Distance Performance
With a 10km reach over single-mode fiber, this transceiver connects distant network segments without signal degradation, ideal for campus links or data center interconnects.
Compliance and Compatibility
MSA compliance ensures interoperability with equipment from Cisco, Juniper, HPE, and other major brands, while TAA compliance meets strict government procurement standards.
Deployment / Use Cases
This SFP transceiver is suited for various networking scenarios that require reliable, high-speed optical connections. In data centers, it can interconnect switches or routers over single-mode fiber, supporting server-to-server communication or storage area networks. Its 10km reach makes it effective for extending network segments across large campuses or between adjacent buildings.
For enterprise environments, the transceiver integrates into network backbones to handle aggregated traffic from multiple access switches. It supports applications such as VoIP, video conferencing, and large file transfers, benefiting from the low latency and high bandwidth of Gigabit Ethernet over fiber. The TAA compliance also makes it a viable choice for government, education, and healthcare networks with specific procurement requirements.
Data Center Interconnects
Use this transceiver to link switches or routers across data center halls or between facilities, leveraging its 10km reach and Gigabit Ethernet speed for backbone connections.
Enterprise Network Backbone
Deploy in enterprise networks to connect floors or buildings, supporting high-speed data, voice, and video traffic with reliable single-mode fiber performance.
Physical Profile
The transceiver has a compact form factor with dimensions of 2.75" (69.85 mm) in width, 4.75" (120.65 mm) in depth, and 1.20" (30.48 mm) in height, weighing approximately 6.40 oz (181.44 g). Its small size allows for high-density installations in network switches, while the robust construction ensures reliable operation in standard rack or cabinet environments. The hot-swappable design facilitates easy insertion and removal without tools, streamlining network maintenance.
- Width
- 2.75" (69.85 mm)
- Depth
- 4.75" (120.65 mm)
- Height
- 1.20" (30.48 mm)
- Weight
- 6.40 oz (181.44 g)
Highlights
- 1000Base-EX Gigabit Ethernet SFP transceiver for optical fiber networks
- 1310nm wavelength optimized for single-mode fiber with up to 10km reach
- LC duplex connector for high-density, reliable fiber connections
- DOM (Digital Optical Monitoring) for real-time performance tracking
- Hot-swappable design enables installation without network downtime
- MSA compliant for broad compatibility with major networking equipment
- TAA compliant to meet government and regulated industry procurement standards
- Lifetime warranty for long-term reliability and support
Specifications
| Specifications | |
|---|---|
| Manufacturer | AddOn |
| Manufacturer Part Number | FC95705040-AO |
| Brand Name | AddOn |
| Product Name | SFP (mini-GBIC) Module |
| Product Type | SFP (mini-GBIC) |
| Packaged Quantity | 1 |
| Technical Information | |
| Application/Usage | Data Networking,Optical Network |
| Interfaces/Ports | |
| Total Number of Ports | 1 |
| Connector Type | LC |
| Interfaces/Ports Details | 1 x LC 1000Base-EX Network |
| Media & Performance | |
| Media Type Supported | Optical Fiber |
| Fiber Mode Supported | Single-mode |
| Ethernet Technology | Gigabit Ethernet |
| Network Technology | 1000Base-EX |
| Physical Characteristics | |
| Form Factor | Hot-swappable |
| Height | 1.20" (30.48 mm) |
| Width | 2.75" (69.85 mm) |
| Depth | 4.75" (120.65 mm) |
| Weight (Approximate) | 6.40 oz (181.44 g) |
| Miscellaneous | |
| Compatibility | MSA Compliant |
| Country of Origin | United States |
| Warranty | |
| Limited Warranty | Lifetime |
User Manual
FAQ
What is the maximum data transfer rate of this SFP transceiver?
This SFP transceiver supports a data transfer rate of 1000 Mbps (1 Gigabit per second) using 1000Base-EX technology. It is designed for Gigabit Ethernet networks, providing high-speed connectivity over single-mode fiber optic cables for applications like data center interconnects or enterprise backbones.
What type of fiber optic cable is compatible with this transceiver?
The transceiver is compatible with single-mode fiber optic cables. It uses a 1310nm wavelength, which is standard for single-mode fiber, offering low attenuation and high bandwidth over distances up to 10 kilometers. This makes it suitable for long-haul network links compared to multimode fiber.
Does this SFP transceiver support digital optical monitoring (DOM)?
Yes, this SFP transceiver includes DOM (Digital Optical Monitoring) functionality. DOM allows network administrators to monitor key parameters such as optical output power, input power, temperature, and supply voltage in real-time. This feature aids in proactive maintenance and troubleshooting to ensure optimal network performance.
Is this transceiver hot-swappable?
Yes, the transceiver is hot-swappable, meaning it can be installed or removed from a compatible network switch without powering down the equipment. This design minimizes network downtime during upgrades or maintenance, making it convenient for live network environments.
What does MSA compliance mean for this SFP module?
MSA (Multi-Source Agreement) compliance ensures that this SFP transceiver meets industry-standard specifications for form factor, electrical interface, and optical performance. This guarantees interoperability with a wide range of networking equipment from vendors like Cisco, Juniper, and HPE, providing flexibility in network deployments.
Why is TAA compliance important for this product?
TAA (Trade Agreements Act) compliance indicates that this transceiver is manufactured in the United States or other designated countries, meeting procurement requirements for U.S. government agencies and regulated industries. It ensures the product adheres to trade regulations, making it eligible for use in federal contracts and similar applications.
