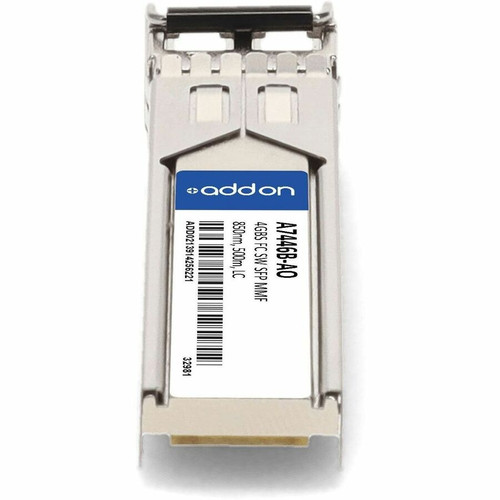

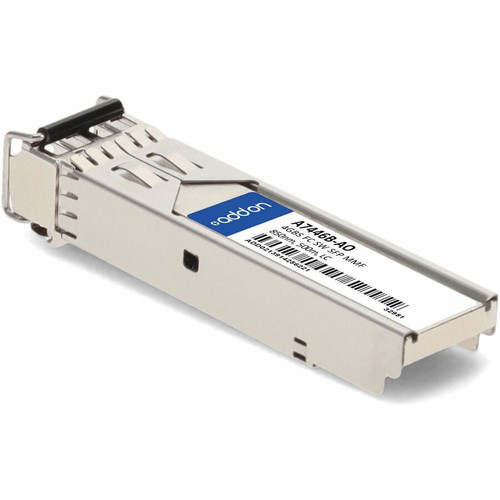

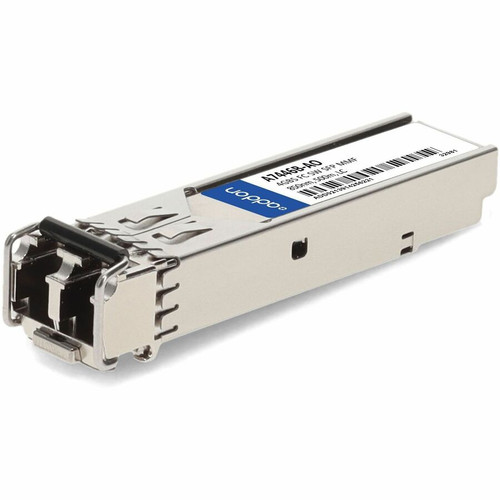

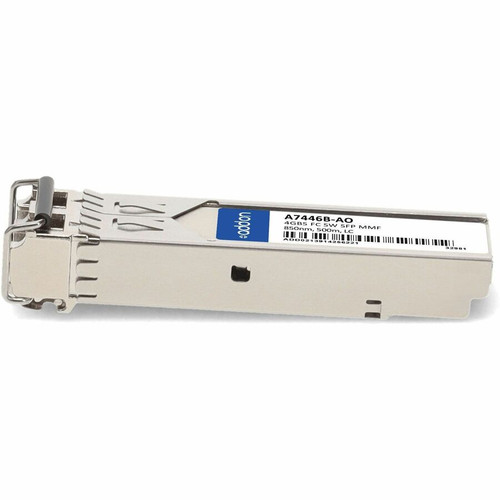

AddOn A7446B-AO Compatible TAA Compliant 4GBase-SW Fibre Channel SFP Transceiver - MMF - 850nm - 500m - LC
Business volume discounts
Technical guidance
Preparation & staging
QC · ON · AB · BC
Product Features
Technical Overview
This SFP transceiver operates on 4GBase-SW network technology, delivering a maximum data transfer rate of 4 Gbps. It uses an LC duplex connector interface and is designed for multimode optical fiber with a typical wavelength of 850nm, supporting reach distances up to 500 meters. The module is hot-pluggable and MSA compliant, ensuring interoperability with compatible networking equipment.
The transceiver features a single LC port and is optimized for optical fiber media, providing reliable signal integrity and low bit error rates. It is specifically coded for compatibility with HP StorageWorks 4/8 Base SAN Switch (A7984A) and StorageWorks 4/8 SAN Switch (A8000A), making it a verified replacement option for maintaining or upgrading existing SAN infrastructure.
Key Product Advantages
This transceiver offers several advantages for SAN and data networking environments, including TAA compliance for government and regulated procurement, reliable 4 Gbps performance, and direct compatibility with HP StorageWorks switches.
TAA Compliance
Meets Trade Agreements Act requirements, making it suitable for federal, state, and educational purchasing where compliance is mandatory.
- Verified for government contracts
- Sourced from United States
High Performance
Delivers 4 Gbps throughput with low latency, ensuring efficient data transfers and reduced bottlenecks in storage networks.
- 4GBase-SW technology
- Optimized for multimode fiber
Verified Compatibility
Designed as a compatible replacement for HP A7446B transceivers, tested for use with StorageWorks 4/8 SAN switches to ensure reliable operation.
- MSA compliant
- HP switch coded
Deployment / Use Cases
This SFP transceiver is deployed in Fibre Channel storage area networks, data center interconnects, and enterprise networking environments where reliable, high-speed optical connectivity is required. It is commonly used to connect servers to SAN switches, link storage arrays, or extend network segments within a building or campus.
Typical use cases include upgrading or maintaining HP StorageWorks SAN infrastructures, expanding storage network capacity with 4 Gbps links, and deploying short to medium-distance optical links in data centers. The multimode fiber support makes it suitable for intra-building applications such as server rooms, network closets, and storage racks where distances do not exceed 500 meters.
SAN Connectivity
Connect servers, switches, and storage devices in Fibre Channel SANs for high-performance data access and backup.
- StorageWorks switch compatibility
- 4 Gbps Fibre Channel
Data Center Links
Establish reliable optical links between network equipment within data centers, supporting fast file transfers and low-latency communication.
- Multimode fiber up to 500m
- LC connector for easy termination
Physical Profile
The transceiver has a compact SFP form factor with dimensions of 2.75" (69.85 mm) width, 4.75" (120.65 mm) depth, and 1.20" (30.48 mm) height, weighing approximately 6.40 oz (181.44 g). Its small footprint allows for high-density installations in switch ports, while the standard SFP design ensures easy insertion and removal in compatible slots.
- Width
- 2.75" (69.85 mm)
- Depth
- 4.75" (120.65 mm)
- Height
- 1.20" (30.48 mm)
- Weight
- 6.40 oz (181.44 g)
Highlights
- 4GBase-SW Fibre Channel SFP transceiver for 4 Gbps optical networking
- Compatible with HP A7446B and StorageWorks 4/8 SAN switches (A7984A, A8000A)
- Multimode fiber support with LC connector, 850nm wavelength, 500m reach
- TAA compliant for government and regulated procurement requirements
- MSA compliant and hot-pluggable for easy installation and replacement
- Optimized for low-latency, high-bandwidth storage area network applications
- Manufactured in the United States with a 3-year limited warranty
- Ideal for data center, SAN, and enterprise short-distance optical links
Specifications
| Specifications | |
|---|---|
| Manufacturer | AddOn |
| Manufacturer Part Number | A7446B-AO |
| Brand Name | AddOn |
| Product Name | SFP Module |
| Product Type | SFP |
| Technical Information | |
| Application/Usage | Optical Network,Data Networking |
| Interfaces/Ports | |
| Total Number of Ports | 1 |
| Connector Type | LC |
| Interfaces/Ports Details | 1 x LC 4GBase-SW Network |
| Media & Performance | |
| Media Type Supported | Optical Fiber |
| Fiber Mode Supported | Multi-mode |
| Ethernet Technology | 4 Gigabit Ethernet |
| Network Technology | 4GBase-SW |
| Maximum Data Transfer Rate | 4 |
| Physical Characteristics | |
| Height | 1.20" (30.48 mm) |
| Width | 2.75" (69.85 mm) |
| Depth | 4.75" (120.65 mm) |
| Weight (Approximate) | 6.40 oz (181.44 g) |
| Miscellaneous | |
| Compatibility | MSA Compliant StorageWorks 4/8 Base SAN Switch - A7984A StorageWorks 4/8 SAN Switch - A8000A |
| Country of Origin | United States |
| Warranty | |
| Limited Warranty | 3 Year |
User Manual
FAQ
What is the speed and technology of this SFP transceiver?
This transceiver uses 4GBase-SW network technology, delivering a maximum data transfer rate of 4 Gbps. It is designed for Fibre Channel and optical networking applications, providing high-performance connectivity for storage area networks and data center links.
What type of fiber and connector does this module support?
The module supports multimode optical fiber with an LC duplex connector. It is optimized for 850nm wavelength and can reach distances up to 500 meters, making it suitable for short to medium-distance optical connections within buildings or data centers.
What does TAA compliant mean for this product?
TAA compliance indicates that this transceiver meets the requirements of the Trade Agreements Act, making it eligible for procurement by U.S. federal, state, and local government agencies, as well as educational institutions that require compliant products. It is manufactured in the United States to support these regulations.
What is the warranty and origin of this SFP transceiver?
The transceiver comes with a 3-year limited warranty and is manufactured in the United States. This warranty covers defects in materials and workmanship, providing assurance of quality and reliability for your networking investments.
What are typical use cases for this 4GBase-SW SFP transceiver?
This transceiver is commonly used in Fibre Channel storage area networks to connect servers, switches, and storage arrays. It is also deployed for data center interconnects, enterprise network extensions, and short-distance optical links within buildings, supporting applications that require reliable 4 Gbps performance over multimode fiber.
