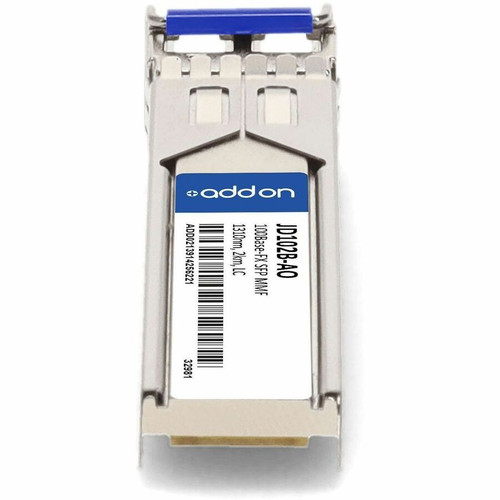

AddOn JD102B-AO 100Base-FX SFP Transceiver - MMF - 1310nm - 2km - LC - DOM - Hot-Pluggable
Business volume discounts
Technical guidance
Preparation & staging
QC · ON · AB · BC
Product Features
Technical Overview
This SFP transceiver operates on 100Base-FX Fast Ethernet technology, delivering data transfer rates up to 100Mbps over optical fiber. It uses multi-mode fiber optic cable, which supports high bandwidth and carries multiple wavelengths for efficient data transmission.
The module includes Digital Optical Monitoring (DOM) for real-time performance tracking, allowing network managers to monitor parameters like optical power and temperature. Its hot-pluggable form factor enables installation and replacement without powering down the network switch.
This section brings together practical product details such as Application/Usage, Total Number of Ports, Connector Type, Interfaces/Ports Details, so buyers can judge configuration, deployment fit, and day-to-day suitability with less guesswork.
A strong technical summary explains how the product's interfaces, hardware profile, and operating characteristics work together in real deployment. Buyers often need this context to confirm compatibility with existing devices, expected performance in daily use, and whether installation will be straightforward for IT staff or end users.
Key Product Advantages
The JD102B-AO transceiver offers several advantages for network deployments requiring reliable fiber connectivity. Its design prioritizes compatibility, performance, and ease of use in diverse networking environments.
Extended Reach
With a 2km reach over multi-mode fiber, this transceiver supports longer-distance connections between network switches, servers, and endpoints without signal degradation.
- Ideal for campus networks
- Reduces need for repeaters
Monitoring Capabilities
DOM support provides visibility into optical performance, helping troubleshoot issues and maintain network health through real-time diagnostics.
- Tracks optical power levels
- Monitors temperature
Compliance & Reliability
MSA compliance ensures interoperability with a wide range of networking equipment, while RoHS certification and a lifetime warranty underscore its durability and environmental responsibility.
- Broad compatibility
- Lifetime warranty
Deployment / Use Cases
This 100Base-FX SFP transceiver is well-suited for extending Fast Ethernet networks over fiber optic infrastructure. It connects network switches to servers, workstations, or other networking devices in environments where copper cabling is impractical or distance requirements exceed typical Ethernet limits.
Common deployment scenarios include linking buildings on a campus, connecting data center racks, or providing high-bandwidth links to conference rooms and labs. The multi-mode fiber support makes it effective for medium-distance applications where cost-effective fiber solutions are preferred.
Campus Networking
Connect multiple buildings across a campus with reliable fiber links that span up to 2km, ensuring consistent network performance for academic or corporate environments.
Data Center Extensions
Use in data centers to link switches across different racks or floors, leveraging fiber's immunity to electromagnetic interference for stable connections.
Physical Profile
The transceiver has a compact hot-pluggable form factor measuring 1.20" in height, 2.75" in width, and 4.75" in depth, with a weight of approximately 6.40 oz. Its small size allows for high-density installations in network switches, while the standardized SFP footprint ensures easy integration into compatible equipment.
- Width
- 2.75" (69.85 mm)
- Depth
- 4.75" (120.65 mm)
- Height
- 1.20" (30.48 mm)
- Weight
- 6.40 oz (181.44 g)
Highlights
- 100Base-FX Fast Ethernet SFP transceiver for optical fiber networks
- Supports multi-mode fiber with 1310nm wavelength and 2km reach
- LC duplex connector for reliable fiber optic connections
- Digital Optical Monitoring (DOM) for performance diagnostics
- Hot-pluggable design for easy installation and maintenance
- MSA compliant for broad compatibility with networking equipment
- RoHS certified and environmentally friendly
- Lifetime warranty for long-term reliability
Specifications
| Specifications | |
|---|---|
| Manufacturer | AddOn |
| Manufacturer Part Number | JD102B-AO |
| Brand Name | AddOn |
| Product Name | 155Mbps SFP Transceiver |
| Product Type | SFP |
| Technical Information | |
| Application/Usage | Data Networking,Optical Network |
| Interfaces/Ports | |
| Total Number of Ports | 1 |
| Connector Type | LC |
| Interfaces/Ports Details | 1 x LC Duplex 100Base-FX Network |
| Media & Performance | |
| Media Type Supported | Optical Fiber |
| Fiber Mode Supported | Multi-mode |
| Ethernet Technology | Fast Ethernet |
| Network Technology | 100Base-FX |
| Physical Characteristics | |
| Form Factor | Hot-pluggable |
| Height | 1.20" (30.48 mm) |
| Width | 2.75" (69.85 mm) |
| Depth | 4.75" (120.65 mm) |
| Weight (Approximate) | 6.40 oz (181.44 g) |
| Miscellaneous | |
| Compatibility | MSA Compliant |
| Country of Origin | United States |
| Environmentally Friendly | Yes |
| Environmental Compliance | Restriction of Hazardous Substances (RoHS) |
| Warranty | |
| Limited Warranty | Lifetime |
User Manual
FAQ
What type of fiber does this SFP transceiver support?
This transceiver supports multi-mode fiber optic cable. Multi-mode fiber has a thicker core diameter that carries multiple light wavelengths, making it suitable for shorter to medium-distance applications like campus networks or data center links up to 2km.
What is the data transfer rate of this 100Base-FX transceiver?
The transceiver operates on 100Base-FX Fast Ethernet technology, providing data transfer rates up to 100Mbps. This speed is ideal for extending network connections where higher bandwidth is needed over fiber optic infrastructure compared to traditional copper cabling.
Does this transceiver include monitoring capabilities?
Yes, it features Digital Optical Monitoring (DOM). DOM allows network administrators to monitor real-time parameters such as optical power levels and temperature, aiding in troubleshooting and maintaining optimal network performance without physical inspection.
What does MSA compliance mean for compatibility?
MSA compliance indicates that the transceiver meets Multi-Source Agreement standards, ensuring interoperability with a wide range of networking equipment from vendors like HP and others. This means it should work in any switch or router that supports standard SFP interfaces and 100Base-FX technology.
Is this transceiver hot-pluggable?
Yes, it has a hot-pluggable form factor. This allows you to install or replace the module without powering down the network switch, minimizing downtime and simplifying maintenance in live network environments.
What is the warranty coverage for this product?
The transceiver comes with a lifetime limited warranty. This warranty covers defects in materials and workmanship for the life of the product, providing long-term assurance of reliability and support from the manufacturer.
