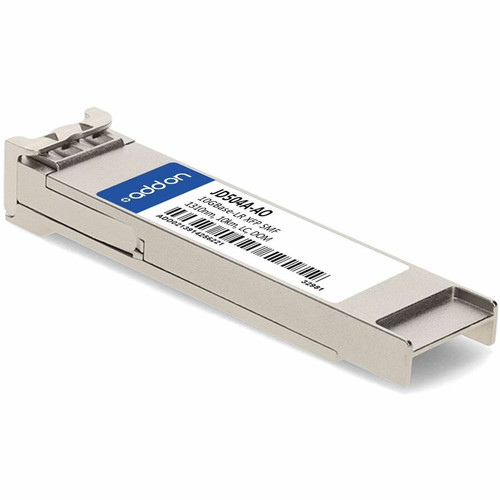

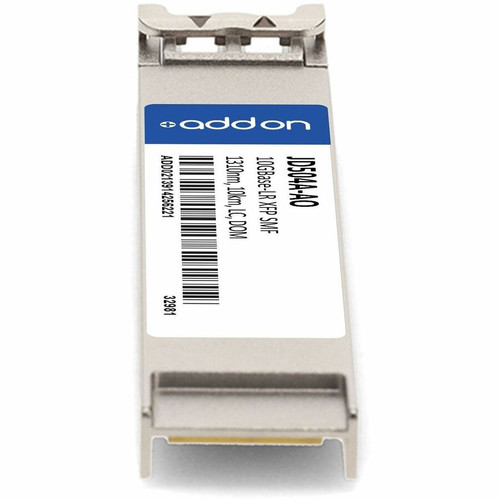

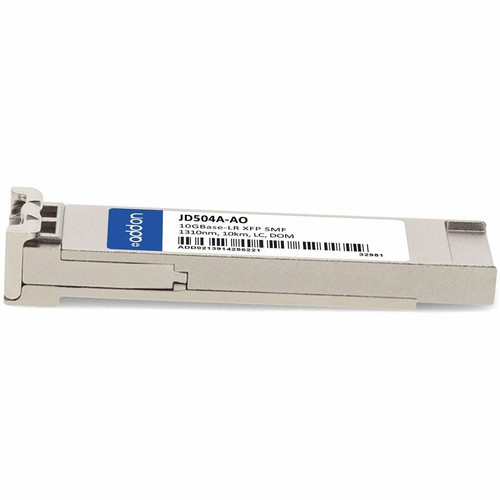

AddOn JD504A-AO Compatible HP JD504A TAA 10GBase-LR XFP Transceiver - 10GbE - LC - Single-mode - 10km - DOM - Hot-swappable
Business volume discounts
Technical guidance
Preparation & staging
QC · ON · AB · BC
Product Features
Technical Overview
This XFP transceiver operates on 10GBase-LR network technology, utilizing a wavelength of 1310nm over single-mode fiber to achieve a 10km transmission distance. It features an LC duplex connector interface, supporting one port for 10GBase-LR network connections. The module is hot-swappable, allowing for live insertion and removal to minimize downtime during upgrades or replacements.
With dimensions of 0.30" (7.62 mm) in height, 0.50" (12.70 mm) in width, and 2.20" (55.88 mm) in depth, it maintains a lightweight profile at approximately 2.40 oz (68.04 g). The transceiver is manufactured in the United States and includes DOM capabilities for monitoring optical power, temperature, and voltage, ensuring optimal performance in demanding optical network applications.
Key Product Advantages
This transceiver combines high-performance optics with practical features to enhance network reliability and efficiency. Its compatibility with HP JD504A TAA and 3COM switches ensures broad applicability in existing infrastructures, reducing the need for costly hardware overhauls.
Enhanced Monitoring
DOM support provides real-time diagnostics for optical power, temperature, and voltage, enabling proactive maintenance and troubleshooting.
- Real-time performance tracking
- Proactive fault detection
- Improved network uptime
Low Power Design
Engineered for energy efficiency, this transceiver minimizes power consumption without compromising on 10GbE performance, supporting sustainable network operations.
- Reduced operational costs
- Cooler running temperatures
- Extended equipment lifespan
Deployment / Use Cases
Ideal for data centers, enterprise networks, and service provider environments, this transceiver supports high-speed backbone connections and long-distance fiber links. Its 10km reach makes it suitable for campus networks, metropolitan area networks (MANs), and inter-building connectivity where reliable, low-latency data transmission is critical.
Common applications include uplinks between switches, connections to storage area networks (SANs), and aggregation points in optical transport networks. The hot-swappable form factor allows for easy scalability and maintenance, while MSA compliance ensures interoperability with a wide range of networking equipment from vendors like HP and 3COM.
Data Center Backbone
Provides high-bandwidth connections between core switches and servers, supporting virtualization and cloud services with 10GbE speed.
- Server-to-switch links
- Core network aggregation
- Virtualized infrastructure support
Long-Distance Connectivity
Enables reliable fiber optic links over 10km distances, perfect for connecting remote buildings or network segments without signal degradation.
- Campus network extensions
- Metro Ethernet links
- Inter-facility connections
Physical Profile
The transceiver features a compact XFP form factor with dimensions of 0.30" x 0.50" x 2.20" (7.62 mm x 12.70 mm x 55.88 mm) and a weight of approximately 2.40 oz (68.04 g). Its small footprint allows for high-density installations in switch chassis, while the hot-swappable design facilitates tool-free installation and replacement. The robust construction ensures reliable operation in varied environmental conditions, backed by a 3-year warranty for added peace of mind.
- Width
- 0.50" (12.70 mm)
- Depth
- 2.20" (55.88 mm)
- Height
- 0.30" (7.62 mm)
- Weight
- 2.40 oz (68.04 g)
Highlights
- 10GBase-LR XFP transceiver for 10GbE optical networks
- Compatible with HP JD504A TAA and 3COM Switch 4500G/4510G
- LC duplex connector for single-mode fiber up to 10km
- Hot-swappable form factor for easy installation and maintenance
- DOM (Digital Optical Monitoring) for real-time performance tracking
- Low power design for energy-efficient operation
- MSA compliant for broad interoperability
- Manufactured in the United States with 3-year warranty
Specifications
| Specifications | |
|---|---|
| Manufacturer | AddOn |
| Manufacturer Part Number | JD504A-AO |
| Brand Name | AddOn |
| Product Model | JD504A-AO |
| Product Name | HP/3COM JD504A Compatible 10GBase-LR XFP |
| Product Type | XFP |
| Technical Information | |
| Application/Usage | Optical Network,Data Networking |
| Interfaces/Ports | |
| Total Number of Ports | 1 |
| Connector Type | LC |
| Interfaces/Ports Details | 1 x LC 10GBase-LR Network |
| Media & Performance | |
| Media Type Supported | Optical Fiber |
| Fiber Mode Supported | Single-mode |
| Ethernet Technology | 10 Gigabit Ethernet |
| Network Technology | 10GBase-LR |
| Physical Characteristics | |
| Form Factor | Hot-swappable |
| Height | 0.30" (7.62 mm) |
| Width | 0.50" (12.70 mm) |
| Depth | 2.20" (55.88 mm) |
| Weight (Approximate) | 2.40 oz (68.04 g) |
| Miscellaneous | |
| Compatibility | MSA Compliant 3COM Switch 4500G/4510G |
| Country of Origin | United States |
| Environmentally Friendly | Yes |
| Warranty | |
| Limited Warranty | 3 Year |
User Manual
FAQ
What is the data transfer speed of this XFP transceiver?
This transceiver supports 10 Gigabit Ethernet (10GbE) technology, delivering data transfer rates up to 10 Gbps. It uses 10GBase-LR network standards to ensure high-speed, reliable connectivity over single-mode fiber optic cables, making it suitable for bandwidth-intensive applications like data center backbones and enterprise networks.
What type of fiber and connector does this module use?
The transceiver is designed for single-mode fiber optic cables and features an LC duplex connector interface. This combination supports long-distance transmissions up to 10 kilometers with minimal signal loss, providing a reliable solution for extended network links in campus or metropolitan environments.
Is this transceiver hot-swappable?
Yes, this XFP transceiver is hot-swappable, allowing for installation or replacement without powering down the network equipment. This feature minimizes downtime during maintenance or upgrades, ensuring continuous network availability and simplifying deployment in live environments.
What compatibility does this transceiver have with networking equipment?
It is MSA compliant and compatible with HP JD504A TAA applications and 3COM Switch 4500G/4510G models. This broad compatibility ensures seamless integration into existing network infrastructures, offering a cost-effective alternative to OEM modules while maintaining performance and reliability standards.
Does this transceiver include monitoring capabilities?
Yes, it features DOM (Digital Optical Monitoring), which provides real-time diagnostics for parameters like optical power, temperature, and voltage. This allows network administrators to monitor performance proactively, detect potential issues early, and maintain optimal operation in optical network setups.
What is the warranty and environmental impact of this product?
The transceiver comes with a 3-year limited warranty and is manufactured in the United States with environmentally friendly materials. Its low power design reduces energy consumption, supporting sustainable network operations while ensuring long-term durability and reliability in various deployment scenarios.
