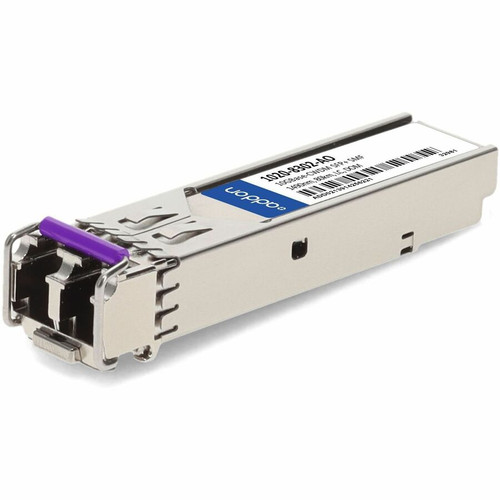

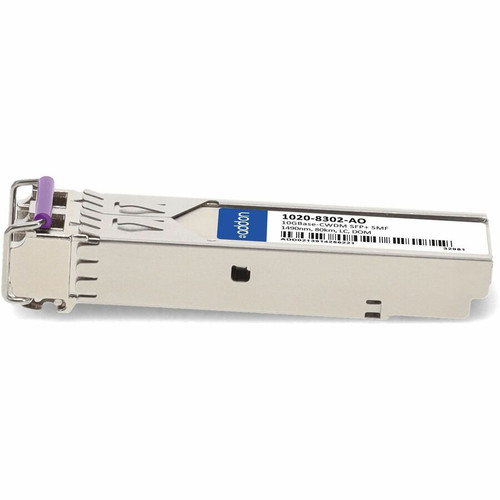

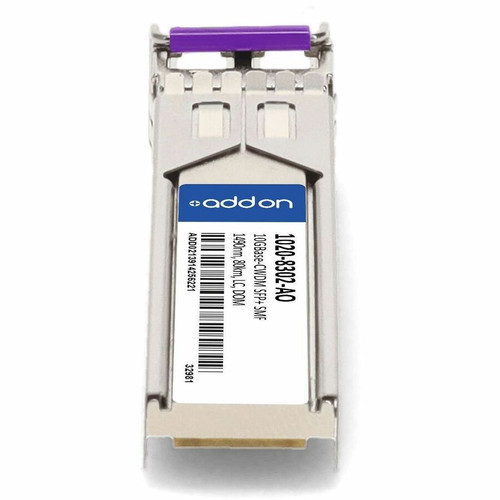

AddOn 1020-8302-AO Compatible TAA 10GBase-CWDM SFP+ Transceiver - 1490nm - 80km - LC - Singlemode - DOM
Business volume discounts
Technical guidance
Preparation & staging
QC · ON · AB · BC
Product Features
Technical Overview
This SFP+ transceiver implements the 10GBase-CWDM standard, providing 10 Gigabit Ethernet connectivity over single-mode optical fiber. The 1490 nm CWDM wavelength allows integration into existing CWDM multiplexing systems without requiring additional fiber strands. The module's electrical interface complies with SFP+ MSA specifications for compatibility with a wide range of networking equipment.
Digital Optical Monitoring (DOM) support enables access to real-time operational parameters including optical output power, received power, temperature, and laser bias current through the host device's management interface. This facilitates proactive network maintenance and troubleshooting. The hot-swappable design allows installation and replacement without powering down the host switch or router.
This section brings together practical product details such as Application/Usage, Features, Total Number of Ports, Connector Type, so buyers can judge configuration, deployment fit, and day-to-day suitability with less guesswork.
Key Product Advantages
This transceiver combines extended reach, monitoring capabilities, and compliance features essential for enterprise and service provider networks. The 80-kilometer distance support reduces the need for intermediate amplification in long-haul connections, while DOM functionality provides visibility into link performance.
Extended Distance Coverage
With 80 km reach over single-mode fiber, this transceiver supports metropolitan area network (MAN) and campus backbone applications without requiring signal regeneration equipment.
- Eliminates intermediate optical amplifiers
- Reduces total cost of long-distance links
- Maintains signal integrity over extended runs
Compliance & Warranty Assurance
Manufactured in TAA-compliant facilities and backed by a lifetime limited warranty, this module meets procurement requirements for government and institutional deployments while providing long-term reliability.
- TAA compliance for government contracts
- Lifetime warranty coverage
- Quality assurance from compliant manufacturing
Deployment / Use Cases
The 10GBase-CWDM SFP+ transceiver is optimized for point-to-point fiber connections in enterprise, data center, and service provider environments. Its combination of distance, monitoring, and compliance features makes it suitable for both private network infrastructure and contracted service delivery.
In CWDM systems, the 1490 nm wavelength can be combined with other CWDM channels to multiply fiber capacity without additional physical fibers. This is particularly valuable in fiber-constrained environments or when expanding existing CWDM infrastructure.
Enterprise Campus Backbone
Connect buildings across large campuses or business parks with high-speed 10GbE links that span up to 80 kilometers. The single-mode fiber compatibility ensures reliable performance in diverse environmental conditions.
- Inter-building connectivity
- Campus network aggregation
- Disaster recovery site links
CWDM Network Expansion
Add 10GbE capacity to existing CWDM systems by utilizing the 1490 nm wavelength channel. This approach maximizes fiber utilization while maintaining separate logical networks for different applications or tenants.
- Wavelength-based network segmentation
- Fiber capacity multiplication
- Service provider access networks
Physical Profile
The transceiver measures 0.60" (15.24 mm) wide by 2.20" (55.88 mm) deep by 0.40" (10.16 mm) high, conforming to the SFP+ mechanical specification for compatibility with standard SFP+ cages and slots. With an approximate weight of 3.20 oz (90.72 g), the module maintains the compact, lightweight form factor expected in high-density networking equipment.
- Width
- 0.60" (15.24 mm)
- Depth
- 2.20" (55.88 mm)
- Height
- 0.40" (10.16 mm)
- Weight
- 3.20 oz (90.72 g)
- Length
- 1490 nm
Highlights
- 10GBase-CWDM SFP+ transceiver for 10 Gigabit Ethernet over fiber
- 1490 nm wavelength operation on single-mode fiber up to 80 km
- LC duplex connector interface for standard fiber patch panels
- Digital Optical Monitoring (DOM) for real-time performance tracking
- Hot-swappable design for installation without network downtime
- TAA compliant for government and institutional procurement
- Lifetime limited warranty for long-term reliability assurance
- Compatible with Optelian and other SFP+ host equipment
Specifications
| Specifications | |
|---|---|
| Manufacturer | AddOn |
| Manufacturer Part Number | 1020-8302-AO |
| Brand Name | AddOn |
| Product Name | Optelian SFP+ Module |
| Product Type | SFP+ |
| Packaged Quantity | 1 |
| Technical Information | |
| Application/Usage | Data Networking,Optical Network |
| Features | Digital Optical Monitoring (DOM) |
| Interfaces/Ports | |
| Total Number of Ports | 1 |
| Connector Type | LC |
| Interfaces/Ports Details | LC 10GBase-CWDM Network |
| Media & Performance | |
| Media Type Supported | Optical Fiber |
| Fiber Optic Cable Wavelength | 1490 nm |
| Fiber Mode Supported | Single-mode |
| Ethernet Technology | 10 Gigabit Ethernet |
| Network Technology | 10GBase-CWDM |
| Maximum Distance Supported | 80 km (49.71 Mile) |
| Maximum Data Transfer Rate | 10 Gbit/s |
| Physical Characteristics | |
| Form Factor | Hot-swappable |
| Height | 0.40" (10.16 mm) |
| Width | 0.60" (15.24 mm) |
| Depth | 2.20" (55.88 mm) |
| Weight (Approximate) | 3.20 oz (90.72 g) |
| Miscellaneous | |
| Country of Origin | United States/United Kingdom |
| TAA Compliant | Yes |
| Warranty | |
| Limited Warranty | Lifetime |
User Manual
FAQ
What is the maximum distance this SFP+ transceiver supports?
This 10GBase-CWDM SFP+ transceiver supports transmission distances up to 80 kilometers (approximately 49.71 miles) over single-mode fiber optic cable. This extended reach makes it suitable for metropolitan area network connections, campus backbones, and other applications requiring long-distance fiber links without intermediate signal regeneration.
What type of fiber is required for this transceiver?
This transceiver requires single-mode fiber optic cable. Single-mode fiber supports longer transmission distances with lower signal attenuation compared to multimode fiber, making it ideal for the 80-kilometer reach this module provides. The transceiver operates at a 1490 nm wavelength, which is optimized for single-mode fiber transmission.
What does Digital Optical Monitoring (DOM) provide?
Digital Optical Monitoring (DOM) enables real-time monitoring of the transceiver's operational parameters through the host device's management interface. This includes measurements of optical output power, received power, temperature, and laser bias current. DOM functionality helps network administrators proactively identify potential issues, troubleshoot link problems, and maintain optimal network performance.
Is this transceiver hot-swappable?
Yes, this SFP+ transceiver features a hot-swappable design that allows installation or replacement without powering down the host switch, router, or other networking equipment. This capability minimizes network downtime during maintenance, upgrades, or reconfiguration activities, supporting continuous operation in critical network environments.
What does TAA compliance mean for this product?
TAA (Trade Agreements Act) compliance indicates this transceiver is manufactured in the United States, United Kingdom, or other TAA-designated countries. This compliance is required for procurement by U.S. federal government agencies and many institutional buyers. The product's country of origin is listed as United States/United Kingdom, meeting TAA sourcing requirements.
What type of connector does this transceiver use?
This SFP+ transceiver uses an LC duplex connector interface. The LC connector is a small form factor fiber optic connector that provides reliable connections with low insertion loss. Its compact size allows for high port density in networking equipment, while the duplex configuration supports both transmit and receive fibers in a single connector pair.
