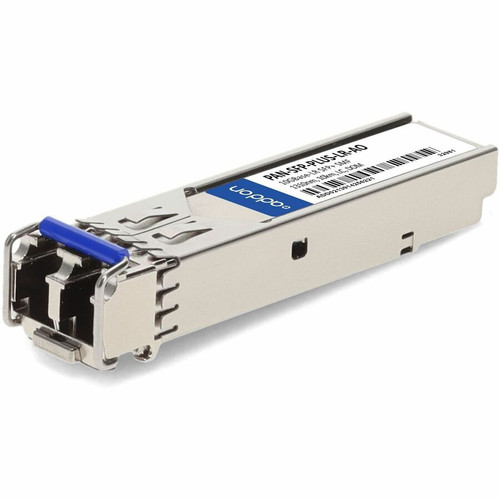

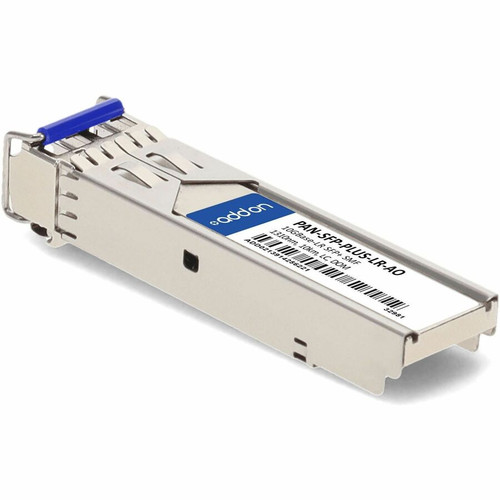

AddOn PAN-SFP-PLUS-LR-AO Compatible TAA 10GBase-LR SFP+ Transceiver - 10GbE - LC - Single-mode - 1310nm - 10km - DOM
Business volume discounts
Technical guidance
Preparation & staging
QC · ON · AB · BC
Product Features
Technical Overview
This SFP+ transceiver operates at a wavelength of 1310nm over single-mode fiber, utilizing an LC duplex connector for secure optical connections. The 10GBase-LR specification ensures compatibility with 10 Gigabit Ethernet infrastructure, supporting high-speed data transmission for enterprise networks, data centers, and service provider environments.
The module is designed for hot-swappable operation, allowing insertion and removal without powering down network equipment. DOM functionality provides monitoring of key parameters such as optical power, temperature, and voltage, aiding in network diagnostics and preventive maintenance.
This section brings together practical product details such as Application/Usage, Total Number of Ports, Connector Type, Interfaces/Ports Details, so buyers can judge configuration, deployment fit, and day-to-day suitability with less guesswork.
Key Product Advantages
This transceiver combines high performance with broad compatibility, making it a cost-effective alternative to OEM modules for expanding or upgrading Palo Alto Networks firewall connectivity.
TAA Compliance
The module is TAA (Trade Agreements Act) compliant, meeting U.S. government procurement requirements for use in federal contracts and projects.
Environmental Responsibility
Manufactured in the United States with RoHS (Restriction of Hazardous Substances) compliance, this transceiver supports eco-friendly IT initiatives without compromising on reliability or performance.
Deployment / Use Cases
Ideal for extending high-speed network connections over longer distances, this SFP+ transceiver is suited for linking Palo Alto Networks firewalls to core switches, routers, or storage arrays in data centers and enterprise networks. Its 10km reach supports campus-wide or metropolitan area network deployments where fiber infrastructure is in place.
Common applications include backbone connectivity for security appliances, inter-building links in educational or corporate campuses, and service provider access networks. The single-mode fiber compatibility ensures low signal loss over extended runs, maintaining data integrity for critical traffic such as VoIP, video streaming, and large data transfers.
Data Center Interconnects
Use this transceiver to connect Palo Alto Networks firewalls between data center racks or across facilities, ensuring secure, high-throughput links for traffic inspection and policy enforcement.
Enterprise Network Expansion
Deploy in corporate networks to extend 10GbE capabilities from central security appliances to remote switches or servers, supporting scalable growth without replacing existing fiber cabling.
Physical Profile
The transceiver features a compact, industry-standard SFP+ form factor with dimensions of 0.30" (7.62 mm) in height, 0.50" (12.70 mm) in width, and 2.20" (55.88 mm) in depth, weighing approximately 2.40 oz (68.04 g). Its small size allows high-density deployment in network switches and firewalls, optimizing rack space in data center environments.
- Width
- 0.50" (12.70 mm)
- Depth
- 2.20" (55.88 mm)
- Height
- 0.30" (7.62 mm)
- Weight
- 2.40 oz (68.04 g)
Highlights
- 10GBase-LR SFP+ transceiver for 10 Gigabit Ethernet over single-mode fiber
- Compatible with Palo Alto Networks PA-5020, PA-5050, and PA-5060 firewalls
- LC duplex connector for reliable optical connections
- Operates at 1310nm wavelength with a reach of up to 10 kilometers
- Hot-swappable design for easy installation and maintenance
- DOM (Digital Optical Monitoring) for real-time performance tracking
- TAA compliant for U.S. government procurement
- RoHS compliant and manufactured in the United States
- MSA compliant for interoperability assurance
- Backed by a 3-year limited warranty
Specifications
| Specifications | |
|---|---|
| Manufacturer | AddOn |
| Manufacturer Part Number | PAN-SFP-PLUS-LR-AO |
| Brand Name | AddOn |
| Product Name | Palo Alto Networks PAN-SFP-PLUS-LR Comp 10Gbase-LR SFP+ |
| Product Type | SFP+ |
| Technical Information | |
| Application/Usage | Data Networking,Optical Network |
| Interfaces/Ports | |
| Total Number of Ports | 1 |
| Connector Type | LC |
| Interfaces/Ports Details | 1 x LC 10GBase-LR Network |
| Media & Performance | |
| Media Type Supported | Optical Fiber |
| Fiber Mode Supported | Single-mode |
| Ethernet Technology | 10 Gigabit Ethernet |
| Network Technology | 10GBase-LR |
| Physical Characteristics | |
| Form Factor | Hot-swappable |
| Height | 0.30" (7.62 mm) |
| Width | 0.50" (12.70 mm) |
| Depth | 2.20" (55.88 mm) |
| Weight (Approximate) | 2.40 oz (68.04 g) |
| Miscellaneous | |
| Compatibility | MSA Compliant Palo Alto Networks Products: PA-5020 PA-5050 PA-5060 |
| Country of Origin | United States |
| Environmentally Friendly | Yes |
| Environmental Compliance | Restriction of Hazardous Substances (RoHS) |
| Warranty | |
| Limited Warranty | 3 Year |
User Manual
FAQ
What is the maximum data transfer rate of this SFP+ transceiver?
This transceiver supports a maximum data transfer rate of 10 Gbps using 10GBase-LR technology. It is designed for 10 Gigabit Ethernet networks, providing high-speed connectivity for data-intensive applications over single-mode fiber optic cables.
What type of fiber and connector does this transceiver use?
The transceiver uses single-mode fiber optic cable with an LC duplex connector. The LC connector is a standard small-form-factor pluggable interface that ensures secure and low-loss connections, suitable for high-density network environments.
What is the reach distance of this 10GBase-LR transceiver?
This transceiver has a reach distance of up to 10 kilometers (approximately 6.2 miles) over single-mode fiber. This makes it ideal for long-distance links in campus networks, data center interconnects, or metropolitan area deployments.
Which Palo Alto Networks devices is this transceiver compatible with?
It is MSA compliant and compatible with specific Palo Alto Networks firewall models, including the PA-5020, PA-5050, and PA-5060. Always verify compatibility with your specific hardware and firmware versions before deployment.
Does this transceiver support DOM (Digital Optical Monitoring)?
Yes, this transceiver includes DOM functionality, which allows for real-time monitoring of optical parameters such as transmit and receive power, temperature, and voltage. This aids in network diagnostics, performance optimization, and preventive maintenance.
Is this transceiver hot-swappable and what are its environmental certifications?
Yes, it features a hot-swappable form factor, enabling installation or replacement without powering down network equipment. It is RoHS (Restriction of Hazardous Substances) compliant, manufactured in the United States, and TAA compliant for use in government procurement scenarios.
