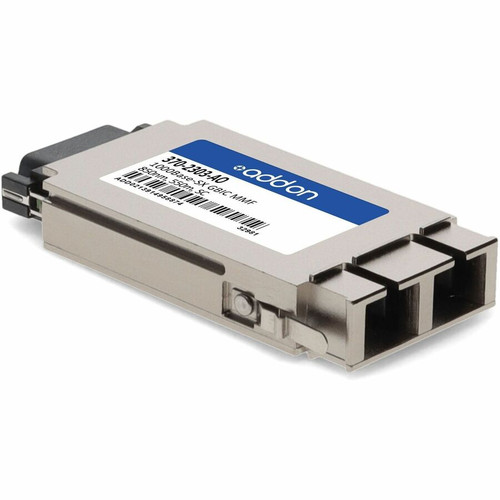

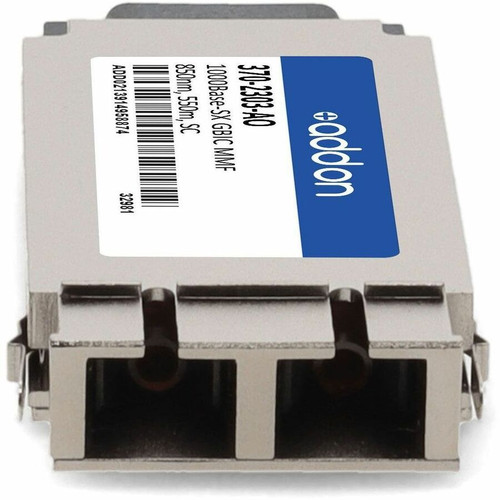

AddOn 370-2303-AO GBIC Transceiver - 1000Base-SX - SC Connector - Multi-mode Fiber - 850nm - 550m Reach
Business volume discounts
Technical guidance
Preparation & staging
QC · ON · AB · BC
Product Features
Technical Overview
This GBIC transceiver operates on the 1000Base-SX standard, which is optimized for multi-mode fiber optic cables. It uses an 850nm laser wavelength and supports a maximum reach of 550 meters, making it effective for intra-building links, data center interconnects, and enterprise network backbones. The module interfaces via a single SC port, providing a duplex connection for full-duplex Gigabit Ethernet communication.
The transceiver is designed for optical fiber media, specifically multi-mode fiber, which is cost-effective for shorter distances. It does not support DOM (Digital Optical Monitoring) or DDM (Digital Diagnostic Monitoring) features, focusing instead on core performance and reliability. Its compact dimensions—0.40" height, 1.20" width, and 2.60" depth—ensure it fits standard GBIC slots in switches, routers, and other network devices.
Key Product Advantages
The AddOn 370-2303-AO GBIC transceiver offers several advantages for network deployments. Its MSA compliance guarantees interoperability with equipment from multiple vendors, reducing compatibility concerns and simplifying procurement. The use of multi-mode fiber and SC connectors provides a balance of performance and affordability, ideal for cost-sensitive projects without sacrificing speed.
High-Speed Connectivity
Delivers Gigabit Ethernet speeds up to 1000Mbps, enabling fast data transfers for servers, storage, and network components.
- Supports 1000Base-SX technology
- Optimal for bandwidth-intensive applications
Reliable Build Quality
Manufactured in the United States with a lifetime limited warranty, ensuring durability and long-term support for critical network infrastructure.
- MSA compliant for broad compatibility
- Hot-pluggable design for easy maintenance
Deployment / Use Cases
This GBIC transceiver is versatile for various networking scenarios. It is commonly used in data centers to connect switches and servers over multi-mode fiber, providing high-speed links within racks or across rooms. In enterprise environments, it supports backbone connections between floors or buildings, extending network reach up to 550 meters without signal degradation.
For audio/video applications, the transceiver facilitates the transmission of multimedia content over optical fiber, ensuring low latency and high bandwidth. It is also suitable for educational institutions, healthcare facilities, and government networks where reliable, short-distance fiber optic connections are required. The module's compatibility with standard GBIC slots makes it a drop-in solution for upgrading or expanding existing network infrastructure.
Data Center Interconnects
Ideal for linking network switches and servers within data centers, offering Gigabit speeds and reduced cable clutter compared to copper alternatives.
Building-to-Building Links
Supports connections between separate buildings on a campus, using multi-mode fiber to span distances up to 550 meters with high reliability.
Physical Profile
The transceiver has a compact form factor with dimensions of 0.40" (10.16 mm) in height, 1.20" (30.48 mm) in width, and 2.60" (66.04 mm) in depth, weighing approximately 4.80 oz (136.08 g). This small size allows it to fit seamlessly into GBIC slots on networking hardware without occupying excessive space. The design is optimized for efficient heat dissipation and stable operation in rack-mounted or standalone devices.
- Width
- 1.20" (30.48 mm)
- Depth
- 2.60" (66.04 mm)
- Height
- 0.40" (10.16 mm)
- Weight
- 4.80 oz (136.08 g)
Highlights
- 1000Base-SX technology for Gigabit Ethernet speeds up to 1000Mbps
- SC connector interface for secure optical fiber connections
- Multi-mode fiber support with 850nm wavelength and 550m reach
- MSA compliant for broad compatibility with networking equipment
- Hot-pluggable design enables easy installation and maintenance
- Compact dimensions: 0.40" H x 1.20" W x 2.60" D
- Manufactured in the United States with a lifetime limited warranty
- Ideal for data networking, optical networks, and audio/video applications
Specifications
| Specifications | |
|---|---|
| Manufacturer | AddOn |
| Manufacturer Part Number | 370-2303-AO |
| Brand Name | AddOn |
| Product Name | GBIC Module |
| Product Type | GBIC |
| Technical Information | |
| Application/Usage | Data Networking,Optical Network |
| Interfaces/Ports | |
| Total Number of Ports | 1 |
| Connector Type | SC |
| Interfaces/Ports Details | 1 x SC 1000Base-SX Network |
| Media & Performance | |
| Media Type Supported | Optical Fiber |
| Fiber Mode Supported | Multi-mode |
| Ethernet Technology | Gigabit Ethernet |
| Network Technology | 1000Base-SX |
| Physical Characteristics | |
| Height | 0.40" (10.16 mm) |
| Width | 1.20" (30.48 mm) |
| Depth | 2.60" (66.04 mm) |
| Weight (Approximate) | 4.80 oz (136.08 g) |
| Miscellaneous | |
| Compatibility | MSA Compliant |
| Country of Origin | United States |
| Warranty | |
| Limited Warranty | Lifetime |
User Manual
FAQ
What is the maximum data transfer rate of this GBIC transceiver?
This GBIC transceiver supports a maximum data transfer rate of 1000 Mbps (1 Gbps) using 1000Base-SX technology. It is designed for Gigabit Ethernet networks, providing high-speed connectivity for data-intensive applications such as server links, network backbones, and multimedia transmission over optical fiber.
What type of fiber optic cable does this transceiver require?
The transceiver requires multi-mode fiber optic cables with SC connectors. It is optimized for use with 850nm wavelength multi-mode fiber, supporting distances up to 550 meters. This makes it suitable for short to medium-range deployments within buildings or campuses, where multi-mode fiber offers a cost-effective solution.
Is this GBIC transceiver compatible with my existing network equipment?
Yes, this transceiver is MSA (Multi-Source Agreement) compliant, ensuring broad compatibility with a wide range of networking equipment from various manufacturers that support GBIC slots. It is designed to work with standard Gigabit Ethernet switches, routers, and other devices, but always verify specific compatibility with your hardware model.
What is the reach distance supported by this transceiver?
The transceiver supports a maximum reach distance of 550 meters over multi-mode fiber optic cables. This reach is ideal for intra-building connections, data center interconnects, or links between nearby buildings, providing reliable performance without the need for signal boosters or repeaters in most scenarios.
Does this transceiver support DOM or DDM monitoring features?
No, this GBIC transceiver does not support DOM (Digital Optical Monitoring) or DDM (Digital Diagnostic Monitoring) features. It focuses on core performance for 1000Base-SX applications, offering basic transceiver functionality without advanced monitoring capabilities. For networks requiring real-time diagnostics, consider modules with DOM/DDM support.
What warranty is provided with this GBIC transceiver?
The transceiver comes with a lifetime limited warranty, covering defects in materials and workmanship for the product's lifespan. Manufactured in the United States, it is backed by reliable support, ensuring long-term durability and peace of mind for critical network deployments.
