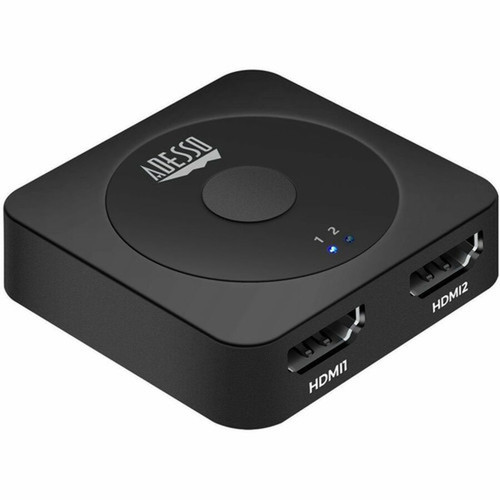

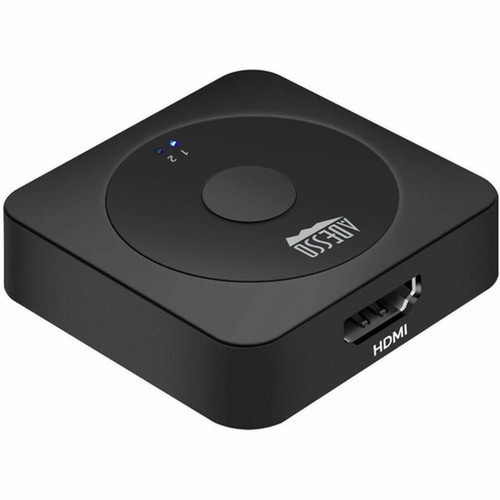

Adesso AUH-5100 HDMI Switch - 2 x 2 4K UHD - 3840 x 2160 Video Switcher for TV - Computer - Projector - Gaming Consoles
Business volume discounts
Technical guidance
Preparation & staging
QC · ON · AB · BC
Product Features
Technical Overview
This HDMI switch operates as a 2x2 matrix, allowing any of the two HDMI inputs to be routed to either or both of the two HDMI outputs. The switch supports HDMI 2.0 specifications for 4K video at 60Hz refresh rates, ensuring compatibility with modern high-resolution displays and media sources.
The device uses standard HDMI cables for all connections and requires no external power supply, drawing minimal power directly from the connected source devices. Video signals pass through without compression or quality degradation, maintaining the original resolution and color depth from source to display.
Relevant factors for this section include Connectivity Technology, Device Supported, Graphics Modes, Maximum Video Resolution. When those points are considered together, they give buyers a clearer picture of how the product is equipped, how it fits into deployment, and what kind of day-to-day role it is meant to support.
Key Product Advantages
The AUH-5100 simplifies video distribution by eliminating the need to constantly swap HDMI cables between devices. Users can maintain permanent connections to multiple sources and displays while selecting which content appears on which screen through the switch's straightforward operation.
Simultaneous Multi-Display Output
Send the same video signal to two different displays simultaneously, ideal for presentations, digital signage, or monitoring applications where identical content needs to appear in multiple locations.
- Mirror content across two screens
- Maintain signal integrity on both outputs
- No signal splitting required
Broad Device Compatibility
Works with virtually any HDMI-equipped device including gaming consoles, media players, computers, and professional AV equipment. The switch automatically detects and adapts to different source resolutions.
- Supports Xbox and PlayStation consoles
- Compatible with Windows, macOS, and Linux computers
- Works with 4K TVs and projectors
Deployment / Use Cases
This HDMI switch serves well in environments where limited HDMI ports on displays need to be shared among multiple source devices. The dual output capability enables both extended desktop setups and mirrored display configurations depending on user requirements.
In retail and hospitality settings, the switch can distribute promotional content from a single media player to multiple screens throughout a space. For home entertainment systems, it allows gaming consoles and streaming devices to share access to primary and secondary televisions without cable swapping.
Conference Room AV
Connect both a presentation laptop and a video conferencing system to the room's primary display and secondary confidence monitor. Switch between sources instantly during meetings.
Gaming Setup Management
Route Xbox and PlayStation consoles to either a gaming monitor or living room television. Play on different screens without disconnecting and reconnecting cables between gaming sessions.
Physical Profile
Weighing less than one ounce, the AUH-5100 features an ultra-compact form factor that fits discreetly behind displays or within cable management systems. The lightweight construction makes it suitable for temporary installations and portable AV kits while maintaining durability for permanent installations.
The physical profile is practical for deployment planning because the dimensions and weight are clearly defined: 0.88 oz (24.95 g). This helps confirm rack, shelf, desk, or cabinet fit before installation.
- Weight
- 0.88 oz (24.95 g)
Highlights
- 2 HDMI inputs and 2 HDMI outputs for flexible video routing
- Supports 4K UHD resolution at 3840x2160 for crystal-clear video
- Compatible with TVs, computers, projectors, Xbox, and PlayStation devices
- Maintains Full HD and 4K graphics modes without quality loss
- Ultra-lightweight design at just 0.88 ounces for easy placement
- RoHS and WEEE compliant for environmental responsibility
- Plug-and-play operation requires no external power supply
- Manufactured in Taiwan with quality construction standards
Specifications
| Specifications | |
|---|---|
| Manufacturer | Adesso, Inc |
| Manufacturer Part Number | AUH-5100 |
| Brand Name | Adesso |
| Product Model | AUH-5100 |
| Product Name | HDMI Switch |
| Product Type | Audio/Video Switchbox |
| Technical Information | |
| Connectivity Technology | Cable |
| Device Supported | TV,Computer,Projector,Xbox,PlayStation |
| Video | |
| Graphics Modes | 4K,Full HD |
| Maximum Video Resolution | 3840 x 2160 |
| Interfaces/Ports | |
| HDMI In | Yes |
| HDMI Out | Yes |
| Number of HDMI Inputs | 2 |
| Number of HDMI Outputs | 2 |
| Physical Characteristics | |
| Weight (Approximate) | 0.88 oz (24.95 g) |
| Miscellaneous | |
| Environmentally Friendly | Yes |
| Environmental Compliance | Restriction of Hazardous Substances (RoHS),Waste Electrical and Electronic Equipment Directive (WEEE) |
| Country of Origin | Taiwan |
FAQ
What is the maximum video resolution supported by this HDMI switch?
The Adesso AUH-5100 supports up to 4K Ultra HD resolution at 3840 x 2160 pixels. This ensures compatibility with modern high-definition displays, gaming consoles, and media players that output 4K content. The switch maintains this resolution across both HDMI outputs simultaneously without compression or quality degradation.
How many devices can I connect to this HDMI switch?
This switch provides two HDMI input ports for source devices and two HDMI output ports for displays. You can connect up to two source devices such as gaming consoles, computers, or media players, and route their signals to up to two different monitors, televisions, or projectors simultaneously.
Does this switch require external power or batteries?
No, the AUH-5100 operates without external power or batteries. It draws minimal power directly from the connected HDMI source devices through the cable connections. This plug-and-play design simplifies installation and eliminates the need for power outlets near the switch location.
What types of devices are compatible with this HDMI switch?
The switch works with any HDMI-equipped device including televisions, computer monitors, projectors, gaming consoles like Xbox and PlayStation, media streaming devices, and desktop or laptop computers. It automatically detects and adapts to different source resolutions from 480p up to 4K UHD.
Can I send different video sources to each output simultaneously?
Yes, the 2x2 matrix switching capability allows you to route either input to either or both outputs. You can display the same content on both screens for mirrored presentations, or send different sources to different displays for extended desktop or multi-source monitoring applications.
What environmental standards does this product meet?
The AUH-5100 complies with Restriction of Hazardous Substances (RoHS) and Waste Electrical and Electronic Equipment Directive (WEEE) standards. These regulations ensure the product contains minimal hazardous materials and supports proper recycling procedures at end of life.
