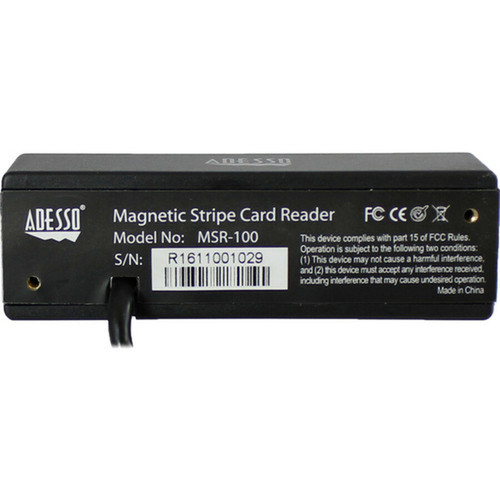

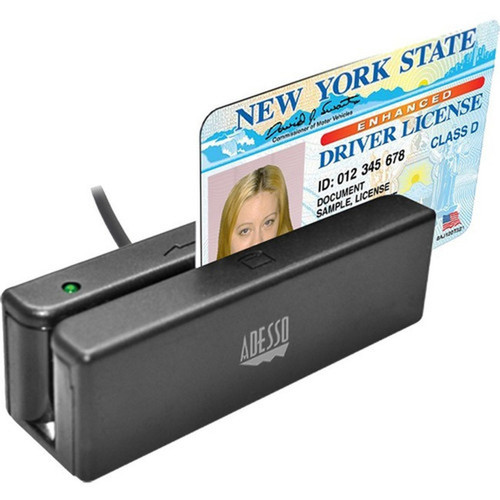

Adesso MSR-100 Magnetic Stripe Card Reader - Triple Track - 50 in/s (1270 mm/s) - USB
Business volume discounts
Technical guidance
Preparation & staging
QC · ON · AB · BC
Product Features
Technical Overview
The MSR-100 delivers precise magnetic stripe decoding with a swipe speed range from 3 in/s (76.20 mm/s) minimum to 50 in/s (1270 mm/s) maximum. It reads all three tracks (Track 1, Track 2, Track 3) with a density of 210 BPI on Tracks 1 and 3, and supports 210 BPI or 75 BPI on Track 2, accommodating up to 75 characters per track as per ISO standards.
The reader uses F2F encoding and operates with a coercive force range of 300-4000 Oe, making it suitable for both low and high-coercivity cards. Environmental specifications include a working temperature of 0-40°C and humidity of 10%-90%, ensuring stable performance in typical office and retail conditions.
This section brings together practical product details such as Magnetic Stripe Track Configuration, Magnetic Stripe Track Number, Minimum Swipe Speed, USB, so buyers can judge configuration, deployment fit, and day-to-day suitability with less guesswork.
Key Product Advantages
The MSR-100 combines speed, reliability, and compact design for seamless integration into demanding transactional environments.
These strengths make the product easier to deploy and manage in real environments, especially where reliability, usability, and day-to-day operational continuity matter. Notable benefits include Triple-track reading, High-speed 50 in/s swipe, 500,000 swipe durability, Bidirectional operation, USB plug-and-play.
For buyers comparing similar models, the strongest advantage is usually the balance between dependable day-to-day operation and a simpler rollout experience. That means less time spent troubleshooting fit, compatibility, or user adoption after installation, which is especially important for shared business environments and repeat purchasing decisions.
Deployment / Use Cases
This magnetic stripe reader is ideal for retail point-of-sale systems where fast, accurate card swipes are essential for processing credit, debit, and loyalty cards. Its compact footprint and USB connectivity make it easy to integrate into countertop setups, kiosks, or portable payment terminals.
Beyond retail, the MSR-100 serves access control systems for reading employee ID cards, time and attendance applications for clock-in/out functions, and membership management in gyms or clubs. Compatibility with legacy Windows operating systems ensures it can be deployed in environments with older hardware while still supporting modern Windows 10 installations.
This section brings together practical product details such as Magnetic Stripe Track Configuration, Magnetic Stripe Track Number, Minimum Swipe Speed, USB, so buyers can judge configuration, deployment fit, and day-to-day suitability with less guesswork.
Physical Profile
Measuring just 3.60 inches in length, 0.90 inches in width, and 1 inch in height, the MSR-100 occupies minimal desk space. Its lightweight 4-ounce construction allows for flexible placement, whether mounted, placed flat, or integrated into custom enclosures. The reader's small form factor does not compromise durability, with a robust housing designed for daily commercial use.
The physical profile is practical for deployment planning because the dimensions and weight are clearly defined: 1" (25.40 mm), 0.90" (22.86 mm), 4 oz (113.40 g). This helps confirm rack, shelf, desk, or cabinet fit before installation.
- Width
- 0.90" (22.86 mm)
- Height
- 1" (25.40 mm)
- Weight
- 4 oz (113.40 g)
- Length
- 3.60" (91.44 mm)
Highlights
- Triple-track magnetic stripe reader for Track 1, 2, and 3
- High maximum swipe speed of 50 in/s (1270 mm/s)
- Durable read head rated for 500,000 swipes
- Bidirectional reading for convenient card swiping
- USB interface for plug-and-play connectivity
- Compatible with Windows 2000 through Windows 10
- Compact dimensions: 3.60" × 0.90" × 1"
- Lightweight at 4 oz for easy placement
- Certified to FCC and CE standards
- 1-year limited warranty
Specifications
| Specifications | |
|---|---|
| Manufacturer | Adesso, Inc |
| Manufacturer Part Number | MSR-100 |
| Brand Name | Adesso |
| Product Model | MSR-100 |
| Product Name | MSR-100 Magnetic Stripe Card Reader |
| Product Type | Magnetic Stripe Reader |
| Technical Information | |
| Magnetic Stripe Track Configuration | Triple Track |
| Magnetic Stripe Track Number | Track 1,Track 2,Track 3 |
| Minimum Swipe Speed | 3 in/s (76.20 mm/s) |
| Maximum Swipe Speed | 50 in/s (1270 mm/s) |
| Number of Swipes (Head Life) | 500000 |
| Magnetic Stripe Format | ISO 7810,ISO 7811 |
| Bi-directional Reading | Yes |
| Interfaces/Ports | |
| USB | Yes |
| Power Description | |
| Input Voltage | 5 V DC |
| Physical Characteristics | |
| Height | 1" (25.40 mm) |
| Width | 0.90" (22.86 mm) |
| Length | 3.60" (91.44 mm) |
| Weight (Approximate) | 4 oz (113.40 g) |
| Miscellaneous | |
| Additional Information | Encode Mode: F2F Standard: ISO7810?ISO7811-1/2/3/4/5 Compatible Operation systems: Windows® 2000 / XP / Vista / 7 / 8 / 10 Data Format: according with the requirement of user Card Swipe Speed: 10-140cm/s Life circle of the Head: ?500000 times Coercive Force: 300-4000oe The Density of Magnetic Stripe: Track 1-210BPI with max 75 characters Track 2-210BPI with max 75 characters or 75BPI with 37 characters; Track 3-210BPI with max 75 characters Environment : Working Temperature: 0-40? Working Humidity: 10%- 90% Working Voltage: DC+5V ±5% Working Current: ≤50mA Storage Temperature: -20 -50 ? |
| Certifications & Standards | FCC CE |
| Environmentally Friendly | Yes |
| Environmental Compliance | Waste Electrical and Electronic Equipment Directive (WEEE),Restriction of Hazardous Substances (RoHS) |
| Country of Origin | China |
| Warranty | |
| Limited Warranty | 1 Year |
User Manual
FAQ
What tracks does the Adesso MSR-100 magnetic stripe reader support?
The MSR-100 is a triple-track reader that supports Track 1, Track 2, and Track 3. Track 1 and Track 3 operate at 210 BPI with a maximum of 75 characters, while Track 2 supports either 210 BPI (75 characters) or 75 BPI (37 characters), making it compatible with various card formats including credit, debit, and identification cards.
What is the maximum swipe speed for this card reader?
The Adesso MSR-100 has a maximum swipe speed of 50 inches per second (1270 mm/s), with a minimum required speed of 3 in/s (76.20 mm/s). This high-speed capability ensures reliable data capture even during fast card swipes, which is essential for efficient point-of-sale and access control operations.
How durable is the read head in the MSR-100?
The magnetic read head is rated for 500,000 swipes, providing long-term reliability for high-volume environments. This durability makes the reader suitable for retail, hospitality, and corporate settings where cards are swiped frequently throughout the day.
What are the physical dimensions and weight of the MSR-100?
The reader measures 3.60 inches in length, 0.90 inches in width, and 1 inch in height (91.44 × 22.86 × 25.40 mm). It weighs approximately 4 ounces (113.40 grams), making it compact and lightweight for easy integration into point-of-sale stations, kiosks, or access control panels.
Does the MSR-100 support bidirectional card reading?
Yes, the MSR-100 features bidirectional reading, allowing cards to be swiped in either direction. This enhances user convenience and reduces errors in high-traffic environments where quick, consistent swiping is required for transaction processing or access verification.
What print speed is listed?
Adesso MSR-100 Magnetic Stripe Card Reader - Triple Track - 50 in/s (1270 mm/s) (MSR-100) is described for practical deployment use, and the specification set helps buyers confirm fit, compatibility, and expected day-to-day operation.
What print, scan, copy, or multifunction capability is listed?
Adesso MSR-100 Magnetic Stripe Card Reader - Triple Track - 50 in/s (1270 mm/s) (MSR-100) is described for practical deployment use, and the specification set helps buyers confirm fit, compatibility, and expected day-to-day operation.
What sheet capacity, media size, or paper handling detail is listed?
Adesso MSR-100 Magnetic Stripe Card Reader - Triple Track - 50 in/s (1270 mm/s) (MSR-100) is described for practical deployment use, and the specification set helps buyers confirm fit, compatibility, and expected day-to-day operation.
