Product Features
Technical Overview
The NuScan 2600U achieves a rapid scan rate of 30 scans per second, enabling efficient processing of high-volume barcode workflows. It operates effectively at a scanning distance of up to 12 inches (304.80 mm) and under ambient light conditions as bright as 70,000 lux, ensuring reliable performance in varied lighting environments from dim warehouses to brightly lit retail floors.
This scanner supports an extensive array of barcode symbologies. For 1D barcodes, it reads formats such as Code 128, Code 39, UPC-A, UPC-E, EAN-13, and Interleaved 2 of 5. For 2D barcodes, it handles QR Code, Data Matrix, PDF417, MicroPDF417, MicroQR, and Aztec. The minimum print contrast requirement is 35%, allowing it to decode barcodes with moderate print quality.
Relevant factors for this section include Connectivity Technology, Scanning Capability, Barcode Symbology Supported, Host Interface. When those points are considered together, they give buyers a clearer picture of how the product is equipped, how it fits into deployment, and what kind of day-to-day role it is meant to support.
Key Product Advantages
The NuScan 2600U offers distinct advantages for businesses seeking a dependable, high-performance scanning solution. Its combination of speed, durability, and broad compatibility addresses common pain points in data capture workflows.
High-Speed Operation
With a 30 scan/s rate, this scanner minimizes wait times and bottlenecks in checkout lines, shipping departments, and inventory audits, boosting overall operational efficiency.
- 30 scans per second
- Reduces processing delays
- Ideal for high-volume environments
Rugged and Reliable

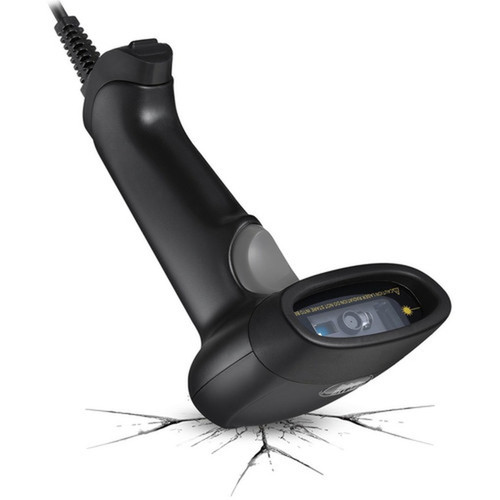

The drop-protection design safeguards against damage from accidental drops up to 1.5 meters, reducing downtime and replacement costs in active workspaces.
- Withstands 1.5-meter drops
- Durable construction
- Minimizes operational disruptions
Wide Compatibility
Support for PC, Mac, and Android platforms, along with USB connectivity, ensures seamless integration into existing IT infrastructures without requiring additional drivers or complex setup.
- Works with PC, Mac, Android
- Plug-and-play USB
- No driver installation needed
Deployment / Use Cases
The Adesso NuScan 2600U is tailored for diverse commercial and institutional settings where accurate, rapid barcode scanning is critical. Its handheld form factor and cable connectivity make it particularly suitable for fixed workstation environments like retail counters, library circulation desks, and medical record rooms.
In logistics and warehouse operations, the scanner's long-range capability and tolerance for high ambient light enable efficient scanning of pallet labels and inventory tags from a distance. Healthcare facilities benefit from its ability to read patient wristband barcodes and medication labels, supporting patient safety and inventory management protocols.
Retail Point of Sale
Ideal for fast-paced checkout counters, scanning product barcodes quickly and accurately to streamline customer transactions and reduce queue times.
Warehouse Inventory Management
Enables efficient tracking of stock movements and asset identification in storage facilities, with durability suited to industrial environments.
Physical Profile
Designed for ergonomic handheld use, the NuScan 2600U measures 6.57 inches in length, 2.89 inches in width, and 4.15 inches in height, with a lightweight construction of approximately 6.88 ounces. This compact, balanced form factor reduces user fatigue during extended scanning sessions and fits comfortably in hand for precise aiming at barcodes.
The physical profile is practical for deployment planning because the dimensions and weight are clearly defined: 4.15" (105.40 mm), 2.89" (73.50 mm), 6.88 oz (195.04 g). This helps confirm rack, shelf, desk, or cabinet fit before installation.
- Width
- 2.89" (73.50 mm)
- Height
- 4.15" (105.40 mm)
- Weight
- 6.88 oz (195.04 g)
- Length
- 6.57" (167 mm)

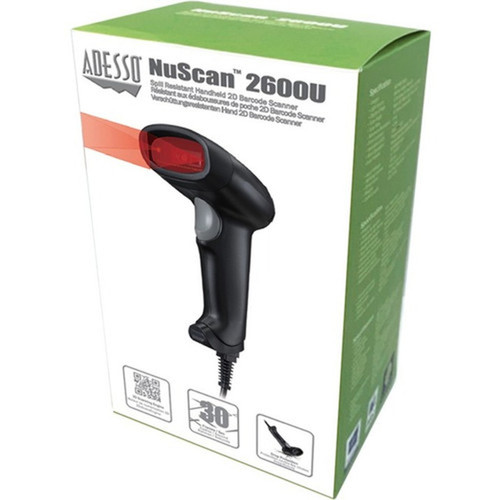

What's in the Box
The package includes the NuScan 2600U handheld 2D barcode scanner and a quick start guide to facilitate immediate setup and operation.
Package contents include NuScan 2600U - Handheld 2D Barcode Scanner Quick Start Guide, NuScan 2600U - Handheld 2D Barcode Scanner. These included items support setup, installation, and immediate deployment without needing to source the core bundled accessories separately.
Highlights
- Scans at 30 scans per second for high-speed data capture
- Supports both 1D and 2D barcode symbologies including QR and Data Matrix
- Cable USB connectivity for reliable, plug-and-play operation
- LED light source provides eye-safe scanning without laser hazards
- Drop-protection design withstands falls up to 1.5 meters
- Works with PC, Mac, and Android platforms
- Long-range scanning up to 12 inches (304.80 mm)
- RoHS compliant for environmental safety
- Ideal for retail, logistics, healthcare, and warehouse use
- Includes quick start guide for easy setup
Specifications
| Specifications | |
|---|---|
| Manufacturer | Adesso, Inc |
| Manufacturer Part Number | NUSCAN2600U |
| Brand Name | Adesso |
| Product Line | NuScan |
| Product Model | 2600U |
| Product Name | NuScan 2600U - Handheld 2D Barcode Scanner |
| Product Type | Barcode Scanner |
| Technical Information | |
| Connectivity Technology | Cable |
| Scanning Capability | 1D,2D |
| Barcode Symbology Supported | 1D: EAN-8 EAN-13 EAN-13 2 add-on EAN-13 5add-on ISSN ISBN UPC-A UPC-E Code 11 Code 32 Code 39 Code 93 Code 128 Codabar Industrial 2 of 5 Interleaved 2 of 5 Matrix 2 of 5 2D: PDF417 MicroPDF417 MicroQR Data Matrix QR Aztec |
| Light Source | LED |
| Scan Rate | 30 scan/s |
| Scanner Range | Long Range |
| Scanning Distance | 12" (304.80 mm) |
| Maximum Ambient Light | 70000 lux |
| Drop Specification | The drop-protection design prevents damage due to accidental drops of less than 1.5 meters. |
| Minimum Print Contrast | 35% |
| Interfaces/Ports | |
| Host Interface | USB |
| Physical Characteristics | |
| Form Factor | Handheld |
| Height | 4.15" (105.40 mm) |
| Width | 2.89" (73.50 mm) |
| Length | 6.57" (167 mm) |
| Weight (Approximate) | 6.88 oz (195.04 g) |
| Miscellaneous | |
| Package Contents | NuScan 2600U - Handheld 2D Barcode Scanner Quick Start Guide |
| Application/Usage | Logistics,Library,Healthcare,Retail,Warehouse |
| Platform Supported | PC,Mac,Android |
| Country of Origin | Taiwan |
| Environmentally Friendly | Yes |
| Environmental Compliance | Restriction of Hazardous Substances (RoHS) |
| Warranty | |
| Limited Warranty | 1 Year |
FAQ
What types of barcodes can the Adesso NuScan 2600U scan?
The NuScan 2600U scans both 1D and 2D barcodes. For 1D, it supports formats like EAN-8, EAN-13, UPC-A, UPC-E, Code 128, Code 39, and Interleaved 2 of 5. For 2D, it reads QR Code, Data Matrix, PDF417, MicroPDF417, MicroQR, and Aztec. This wide compatibility makes it suitable for retail, logistics, and inventory applications.
How fast does this barcode scanner operate?
The scanner operates at a speed of 30 scans per second. This high scan rate allows for rapid processing of barcodes in busy environments like checkout counters or shipping departments, reducing wait times and improving workflow efficiency.
What is the maximum scanning distance for the NuScan 2600U?
The maximum scanning distance is 12 inches (304.80 mm). This long-range capability enables users to scan barcodes from a comfortable distance, which is useful for reading labels on shelves, pallets, or larger items without needing to bring the scanner into direct contact.
Is the Adesso NuScan 2600U compatible with Mac computers?
Yes, the NuScan 2600U is compatible with Mac computers, as well as PCs and Android devices. It uses USB cable connectivity for plug-and-play operation, typically requiring no additional drivers for basic functionality on supported platforms.
Does this scanner have any durability features?
Yes, the NuScan 2600U features a drop-protection design that prevents damage from accidental drops of less than 1.5 meters. This rugged construction helps ensure reliability in active environments like retail stores or warehouses, where equipment may be subject to occasional mishandling.
What is included in the box with the NuScan 2600U?
The box includes the NuScan 2600U handheld 2D barcode scanner and a quick start guide. The quick start guide provides instructions for setup and basic operation, allowing users to get started quickly without extensive documentation.
