Adesso NUSCAN 5200 Barcode Scanner - Wireless Bluetooth - 1D/2D - 18" Range - IP67 Waterproof - Antimicrobial
Business volume discounts
Technical guidance
Preparation & staging
QC · ON · AB · BC
Product Features
Technical Overview
At its core, the NuScan 5200 employs a CMOS image sensor with 640 x 480 resolution and an LED light source for precise barcode capture. It supports a comprehensive range of 1D and 2D symbologies, from common retail codes like UPC and EAN to industrial standards such as Code 39 and DataMatrix.

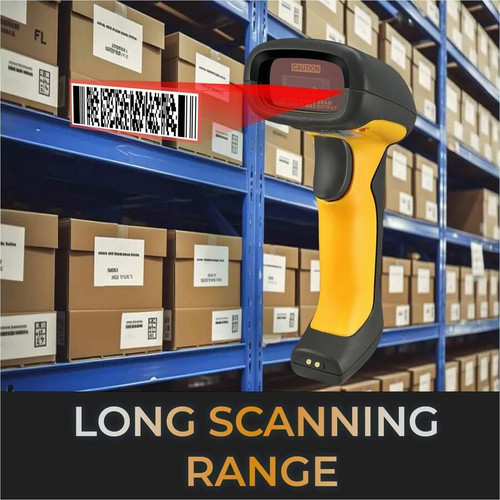

The scanner achieves a long-range scanning distance of 18 inches (457.20 mm) with a bi-directional scan pattern, accommodating flexible positioning. It maintains reliable performance under high ambient light up to 100,000 lux and handles motion tolerance up to 24 inches per second (609.60 mm/s) for fast-paced operations.
Relevant factors for this section include Connectivity Technology, Scanning Capability, Barcode Symbology Supported, Bluetooth. When those points are considered together, they give buyers a clearer picture of how the product is equipped, how it fits into deployment, and what kind of day-to-day role it is meant to support.
Key Product Advantages
This scanner delivers exceptional value through its dual wireless flexibility, industrial durability, and versatile application support. It eliminates cable clutter with both Bluetooth and 2.4 GHz connectivity options, pairing seamlessly with smartphones, tablets, and Windows-based systems.
Wireless Freedom & Compatibility

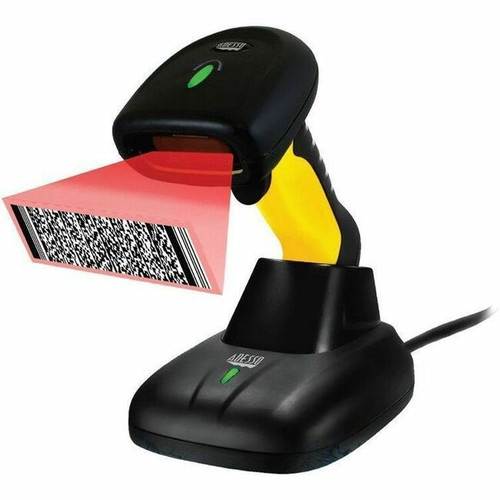

Choose between Bluetooth for mobile device pairing or 2.4 GHz RF for stable, long-range connections to USB hosts. The included charging cradle often integrates a built-in receiver for convenient docking and data transmission.
Ruggedized for Challenging Environments

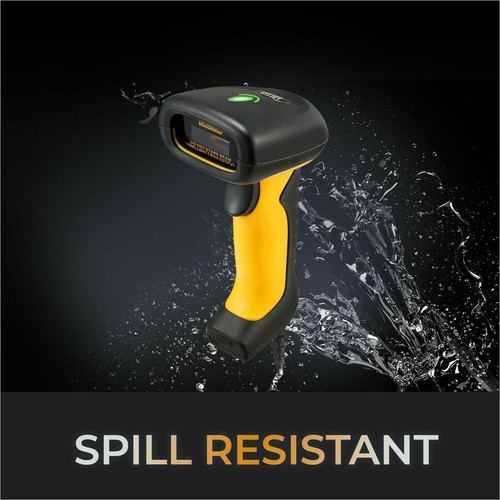

IP67 certification ensures complete protection against dust ingress and temporary immersion in water up to 1 meter. Combined with shock resistance and antimicrobial properties, the scanner thrives in wet, dirty, or hygienic-sensitive workplaces.
Superior Scanning Performance
Engineered for accuracy, the scanner reads low-contrast barcodes (30% minimum print contrast) and small elements down to 5 mil. Its wide reading angles and motion tolerance accommodate imperfect presentations during rapid scanning sessions.
Deployment / Use Cases
The NuScan 5200 is ideally suited for verticals where reliability, mobility, and durability are non-negotiable. Its wireless design and robust construction make it a go-to solution for dynamic scanning tasks across diverse operational settings.
In retail and pharmacy environments, staff can quickly scan items at checkout or during inventory audits without being tethered to a terminal. Warehouses and logistics centers benefit from its long-range scanning and drop resistance when managing pallet labels and shipment tracking. Libraries and healthcare facilities leverage the antimicrobial feature and compatibility with mobile devices for asset management and patient record integration.
Relevant factors for this section include Connectivity Technology, Scanning Capability, Barcode Symbology Supported, Bluetooth. When those points are considered together, they give buyers a clearer picture of how the product is equipped, how it fits into deployment, and what kind of day-to-day role it is meant to support.
Physical Profile
Encased in a sleek black housing, the scanner measures 6.89" (175 mm) in length, 2.83" (72 mm) in width, and 3.94" (100 mm) in height, offering a balanced grip. Weighing only 5.64 oz (160 g), it minimizes user fatigue during extended shifts. The handheld form factor is optimized for one-handed operation, with intuitive notification LEDs and audible beeps confirming successful scans.
- Width
- 2.83" (72 mm)
- Height
- 3.94" (100 mm)
- Weight
- 5.64 oz (160 g)
- Length
- 6.89" (175 mm)
What's in the Box
The package includes the NuScan 5200 barcode scanner and a quick start guide to facilitate immediate setup and operation.
Package contents include NuScan 5200 Barcode Scanner Quick Start Guide, NuScan 5200 Barcode Scanner. These included items support setup, installation, and immediate deployment without needing to source the core bundled accessories separately.
Highlights
- Dual wireless connectivity: Bluetooth and 2.4 GHz RF
- IP67 waterproof, dustproof, and antimicrobial coating
- Withstands 7-meter drop protection for rugged use
- Scans both 1D and 2D barcodes with long 18" range
- CMOS image sensor with 640 x 480 resolution
- Supports smartphones and Windows platforms
- Operating temperature range: -4°F to 122°F (-20°C to 50°C)
- Includes charging cradle with built-in receiver (common configuration)
- Ideal for retail, warehouse, healthcare, and library applications
- Lightweight handheld design at 5.64 oz (160 g)
Specifications
| Specifications | |
|---|---|
| Manufacturer | Adesso, Inc |
| Manufacturer Part Number | NUSCAN 5200 |
| Brand Name | Adesso |
| Product Line | NuScan |
| Product Model | 5200 |
| Product Name | NuScan 5200 Barcode Scanner |
| Packaged Quantity | 1 / Piece |
| Product Type | Barcode Scanner |
| Technical Information | |
| Connectivity Technology | Cable/Wireless |
| Scanning Capability | 1D,2D |
| Barcode Symbology Supported | 1D: UPC-A/E EAN13/8 Code 128 GS1-128 Code 39(Plain & Full ASCII) Code 93 Code 11 Code 25(ITF/Industrial/Matrix/IATA Standard) Codabar MSI/MSI Plessey GS1 DataBar 2D: DataMatrix QR Code Micro QR Code PDF417 |
| Light Source | LED |
| Image Sensor Type | CMOS |
| Scan Pattern | Bi-directional |
| Scanner Range | Long Range |
| Scanning Distance | 18" (457.20 mm) |
| Reading Angle (Pitch) | 45° |
| Reading Angle (Roll) | 50° |
| Motion Tolerance | 24 in/s (609.60 mm/s) |
| Maximum Ambient Light | 100000 lux |
| Drop Specification | Withstanding 7m freefall drops |
| Minimum Print Contrast | 30% |
| Minimum Element Resolution (Code 39) | 5 mil (0.13 mm) |
| Minimum Element Resolution (DataMatrix) | 10 mil (0.25 mm) |
| Image Sensor Resolution | 640 x 480 |
| Features | Notification LED,Beep |
| Network & Communication | |
| Bluetooth | Yes |
| Radio Frequency | Yes |
| Interfaces/Ports | |
| Host Interface | USB |
| Environmental Conditions | |
| Operating Temperature | -4°F (-20°C) to 122°F (50°C) |
| Storage Temperature | -40°F (-40°C) to 158°F (70°C) |
| Humidity (Non-condensing) | 5% to 95% |
| Physical Characteristics | |
| Form Factor | Handheld |
| Rugged | Yes |
| Color Family | Black |
| Product Color | Black |
| Durability | Water Proof,Drop Resistant,Spill Resistant,Shock Resistant |
| Height | 3.94" (100 mm) |
| Width | 2.83" (72 mm) |
| Length | 6.89" (175 mm) |
| Weight (Approximate) | 5.64 oz (160 g) |
| Miscellaneous | |
| Package Contents | NuScan 5200 Barcode Scanner Quick Start Guide |
| Ingress Protection (IP) Rating | IP67 |
| Application/Usage | Retail,Warehouse,Library,Healthcare,Pharmacy |
| Platform Supported | Smartphone,Windows |
| Country of Origin | China |
FAQ
What wireless connectivity options does the Adesso NuScan 5200 support?
The scanner offers dual wireless connectivity: Bluetooth for pairing with mobile devices like smartphones and tablets, and 2.4 GHz radio frequency for a stable, long-range connection to USB hosts. This flexibility allows you to choose the best option for your environment, whether you need mobility with a phone or reliable desktop integration.
Is the NuScan 5200 waterproof and durable enough for industrial use?
Yes, it features an IP67 rating, meaning it is completely dust-tight and can withstand temporary immersion in water up to 1 meter deep. Additionally, it is built to survive 7-meter freefall drops and is resistant to spills, shocks, and impacts. The antimicrobial coating also helps maintain hygiene in high-touch settings like healthcare or retail.
What types of barcodes can this scanner read?
It reads both 1D and 2D barcodes, supporting a wide range of symbologies. For 1D, this includes UPC-A/E, EAN13/8, Code 128, GS1-128, Code 39, Code 93, Code 11, Code 25, Codabar, MSI, and GS1 DataBar. For 2D, it handles DataMatrix, QR Code, Micro QR Code, and PDF417, making it versatile for retail, logistics, and inventory applications.
What is the maximum scanning distance of the NuScan 5200?
The scanner has a long-range scanning distance of 18 inches (457.20 mm), allowing you to read barcodes from a comfortable distance without needing to get too close. This is particularly useful in warehouse settings where items may be on high shelves or in retail for quick checkout scanning.
Which operating systems or platforms are compatible with this barcode scanner?
It is compatible with smartphones (via Bluetooth) and Windows-based systems (via USB or wireless). This cross-platform support ensures you can integrate it into existing setups, whether using mobile devices for on-the-go scanning or traditional PCs for fixed station operations.
What is included in the box with the Adesso NuScan 5200?
The package includes the NuScan 5200 barcode scanner itself and a quick start guide. Based on common configurations, it often also comes with a charging cradle that has a built-in receiver for convenient docking and wireless data transmission, though you should verify specific inclusions with your supplier.
