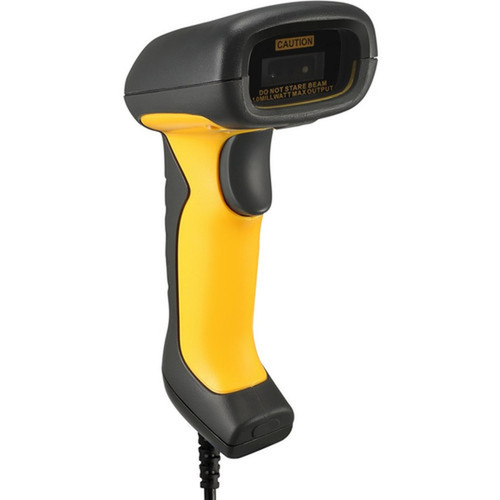

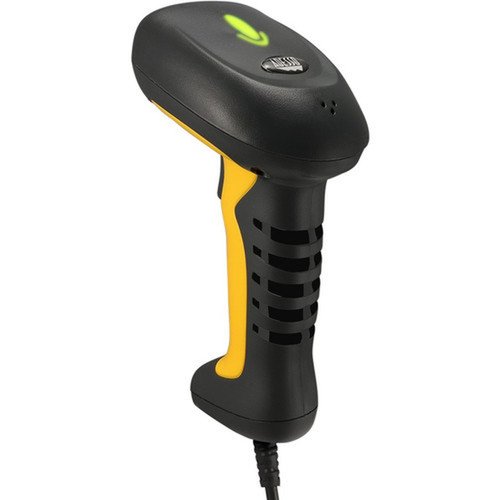

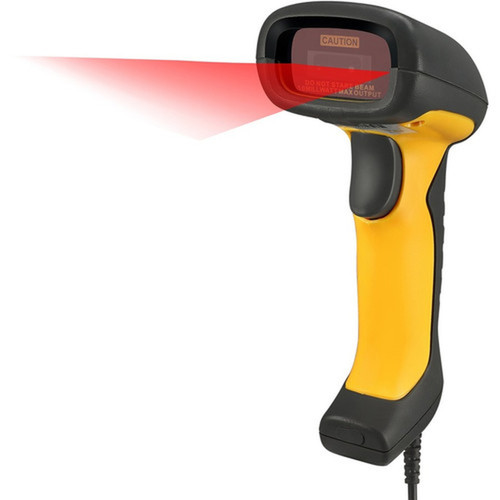

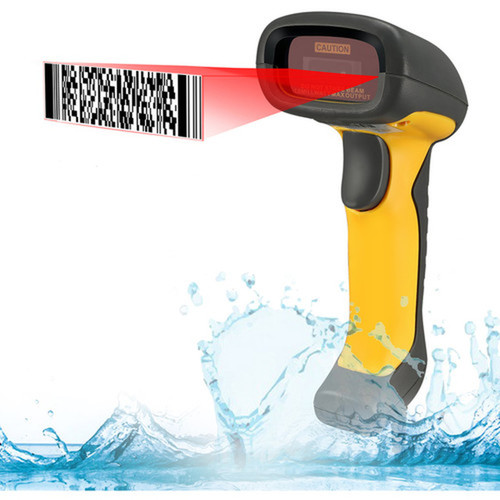

Adesso NUSCAN 5200TU Antimicrobial & Waterproof 2D Barcode Scanner - Handheld - 12" Scan Distance - 1D/2D - IP67 - USB Cable
Business volume discounts
Technical guidance
Preparation & staging
QC · ON · AB · BC
Product Features
Technical Overview
This scanner supports a comprehensive range of barcode symbologies, including 1D formats like UPC-A/E, Code 128, Code 39, and GS1 DataBar, plus 2D formats such as PDF417, Data Matrix, QR Code, and Micro QR. It achieves a minimum element resolution of 5 mil (0.13 mm) for Code 39 and 10 mil (0.25 mm) for DataMatrix, ensuring precise reads on high-density or small-format labels.
The technical design includes generous reading angles of 45° pitch and 50° roll, accommodating flexible scanning positions without sacrificing accuracy. A motion tolerance of 24 inches per second allows for rapid hand movements during high-volume scanning sessions. The unit is built to withstand 7-meter freefall drops, providing exceptional durability for mobile or rugged use cases.
Barcode Symbology Support
The scanner decodes all major 1D and 2D barcode types used in retail, logistics, healthcare, and industrial labeling, ensuring compatibility with existing systems and label standards.
Key Product Advantages
The NuScan 5200TU delivers distinct advantages through its specialized construction and performance features, addressing common pain points in barcode scanning deployments.
Hygienic and Rugged Design
Antimicrobial treatment inhibits microbial growth on the scanner surface, while the IP67 waterproof and dustproof rating allows safe operation in wet, dirty, or wash-down environments.
- IP67 protection against dust and water immersion
- Antimicrobial surface for reduced contamination risk
- 7m drop resistance for shock protection
Extended Scanning Range
A 12-inch scanning distance provides flexibility for reading barcodes at a distance, reducing user fatigue and enabling scans from awkward angles or through protective packaging.
- 12" optimal scan distance
- Long-range capability for flexible positioning
- Reduces need for precise alignment
Deployment / Use Cases
The Adesso NuScan 5200TU is purpose-built for environments where scanning equipment faces physical stress, moisture exposure, or stringent hygiene requirements. Its combination of durability, scanning performance, and connectivity makes it a versatile tool across multiple verticals.
In healthcare settings, the antimicrobial properties and waterproof design support infection control protocols, allowing the scanner to be used in patient rooms, pharmacies, or sterile processing areas. For logistics and warehouse operations, the drop resistance and long scan range streamline inventory management, parcel sorting, and receiving processes, even in outdoor or damp conditions.
Industrial and Retail Applications
Manufacturing floors, retail backrooms, and library circulation desks benefit from the scanner's ability to read damaged, low-contrast, or high-density barcodes reliably under continuous use.
Environmentally Compliant
The scanner meets RoHS environmental standards, ensuring it is free of hazardous substances and suitable for organizations with green procurement policies.
Physical Profile
Designed for ergonomic handheld use, the scanner measures 7 inches in length, 3 inches in width, and 4 inches in height, with a lightweight construction of just 5.60 ounces. The dual-color yellow and black finish provides high visibility in busy environments while offering a professional appearance. The compact form factor fits comfortably in hand for extended scanning sessions, and the durable housing withstands impacts and environmental exposure without compromising performance.
- Width
- 3" (76.20 mm)
- Height
- 4" (101.60 mm)
- Weight
- 5.60 oz (158.76 g)
- Length
- 7" (177.80 mm)
What's in the Box
The package includes the NuScan 5200TU scanner and a quick start user guide to facilitate immediate setup and operation.
Package contents include NuScan 5200TU- Antimicrobial & Waterproof 2D Barcode Scanner Quick Start User Guide, NuScan 5200TU- Antimicrobial & Waterproof 2D Barcode Scanner. These included items support setup, installation, and immediate deployment without needing to source the core bundled accessories separately.
Highlights
- Antimicrobial and waterproof (IP67) construction for hygienic, durable use
- Handheld 2D barcode scanner with 12-inch scanning distance
- Supports 1D and 2D symbologies including QR, Data Matrix, and Code 128
- CMOS image sensor for accurate reads on low-contrast or damaged labels
- USB cable connectivity for plug-and-play integration
- Withstands 7-meter freefall drops and 24 in/s motion tolerance
- Dual-color yellow and black design for high visibility
- RoHS compliant and environmentally friendly
- Ideal for industrial, healthcare, logistics, library, and retail applications
- Includes quick start guide for easy setup
Specifications
| Specifications | |
|---|---|
| Manufacturer | Adesso, Inc |
| Manufacturer Part Number | NUSCAN 5200TU |
| Brand Name | Adesso |
| Product Line | NuScan |
| Product Model | 5200TU |
| Product Name | NuScan 5200TU- Antimicrobial & Waterproof 2D Barcode Scanner |
| Product Type | Barcode Scanner |
| Technical Information | |
| Connectivity Technology | Cable |
| Scanning Capability | 1D,2D |
| Barcode Symbology Supported | 1D: UPC-A/E EAN13/8 Code 128 GS1-128 Code 39 (Plain&Full ASCII) Code 93 Code 11 Code 25 (ITF/Industrial/Matrix/IATA Standard) Codabar MSI/MSI Plessey GS1 DataBar 2D: PDF 417 Data Matrix QR Micro QR |
| Image Sensor Type | CMOS |
| Scanner Range | Long Range |
| Scanning Distance | 12" (304.80 mm) |
| Reading Angle (Pitch) | 45° |
| Reading Angle (Roll) | 50° |
| Motion Tolerance | 24 in/s (609.60 mm/s) |
| Drop Specification | Withstanding 7m freefall drops |
| Minimum Print Contrast | 30% |
| Minimum Element Resolution (Code 39) | 5 mil (0.13 mm) |
| Minimum Element Resolution (DataMatrix) | 10 mil (0.25 mm) |
| Interfaces/Ports | |
| Host Interface | USB |
| Physical Characteristics | |
| Form Factor | Handheld |
| Color Family | Dual Color |
| Product Color | Yellow,Black |
| Height | 4" (101.60 mm) |
| Width | 3" (76.20 mm) |
| Length | 7" (177.80 mm) |
| Weight (Approximate) | 5.60 oz (158.76 g) |
| Miscellaneous | |
| Package Contents | NuScan 5200TU- Antimicrobial & Waterproof 2D Barcode Scanner Quick Start User Guide |
| Ingress Protection (IP) Rating | IP67 |
| Application/Usage | Industrial,Healthcare,Logistics,Library,Retail |
| Environmentally Friendly | Yes |
| Environmental Compliance | Restriction of Hazardous Substances (RoHS) |
User Manual
FAQ
What does the IP67 rating mean for this barcode scanner?
The IP67 rating indicates that the Adesso NuScan 5200TU is completely dust-tight (IP6X) and can withstand temporary immersion in water up to 1 meter deep for 30 minutes (IPX7). This makes it suitable for use in wet environments, wash-down areas, or outdoor conditions where exposure to dust and moisture is common.
What types of barcodes can this scanner read?
This scanner reads both 1D and 2D barcode symbologies. Supported 1D formats include UPC-A/E, EAN13/8, Code 128, GS1-128, Code 39, Code 93, Code 11, Code 25, Codabar, MSI/Plessey, and GS1 DataBar. Supported 2D formats include PDF417, Data Matrix, QR Code, and Micro QR, covering most standard barcodes used in retail, logistics, healthcare, and industrial applications.
How far away can I scan a barcode with this device?
The optimal scanning distance is 12 inches (304.80 mm), which is considered a long-range capability for handheld barcode scanners. This distance allows users to scan barcodes without needing to bring the scanner into direct contact with the label, providing flexibility in positioning and reducing user fatigue during extended scanning sessions.
Is this scanner suitable for healthcare environments?
Yes, the NuScan 5200TU is well-suited for healthcare settings due to its antimicrobial surface treatment, which helps inhibit microbial growth, and its IP67 waterproof rating, which allows for cleaning and disinfection. These features support infection control protocols in pharmacies, patient rooms, laboratories, and sterile processing areas.
What connectivity options does this barcode scanner have?
The scanner connects via a USB cable interface, providing a reliable, plug-and-play connection to computers, point-of-sale systems, or other host devices. This wired connectivity ensures stable data transmission without wireless interference, making it ideal for fixed or semi-mobile deployment in retail, warehouse, or industrial setups.
Can this scanner handle high-volume or rugged use?
Absolutely. The scanner is built to withstand 7-meter freefall drops, has a motion tolerance of 24 inches per second for fast hand movements, and features a durable housing that resists impacts. These ruggedness characteristics, combined with the IP67 rating, make it reliable for high-volume scanning in demanding environments like warehouses, manufacturing floors, or logistics centers.
