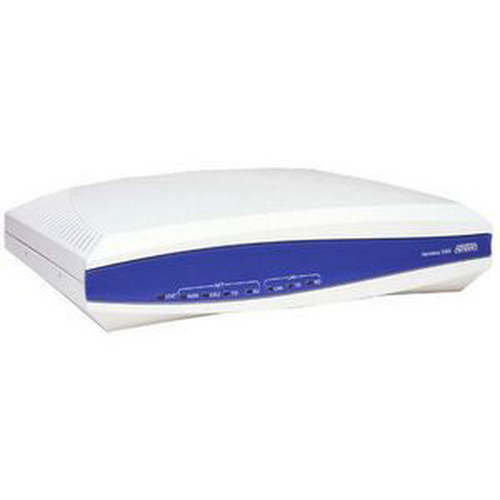

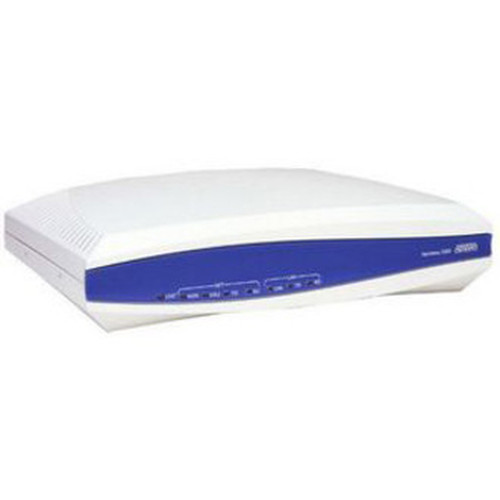

Adtran 4200863L1 NetVanta 3200 Access Router - 3 Ports - T-carrier Support - Fast Ethernet - Desktop Form Factor
Business volume discounts
Technical guidance
Preparation & staging
QC · ON · AB · BC
Product Features
Technical Overview
The NetVanta 3200 features a total of three ports, including one network RJ-45 port and a dedicated management port for configuration control. It supports T-carrier connections, allowing integration with service provider links for WAN access, and utilizes Fast Ethernet technology to achieve data transfer rates up to 100 Mb/sec. The router includes one expansion slot for a Network Interface Module (NIM), offering flexibility for future network upgrades or additional interface requirements.
Relevant factors for this section include Total Number of Ports, Management Port, Number of Network (RJ-45) Ports, Carrier Supported. When those points are considered together, they give buyers a clearer picture of how the product is equipped, how it fits into deployment, and what kind of day-to-day role it is meant to support.
A strong technical summary explains how the product's interfaces, hardware profile, and operating characteristics work together in real deployment. Buyers often need this context to confirm compatibility with existing devices, expected performance in daily use, and whether installation will be straightforward for IT staff or end users.
Key Product Advantages
This router combines essential networking features in a user-friendly desktop form factor, prioritizing ease of deployment and management. Its compact design and straightforward port configuration reduce installation time and simplify ongoing maintenance.
Reliable Edge Connectivity
With T-carrier support and Fast Ethernet, the NetVanta 3200 ensures consistent performance for small-scale network environments, handling data transfers efficiently up to 1.544 Mbps over service provider links.
- Supports DSX-1 technology for optimized data rates
- Fast Ethernet port enables 100 Mb/sec wired connections
Simplified Network Management
The dedicated management port allows administrators to configure and monitor the router settings remotely, enhancing control over network operations without requiring physical access to the device.
- Management capability provides setup and configuration control
- Desktop placement facilitates easy access for adjustments
Deployment / Use Cases
The Adtran NetVanta 3200 is ideal for small businesses, retail locations, or remote offices that require a basic, reliable router for internet sharing and file transfers. Its desktop form factor makes it suitable for environments where rack space is limited or unnecessary, such as small server rooms or office desks.
Small Business Networking
Deploy this router to create a wired network connecting multiple PCs, enabling shared internet access and file sharing while supporting email and other standard business applications. Its compact size and T-carrier compatibility make it a cost-effective solution for entry-level networking needs.
- Connects PCs for shared internet and file access
- Supports T-carrier for service provider integration
Branch Office Connectivity
Use the NetVanta 3200 in branch offices to establish a secure, managed connection to corporate networks. The management port allows IT teams to configure settings remotely, ensuring consistent network policies across locations without on-site visits.
- Desktop installation simplifies setup in small spaces
- Management port enables remote configuration
Physical Profile
The router has a desktop form factor with dimensions of 1.62 inches in height, 9 inches in width, and 6.37 inches in depth, weighing approximately 2 pounds. This compact design allows for flexible placement on desks, shelves, or other flat surfaces, making it easy to integrate into existing office setups without requiring specialized mounting hardware.
The physical profile is practical for deployment planning because the dimensions and weight are clearly defined: 1.62" (41.15 mm), 9" (228.60 mm), 6.37" (161.80 mm), 2 lb (907.18 g). This helps confirm rack, shelf, desk, or cabinet fit before installation.
- Width
- 9" (228.60 mm)
- Depth
- 6.37" (161.80 mm)
- Height
- 1.62" (41.15 mm)
- Weight
- 2 lb (907.18 g)
Highlights
- 3 total ports including a dedicated management port for configuration control
- Supports T-carrier connections for integration with service provider links
- Fast Ethernet technology enables data transfer rates up to 100 Mb/sec
- Desktop form factor for easy placement on flat surfaces without rack mounting
- Includes one expansion slot for Network Interface Module (NIM) flexibility
- 16 MB standard memory for stable routing performance
- 5-year limited warranty for long-term reliability assurance
- Compact dimensions: 1.62" H x 9" W x 6.37" D, weighing approximately 2 lb
Specifications
| Specifications | |
|---|---|
| Manufacturer | Adtran |
| Manufacturer Part Number | 4200863L1 |
| Brand Name | Adtran |
| Product Line | NetVanta |
| Product Model | 3200 |
| Product Name | NetVanta 3200 Access Router |
| Product Type | Router |
| Interfaces/Ports | |
| Total Number of Ports | 3 |
| Management Port | Yes |
| Number of Network (RJ-45) Ports | 1 |
| Media & Performance | |
| Carrier Supported | T-carrier |
| I/O Expansions | |
| Total Number of Expansion Slots | 1 |
| Expansion Slot Type | Network Interface Module (NIM) |
| Network & Communication | |
| Ethernet Technology | Fast Ethernet |
| Network Technology | 10/100Base-TX,DSX-1,T1/FT1 |
| Memory | |
| Standard Memory | 16 MB |
| Physical Characteristics | |
| Form Factor | Desktop |
| Height | 1.62" (41.15 mm) |
| Width | 9" (228.60 mm) |
| Depth | 6.37" (161.80 mm) |
| Weight (Approximate) | 2 lb (907.18 g) |
| Warranty | |
| Limited Warranty | 5 Year |
User Manual
FAQ
What types of network connections does the Adtran NetVanta 3200 support?
The Adtran NetVanta 3200 supports Fast Ethernet connections with data transfer rates up to 100 Mb/sec over wired networks. It is compatible with 10/100Base-TX, DSX-1, and T1/FT1 network technologies, and includes T-carrier support for service provider links, enabling integration with various WAN environments for reliable edge connectivity.
How many ports are available on this router and what are their purposes?
This router has a total of three ports. It includes one network RJ-45 port for standard Ethernet connections and a dedicated management port for configuration and monitoring. The management port allows administrators to set up and control the router remotely, enhancing network management capabilities without needing direct physical access to the device.
Can the NetVanta 3200 be expanded with additional interfaces?
Yes, the NetVanta 3200 features one expansion slot that accepts a Network Interface Module (NIM). This slot provides flexibility for adding extra network interfaces or upgrading connectivity options in the future, allowing the router to adapt to changing network requirements without replacing the entire unit.
What is the form factor of this router and where can it be installed?
The Adtran NetVanta 3200 has a desktop form factor, designed for standalone installation on flat surfaces like desks, shelves, or small server racks. Its compact size and lightweight design make it suitable for environments where rack mounting is not necessary, such as small offices or retail locations with limited space.
What warranty coverage is provided with the NetVanta 3200 router?
The Adtran NetVanta 3200 comes with a 5-year limited warranty. This warranty covers defects in materials and workmanship under normal use, providing long-term reliability assurance for businesses that depend on consistent network performance. It reflects the manufacturer's confidence in the durability and quality of this networking device.
How does the T-carrier support benefit network deployment?
T-carrier support allows the NetVanta 3200 to connect with service provider links using technologies like DSX-1, enabling data transfer rates up to 1.544 Mbps. This is particularly useful for small businesses or branch offices that require reliable WAN access for internet connectivity or connecting to corporate networks, ensuring efficient data flow over dedicated lines.
