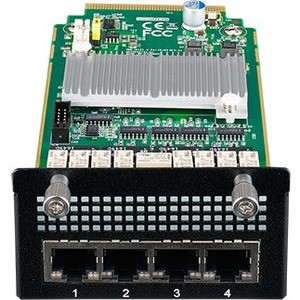

Advantech NMC-0121-000110E 4-Port Gigabit Ethernet RJ45 Module with Advanced LAN Bypass - 1000Base-T Twisted Pair
Business volume discounts
Technical guidance
Preparation & staging
QC · ON · AB · BC
Product Features
Technical Overview
This expansion module operates on Gigabit Ethernet technology, specifically 1000Base-T, which supports data transfer rates up to 1000 Mbps over twisted pair cables. The four RJ-45 ports are configured for 1000Base-T LAN connectivity, providing a straightforward plug-and-play interface for network expansion.
The module supports twisted pair media, enabling cost-effective deployment with existing cabling infrastructure while maintaining high-speed performance across distances up to 100 meters per port.
Key Product Advantages
This module offers several advantages for network deployments requiring additional Ethernet ports with high reliability and performance.
Advanced LAN Bypass
The integrated LAN bypass feature helps maintain network connectivity during module maintenance or power interruptions, reducing downtime and ensuring continuous operation.
- Enhances network reliability
- Supports maintenance without disruption
High-Speed Connectivity
With 1000Base-T technology, this module delivers Gigabit Ethernet speeds across all four ports, supporting bandwidth-intensive applications and efficient data transfer.
- Four independent Gigabit ports
- Consistent 1000 Mbps performance
Cost-Effective Media Support
By utilizing standard twisted pair cabling, this module leverages existing infrastructure investments while providing reliable high-speed connectivity up to 100 meters per connection.
- Uses common twisted pair cables
- Maximizes existing cabling investments
Deployment / Use Cases
The Advantech 4-port Gigabit Ethernet module is designed for data networking environments where additional Ethernet connectivity is needed without compromising performance or reliability.
Typical deployment scenarios include network expansion in industrial settings, additional port requirements for networking equipment, and environments where LAN bypass functionality is critical for maintaining continuous operation during maintenance windows.
Network Expansion
Add four Gigabit Ethernet ports to networking systems that require additional connectivity for devices, servers, or network segments.
- Industrial networking systems
- Server connectivity expansion
High-Reliability Environments
Deploy in settings where network continuity is essential, leveraging the advanced LAN bypass feature to maintain connectivity during maintenance or power events.
- Critical infrastructure networks
- Continuous operation requirements
Physical Profile
This compact expansion module measures 1.40" (35.50 mm) in height, 2.94" (74.60 mm) in width, and 6.44" (163.70 mm) in depth. Its streamlined dimensions facilitate integration into various networking equipment and enclosures while providing full four-port functionality.
- Width
- 2.94" (74.60 mm)
- Depth
- 6.44" (163.70 mm)
- Height
- 1.40" (35.50 mm)
Highlights
- Four Gigabit Ethernet RJ-45 ports for network expansion
- 1000Base-T technology supporting up to 1000 Mbps data transfer
- Advanced LAN bypass functionality for network continuity
- Supports twisted pair cabling up to 100 meters
- Compact expansion module form factor
- Gigabit Ethernet technology for high-speed connectivity
- RJ-45 connectors for standard Ethernet interfaces
- Designed for data networking applications
Specifications
| Specifications | |
|---|---|
| Manufacturer | Advantech Co., Ltd |
| Manufacturer Part Number | NMC-0121-000110E |
| Brand Name | Advantech |
| Product Name | 4 Ports 1GbE RJ45 Module (Advanced LAN Bypass Available) |
| Product Type | Expansion Module |
| Technical Information | |
| Application/Usage | Data Networking |
| Interfaces/Ports | |
| Total Number of Ports | 4 |
| Connector Type | RJ-45 |
| Interfaces/Ports Details | 4 x RJ-45 1000Base-T LAN |
| Media & Performance | |
| Media Type Supported | Twisted Pair |
| Ethernet Technology | Gigabit Ethernet |
| Network Technology | 1000Base-T |
| Physical Characteristics | |
| Height | 1.40" (35.50 mm) |
| Width | 2.94" (74.60 mm) |
| Depth | 6.44" (163.70 mm) |
| Miscellaneous | |
| Country of Origin | China |
FAQ
What type of module is the Advantech NMC-0121-000110E?
The Advantech NMC-0121-000110E is an expansion module that provides four additional Gigabit Ethernet ports with RJ-45 connectors. It's designed to integrate into networking systems requiring extra Ethernet connectivity while supporting 1000Base-T technology over twisted pair cabling.
What does the advanced LAN bypass feature provide?
The advanced LAN bypass feature helps maintain network connectivity when the module is undergoing maintenance or experiences power interruptions. This functionality ensures continuous network operation by bypassing the module when necessary, reducing potential downtime in critical networking environments.
What type of cabling does this module support?
This module supports twisted pair Ethernet cabling, specifically designed for 1000Base-T networks. It can utilize standard Category 5e or higher twisted pair cables to deliver Gigabit Ethernet speeds across distances up to 100 meters per port connection.
What are the physical dimensions of this expansion module?
The module measures 1.40 inches (35.50 mm) in height, 2.94 inches (74.60 mm) in width, and 6.44 inches (163.70 mm) in depth. These compact dimensions allow for flexible integration into various networking equipment and enclosures while providing full four-port functionality.
