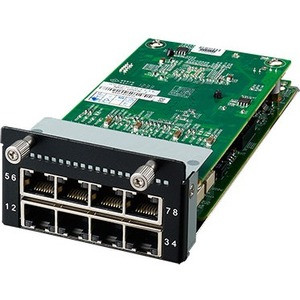

Advantech NMC-0806-000110E 8-Port 1GbE RJ45 Expansion Module with Advanced LAN Bypass - Gigabit Ethernet - 1000Base-T - Twisted Pair
Business volume discounts
Technical guidance
Preparation & staging
QC · ON · AB · BC
Product Features
Technical Overview
This expansion module implements 1000Base-T technology, delivering data transfer rates up to 1000Mbps over standard twisted pair cabling. Each of the eight RJ-45 ports supports Gigabit Ethernet connectivity, providing sufficient bandwidth for modern network applications.
The module's design ensures compatibility with existing network infrastructure while offering the flexibility to expand port capacity as needed. Advanced LAN bypass capability maintains network continuity by automatically rerouting traffic when the module is offline or undergoing maintenance.
Key Product Advantages
This expansion module combines high port density with reliable performance features that benefit network administrators and system integrators. The advanced LAN bypass functionality distinguishes this module from basic expansion options by providing enhanced network resilience.
High-Density Connectivity
Eight Gigabit Ethernet ports in a compact module maximize connection capacity without requiring additional rack space or chassis expansion.
- Eight RJ-45 ports
- Compact footprint
- Easy integration
Network Resilience
Advanced LAN bypass capability ensures network continuity during maintenance, upgrades, or power events, minimizing downtime in critical applications.
- Automatic traffic rerouting
- Maintenance-friendly design
- Continuous operation
Cost-Efficient Infrastructure
Utilizes standard twisted pair cabling, reducing deployment costs compared to fiber optic alternatives while maintaining Gigabit performance.
- Standard CAT5e/6 cables
- 100-meter reach
- Existing infrastructure compatibility
Deployment / Use Cases
The Advantech NMC-0806-000110E expansion module is designed for data networking applications requiring additional Ethernet ports in constrained spaces. Its compact dimensions and industrial construction make it suitable for integration into networking equipment, industrial control systems, and telecommunications infrastructure.
Typical deployment scenarios include expanding port capacity in network switches, adding connectivity to industrial PCs, and integrating into modular networking systems. The module's advanced LAN bypass feature makes it particularly valuable for applications where network availability is critical, such as surveillance systems, manufacturing automation, and telecommunications networks.
Network Infrastructure Expansion
Add eight Gigabit Ethernet ports to existing networking equipment without requiring complete system replacement or major infrastructure changes.
Industrial Networking
Deploy in manufacturing, automation, or control systems where reliable Ethernet connectivity and compact form factors are essential requirements.
Physical Profile
Measuring 1.40" (35.60 mm) in height, 2.94" (74.60 mm) in width, and 6.89" (175 mm) in depth, this expansion module features a compact design that maximizes port density while minimizing space requirements. The dimensions allow for flexible integration into various networking chassis and equipment enclosures.
- Width
- 2.94" (74.60 mm)
- Depth
- 6.89" (175 mm)
- Height
- 1.40" (35.60 mm)
Highlights
- Eight Gigabit Ethernet RJ-45 ports for high-density connectivity
- Advanced LAN bypass functionality for network resilience during maintenance
- 1000Base-T technology supporting data rates up to 1000Mbps
- Twisted pair media compatibility with standard CAT5e/6 cabling
- Compact dimensions: 1.40" H × 2.94" W × 6.89" D
- Industrial-grade construction for reliable performance
- Supports cable distances up to 100 meters
- Designed for data networking applications
Specifications
| Specifications | |
|---|---|
| Manufacturer | Advantech Co., Ltd |
| Manufacturer Part Number | NMC-0806-000110E |
| Brand Name | Advantech |
| Product Name | 8 Ports 1GbE RJ45 Module (Advanced LAN Bypass Available) |
| Product Type | Expansion Module |
| Technical Information | |
| Application/Usage | Data Networking |
| Interfaces/Ports | |
| Total Number of Ports | 8 |
| Connector Type | RJ-45 |
| Interfaces/Ports Details | 8 x RJ-45 1000Base-X LAN |
| Media & Performance | |
| Media Type Supported | Twisted Pair |
| Ethernet Technology | Gigabit Ethernet |
| Network Technology | 1000Base-T |
| Physical Characteristics | |
| Height | 1.40" (35.60 mm) |
| Width | 2.94" (74.60 mm) |
| Depth | 6.89" (175 mm) |
| Miscellaneous | |
| Country of Origin | China |
FAQ
What is the primary function of this Advantech expansion module?
This Advantech NMC-0806-000110E expansion module adds eight Gigabit Ethernet RJ-45 ports to networking equipment, providing additional connectivity for data networking applications. It supports 1000Base-T technology over twisted pair cabling and includes advanced LAN bypass functionality to maintain network continuity during maintenance or power events.
What type of cabling does this module support?
The module supports standard twisted pair Ethernet cabling, specifically CAT5e or CAT6 cables. It implements 1000Base-T technology, which allows data transfer rates up to 1000Mbps over distances up to 100 meters using this cost-effective cabling infrastructure.
How does the advanced LAN bypass feature work?
The advanced LAN bypass functionality automatically reroutes network traffic when the module is offline, undergoing maintenance, or experiencing power loss. This ensures continuous network operation by bypassing the module while maintaining connectivity between connected devices, minimizing downtime in critical networking applications.
What are the physical dimensions of this expansion module?
The module measures 1.40 inches (35.60 mm) in height, 2.94 inches (74.60 mm) in width, and 6.89 inches (175 mm) in depth. These compact dimensions allow for flexible integration into various networking chassis and equipment while providing eight Gigabit Ethernet ports in a space-efficient design.
