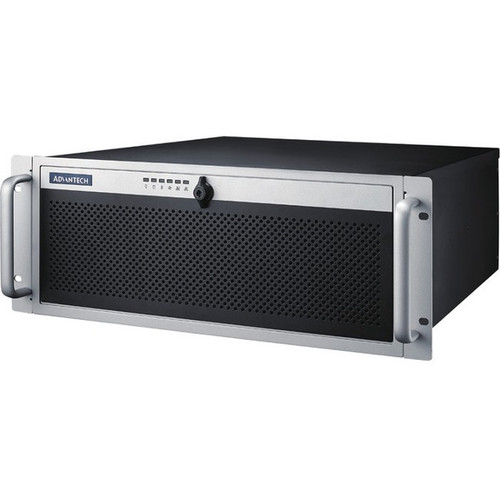

Advantech ACP-4340 Server Case - Rack-mountable - 4U - 6 x Bay - 1 x 700 W - Power Supply Installed - ATX, Micro ATX Motherboard - 2 x (ACP-4340BP-70ZE)
Business volume discounts
Technical guidance
Preparation & staging
QC · ON · AB · BC
Product Features
Motherboard Supported: ATX,Micro ATX
Number of Fans Supported: 2
Number of Fans Installed: 2
Installed Fan Size: 4.72" (120 mm),3.15" (80 mm)
Number of External 5.25" Bays: 1
Number of Internal 5.25" Bays: 0
Number of External 3.5" Bays: 0
Number of Internal 3.5" Bays: 0
Number of External 2.5" Bays: 0
Number of Internal 2.5" Bays: 1
Number of External 2.5"/3.5" Bays: 4
Number of Total Expansion Bays: 6
Total Number of Expansion Slots: 15
Total Number of USB Ports: 2
Power Supply Installed: Yes
Number of Power Supplies Supported: 1
Number of Power Supplies Installed: 1
Power Supply Wattage: 700 W
Compatible Rack Unit: 4U
Form Factor: Rack-mountable
Height: 6.97" (177 mm)
Width: 18.98" (482 mm)
Depth: 18.86" (479 mm)
Weight (Approximate): 27.56 lb (12500 g)
Country of Origin: China
- Supports a PICMG backplane with up to 14 slots or an ATX/Micro-ATX motherboard

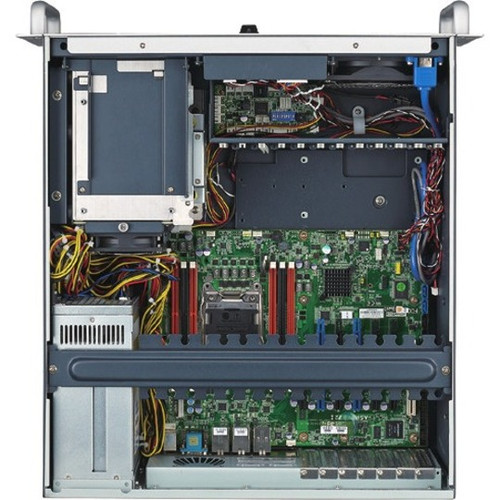

- Shock-resistant disk drive bay holds four hot-swap 3.5" and 2.5" SATA disktrays, one slim optical disk drive, and one 2.5" internal drive
- Dual front USB 3.0 ports
- Front-accessible system fan without opening top cover for easy maintenance
- LED indicators and alarm notification for system fault detection
- Smart fan speed control
- Built-in Intrusion switch function
- Built-in Intelligent System Module enabling whole system fan control and
- remote manageability
[custom-specifications]
| Specifications | |
| Manufacturer | Advantech Co., Ltd |
| Manufacturer Part Number | ACP-4340BP-70ZE |
| Manufacturer Website Address | http://www.advantech.com |
| Brand Name | Advantech |
| Product Model | ACP-4340 |
| Product Name | ACP-4340 Server Case |
| Product Type | Server Case |
| Technical Information | |
| Motherboard Supported | ATX,Micro ATX |
| Number of Fans Supported | 2 |
| Number of Fans Installed | 2 |
| Installed Fan Size | 4.72" (120 mm),3.15" (80 mm) |
| Bays | |
| Number of External 5.25" Bays | 1 |
| Number of Internal 5.25" Bays | 0 |
| Number of External 3.5" Bays | 0 |
| Number of Internal 3.5" Bays | 0 |
| Number of External 2.5" Bays | 0 |
| Number of Internal 2.5" Bays | 1 |
| Number of External 2.5"/3.5" Bays | 4 |
| Number of Total Expansion Bays | 6 |
| I/O Expansions | |
| Total Number of Expansion Slots | 15 |
| Interfaces/Ports | |
| Total Number of USB Ports | 2 |
| Power Description | |
| Power Supply Installed | Yes |
| Number of Power Supplies Supported | 1 |
| Number of Power Supplies Installed | 1 |
| Power Supply Wattage | 700 W |
| Physical Characteristics | |
| Compatible Rack Unit | 4U |
| Form Factor | Rack-mountable |
| Height | 6.97" (177 mm) |
| Width | 18.98" (482 mm) |
| Depth | 18.86" (479 mm) |
| Weight (Approximate) | 27.56 lb (12500 g) |
| Miscellaneous | |
| Country of Origin | China |
[/custom-specifications]
[custom-user-manual]
Available Documentation:
Manufacturer-Brochure
User-Manual
[/custom-user-manual]
