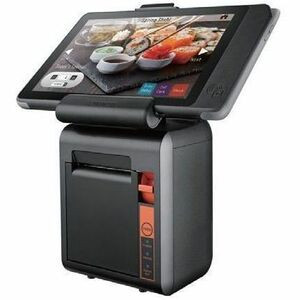

Advantech AIM-37AC-S0GR1110 10. 1" Industrial Tablet POS System - Intel Atom x5-Z8350 Quad-Core - 4GB DDR3L - 64GB e. MMC - Android 6. 0 - IP54 Rated
Business volume discounts
Technical guidance
Preparation & staging
QC · ON · AB · BC
Product Features
Technical Overview
At the core of the AIM-37 is the Intel Atom x5-Z8350 processor, a quad-core chip designed for low-power embedded applications with a maximum turbo frequency of 1.92 GHz. This energy-efficient platform delivers sufficient processing capability for typical POS operations including inventory management, payment processing, and customer relationship software.
The system's 10.1-inch display utilizes IPS panel technology with WXGA resolution, providing wide viewing angles and consistent color reproduction essential for customer-facing applications. The projected capacitive multi-touch screen supports intuitive gesture controls while the anti-glare, anti-fingerprint coating with Gorilla Glass 3 protection ensures clear visibility in various lighting conditions.
This section brings together practical product details such as Bluetooth, Bluetooth Standard, Features, Processor Manufacturer, so buyers can judge configuration, deployment fit, and day-to-day suitability with less guesswork.
A strong technical summary explains how the product's interfaces, hardware profile, and operating characteristics work together in real deployment. Buyers often need this context to confirm compatibility with existing devices, expected performance in daily use, and whether installation will be straightforward for IT staff or end users.
Key Product Advantages
The AIM-37 distinguishes itself through industrial-grade construction and specialized features optimized for commercial deployment. The IP54 ingress protection rating provides defense against dust particles and water splashes, making the system suitable for environments where cleaning fluids, food particles, or other contaminants are present.
Enhanced Durability
Gorilla Glass 3 protection combined with anti-fingerprint coating maintains screen clarity through extended use cycles, while the IP54 rating ensures operational reliability in challenging retail and hospitality settings.
- Gorilla Glass 3 protection
- Anti-fingerprint coating
- IP54 dust/liquid resistance
POS-Optimized Connectivity
Built-in Wi-Fi and Bluetooth 4.2 support wireless peripherals including barcode scanners, receipt printers, and payment terminals, while the powered USB port provides stable connectivity for essential POS accessories.
- Bluetooth 4.2 for peripherals
- Powered USB port
- Micro USB 2.0 connectivity
Deployment / Use Cases
The compact form factor and versatile mounting options make the AIM-37 suitable for both fixed countertop installations and mobile service applications. At approximately 1.98 pounds with dimensions of 11.42" wide × 6.93" deep × 0.69" high, the system integrates seamlessly into space-constrained retail environments without dominating the customer service area.
In hospitality settings, the dual-color black and cool gray finish presents a professional appearance that complements various interior designs. The integrated 2W speaker supports audio feedback for transaction confirmation or customer notifications, while the Android 6.0 Marshmallow operating system provides a familiar platform for POS application development and deployment.
Retail Checkout Stations
Ideal for main checkout counters, customer service desks, or specialty department stations where space efficiency and durability are paramount considerations.
Mobile Service Applications
Suitable for table-side ordering in restaurants, curbside checkout services, or inventory management tasks requiring portable computing capability with full POS functionality.
Localization and Operating System
The Advantech AIM-37 ships with Android 6.0 Marshmallow pre-installed, delivering a touch-optimized platform widely adopted for retail and hospitality POS applications. This operating system provides a stable foundation for transaction processing, inventory management, and customer service software, with security features appropriate for handling payment data in commercial environments.
Android 6.0 supports a broad ecosystem of POS-specific applications available through standard distribution channels, allowing businesses to deploy customized solutions without extensive platform modification. The system's interface remains consistent across deployments, reducing training requirements for staff transitioning between different POS stations or locations.
While the AIM-37 does not include region-specific keyboard layouts or language packs as standard, its Android base supports straightforward localization through application-level settings. This flexibility makes the terminal suitable for diverse retail environments where interface language or input methods may need adjustment based on operational requirements.
Physical Profile
The AIM-37 presents a slim industrial design with a height of just 0.69 inches (17.4 mm), allowing for discreet integration into various retail configurations. The dual-color black and cool gray finish provides visual contrast while maintaining professional aesthetics appropriate for customer-facing environments.
The physical profile is practical for deployment planning because the dimensions and weight are clearly defined: 0.69" (17.40 mm), 11.42" (290 mm), 6.93" (176 mm), 1.98 lb (900 g). This helps confirm rack, shelf, desk, or cabinet fit before installation.
- Width
- 11.42" (290 mm)
- Depth
- 6.93" (176 mm)
- Height
- 0.69" (17.40 mm)
- Weight
- 1.98 lb (900 g)
What's in the Box
The AIM-37 arrives ready for deployment with essential components for immediate POS integration.
Highlights
- 10.1" IPS multi-touch display with Gorilla Glass 3 protection
- Intel Atom x5-Z8350 quad-core processor (1.92 GHz turbo)
- 4 GB DDR3L SDRAM for smooth multi-application performance
- 64 GB e.MMC storage with microSD expansion up to 128 GB
- Android 6.0 Marshmallow operating system
- IP54 rated for dust and liquid resistance
- Bluetooth 4.2 and Wi-Fi connectivity
- Powered USB port for POS peripherals
- Compact design: 11.42" × 6.93" × 0.69"
- RoHS compliant for environmental responsibility
Specifications
| Specifications | |
|---|---|
| Manufacturer | Advantech Co., Ltd |
| Manufacturer Part Number | AIM-37AC-S0GR1110 |
| Brand Name | Advantech |
| Product Model | AIM-37 |
| Product Name | AIM-37 10.1" Industrial Tablet-Based Mini POS System |
| Product Type | POS Terminal |
| Technical Information | |
| Bluetooth | Yes |
| Bluetooth Standard | Bluetooth 4.2 |
| Features | Anti-glare,Anti-fingerprint Coating,Gorilla Glass 3,Anti-reflective |
| Processor & Chipset | |
| Processor Manufacturer | Intel |
| Processor Type | Atom |
| Processor Core | Quad-core (4 Core) |
| Processor Model | x5-Z8350 |
| Maximum Turbo Speed | 1.92 GHz |
| Memory | |
| Standard Memory | 4 GB |
| Memory Technology | DDR3L SDRAM |
| Memory Card Slot | Yes |
| Memory Card Supported | microSD |
| Maximum Memory Card Size Supported | 128 GB |
| Storage | |
| Flash Memory Capacity | 64 GB |
| Flash Memory Type | Embedded MultiMediaCard (e.MMC) |
| Display & Graphics | |
| Screen Size | 10.1" |
| Display Screen Type | LED |
| Screen Mode | WXGA |
| Panel Technology | In-plane Switching Technology (IPS) |
| Touchscreen | Yes |
| Touchscreen Technology | Projected Capacitive |
| Multi-touch Screen | Yes |
| Network & Communication | |
| Wireless LAN | Yes |
| Interfaces/Ports | |
| USB | Yes |
| Powered USB | Yes |
| Number of Micro USB 2.0 Ports | 1 |
| Built-in Devices | |
| Speaker Power | 2 W |
| Number of Speakers | 1 |
| Software | |
| Operating System | Android 6.0 Marshmallow |
| Physical Characteristics | |
| Color Family | Dual Color |
| Product Color | Black,Cool Gray |
| Height | 0.69" (17.40 mm) |
| Width | 11.42" (290 mm) |
| Depth | 6.93" (176 mm) |
| Weight (Approximate) | 1.98 lb (900 g) |
| Miscellaneous | |
| Package Contents | AIM-37 10.1" Industrial Tablet-Based Mini POS System Barcode Reader Adapter Plug |
| Durability | Dust Resistant,Liquid Resistant |
| Ingress Protection (IP) Rating | IP54 |
| Environmental Compliance | Restriction of Hazardous Substances (RoHS) |
User Manual
FAQ
What print, scan, copy, or multifunction capability is listed?
At the core of the AIM-37 is the Intel Atom x5-Z8350 processor, a quad-core chip designed for low-power embedded applications with a maximum turbo frequency of 1.92 GHz. This energy-efficient platform delivers sufficient processing capability for typical POS operations including inventory management, payment processing, and customer relationship software. The system's 10.1-inch display utilizes IPS panel technology with WXGA resolution, providing wide viewing angles and consistent color reproduction essential for customer-facing applications. The projected capacitive multi-touch screen supports intuitive gesture controls while the anti-glare, anti-fingerprint coating with Gorilla Glass 3 protection ensures clear visibility in various lighting conditions.
What duplex or duty-cycle detail is listed?
At the core of the AIM-37 is the Intel Atom x5-Z8350 processor, a quad-core chip designed for low-power embedded applications with a maximum turbo frequency of 1.92 GHz. This energy-efficient platform delivers sufficient processing capability for typical POS operations including inventory management, payment processing, and customer relationship software. The system's 10.1-inch display utilizes IPS panel technology with WXGA resolution, providing wide viewing angles and consistent color reproduction essential for customer-facing applications. The projected capacitive multi-touch screen supports intuitive gesture controls while the anti-glare, anti-fingerprint coating with Gorilla Glass 3 protection ensures clear visibility in various lighting conditions.
What connectivity options are listed?
Connectivity options include Bluetooth 4.2, helping the product integrate into common office or home setups.
What label, receipt, or business-print workflow detail is listed?
At the core of the AIM-37 is the Intel Atom x5-Z8350 processor, a quad-core chip designed for low-power embedded applications with a maximum turbo frequency of 1.92 GHz. This energy-efficient platform delivers sufficient processing capability for typical POS operations including inventory management, payment processing, and customer relationship software. The system's 10.1-inch display utilizes IPS panel technology with WXGA resolution, providing wide viewing angles and consistent color reproduction essential for customer-facing applications. The projected capacitive multi-touch screen supports intuitive gesture controls while the anti-glare, anti-fingerprint coating with Gorilla Glass 3 protection ensures clear visibility in various lighting conditions.
What deployment or installation detail is listed?
The compact form factor and versatile mounting options make the AIM-37 suitable for both fixed countertop installations and mobile service applications. At approximately 1.98 pounds with dimensions of 11.42" wide × 6.93" deep × 0.69" high, the system integrates seamlessly into space-constrained retail environments without dominating the customer service area. In hospitality settings, the dual-color black and cool gray finish presents a professional appearance that complements various interior designs. The integrated 2W speaker supports audio feedback for transaction confirmation or customer notifications, while the Android 6.0 Marshmallow operating system provides a familiar platform for POS application development and deployment.
What performance, throughput, or capacity detail stands out?
The listed power specification is 4 GB, which helps position the unit for the right load level and installation role.
