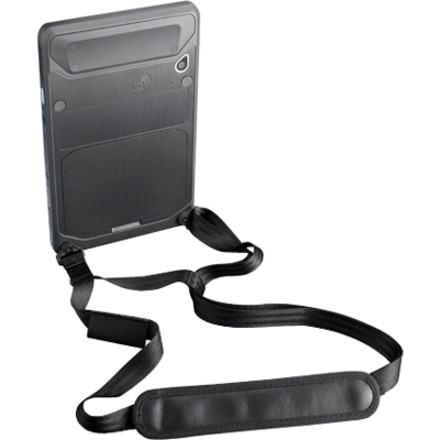

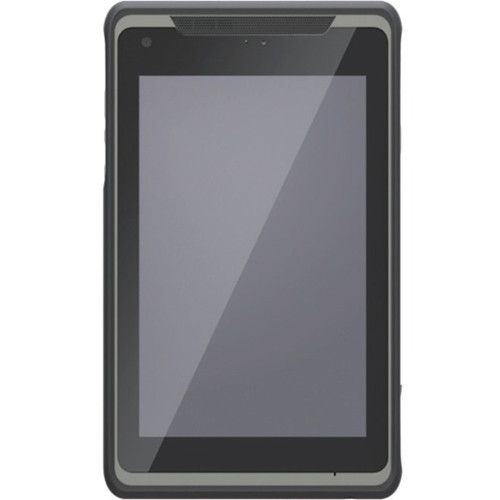

Advantech AIM-65AT-22307000 AIMx5 AIM-65 8" Industrial Tablet - Windows 10 IoT Enterprise - Atom x5-Z8350 Quad-core 1. 44 GHz - 4 GB RAM - 64 GB
Business volume discounts
Technical guidance
Preparation & staging
QC · ON · AB · BC
Product Features
Technical Overview
At the core of the AIM-65 is the Intel Atom x5-Z8350 processor, a quad-core 1.44 GHz SoC that balances performance with power efficiency for extended battery life in mobile use. The platform is configured with 4 GB of RAM to support smooth multitasking within the Windows 10 IoT Enterprise environment, while 64 GB of onboard flash storage provides ample space for the OS, applications, and local data, with further expansion possible via the microSD card slot.
The 8" IPS touchscreen delivers 1920 x 1200 resolution at a 16:10 aspect ratio, offering sharp visuals and wide viewing angles suitable for both indoor and bright-light conditions. Wireless connectivity is handled by dual-band Wi-Fi 802.11ac and Bluetooth, ensuring reliable local network and peripheral connections. A single USB 3.0 port supports fast data transfer and peripheral attachment.
Key Product Advantages
This industrial tablet stands out through its combination of a managed Windows IoT platform, rugged construction, and a high-resolution compact display—making it a versatile tool for controlled deployment environments.
Enterprise-Grade OS Management
Windows 10 IoT Enterprise provides advanced security features, device lockdown capabilities, and long-term servicing options ideal for kiosks, digital signage, and dedicated field applications where standard consumer OS flexibility is not required.
- Device lockdown for single-purpose use
- Enhanced security policies
- Long-term support channel
Rugged & Compact Design
With Gorilla Glass 3 protection, water resistance, and a lightweight 1.32 lb form factor, the AIM-65 withstands typical environmental challenges while remaining highly portable for mobile workers or space-constrained installations.
- Scratch-resistant display
- Water-resistant construction
- Lightweight slate profile
High-Definition Visuals
The 8" IPS panel delivers Full HD+ resolution (1920x1200) with accurate color reproduction and wide viewing angles, ensuring content remains clear and legible from various positions in retail, hospitality, or industrial settings.
- 1920x1200 resolution
- IPS technology for consistent colors
- 16:10 aspect ratio for extra vertical space
Deployment / Use Cases
The Advantech AIM-65 is engineered for scenarios where a compact, managed Windows device is needed outside the traditional office desk. Its blend of touch interface, wireless connectivity, and rugged traits makes it suitable for both mobile and fixed-point applications.
In retail and hospitality, the tablet can serve as a portable point-of-sale terminal, inventory checker, or customer service device. For field service and logistics, its sensors (gyro, accelerometer, compass, ambient light) and cameras support asset tracking, inspection documentation, and navigation aids. In industrial environments, the device can be mounted as an HMI panel or monitoring station, leveraging its water resistance and Gorilla Glass protection.
Mobile Point-of-Service
Use as a handheld POS, menu browser, or queue management tool in restaurants, stores, or events, with Wi-Fi keeping transactions synchronized and Bluetooth enabling receipt printing or card reading.
Field Data Collection
Deploy for inventory audits, equipment inspections, or delivery verification, utilizing the rear 5 MP camera with auto-focus for document and barcode capture, and sensors for environmental context.
Localization and Operating System
The Advantech AIM-65AT-22307000 ships with Windows 10 IoT Enterprise pre-installed, providing a specialized operating system environment for industrial and fixed-purpose deployments. This edition is designed for managed devices where security, stability, and long-term serviceability are critical, offering features like device lockdown, enhanced policy controls, and dedicated servicing channels that standard consumer Windows versions lack.
Windows 10 IoT Enterprise supports the tablet’s role in kiosk, digital signage, field service, and interactive panel applications by allowing administrators to restrict user access to authorized applications only. This ensures the device operates reliably in single-function or controlled multi-tasking scenarios without unnecessary OS overhead or update interruptions. The platform’s compatibility with industrial software and peripheral drivers makes it a practical choice for integrating into existing Windows-based workflows.
While the tablet does not include region-specific keyboard layouts or language packs as standard, its touch interface and on-screen keyboard adapt to various input needs. The operating system’s localization settings can be configured during deployment to match language, regional formats, and accessibility requirements, supporting use in diverse geographic and operational environments where clear, consistent user interaction is essential.
Physical Profile
The AIM-65 adopts a slate form factor measuring 5.59" wide by 9.45" deep by 0.57" high (142 x 240 x 14.5 mm), making it easy to hold in one hand or mount in tight spaces. At 1.32 lb (600 g), it is lightweight enough for extended handheld use yet solidly built for durability. The front is dominated by the 8" touchscreen protected by Gorilla Glass 3, with front and rear cameras positioned for video calls and documentation. The water-resistant design helps protect against spills and moisture in demanding environments.
- Width
- 5.59" (142 mm)
- Depth
- 9.45" (240 mm)
- Height
- 0.57" (14.50 mm)
- Weight
- 1.32 lb (600 g)
Highlights
- 8" IPS touchscreen with 1920 x 1200 resolution for sharp, wide-angle viewing
- Windows 10 IoT Enterprise OS for enterprise security, device lockdown, and managed deployments
- Intel Atom x5-Z8350 quad-core 1.44 GHz processor balances performance and power efficiency
- 4 GB RAM and 64 GB flash storage support smooth multitasking and application storage
- Wi-Fi 802.11ac and Bluetooth provide reliable wireless connectivity for networks and peripherals
- Gorilla Glass 3 and water-resistant construction enhance durability in industrial and mobile use
- Front 2 MP and rear 5 MP cameras with auto-focus support video calls and documentation tasks
- Integrated sensors (gyro, accelerometer, compass, ambient light) enable context-aware applications
- Compact and lightweight slate design (1.32 lb) for easy portability and handheld operation
- Energy Star certified for energy efficiency in always-on or frequently used scenarios
Specifications
| Specifications | |
|---|---|
| Manufacturer | Advantech Co., Ltd |
| Manufacturer Part Number | AIM-65AT-22307000 |
| Brand Name | Advantech |
| Product Series | AIMx5 |
| Product Model | AIM-65 |
| Product Name | 8" Industrial-Grade Tablet with Intel Atom Processor |
| Product Type | Tablet |
| Processor | |
| Processor Type | Atom x5 |
| Processor Model | x5-Z8350 |
| Processor Speed | 1.44 GHz |
| Processor Core | Quad-core (4 Core) |
| Memory | |
| Standard Memory | 4 GB |
| Memory Card Supported | microSD |
| Storage | |
| Flash Memory Capacity | 64 GB |
| Display & Graphics | |
| Screen Size | 8" |
| Display Screen Technology | In-plane Switching (IPS) Technology |
| Aspect Ratio | 16:10 |
| Screen Resolution | 1920 x 1200 |
| Network & Communication | |
| WWAN Supported | No |
| Wireless Connectivity Technology | Wi-Fi |
| Cellular Phone Capability | No |
| GPS | No |
| Wireless LAN | Yes |
| Wireless LAN Standard | IEEE 802.11ac |
| Bluetooth | Yes |
| Interfaces/Ports | |
| Number of USB 3.0 Ports | 1 |
| Built-in Devices | |
| Sensor Type | Gyro Sensor,Accelerometer,Digital Compass,Ambient Light Sensor |
| Front Camera | Yes |
| Front Camera Resolution | 2 Megapixel |
| Rear Camera | Yes |
| Rear Camera Resolution | 5 Megapixel |
| Focus Modes | Fixed Focus,Auto-focus |
| Operating System | |
| Operating System Platform | Windows |
| Operating System | Windows 10 IoT Enterprise |
| Physical Characteristics | |
| Form Factor | Slate |
| Height | 0.57" (14.50 mm) |
| Width | 5.59" (142 mm) |
| Depth | 9.45" (240 mm) |
| Weight (Approximate) | 1.32 lb (600 g) |
| Miscellaneous | |
| Features | Gorilla Glass 3,Water Resistant |
| Energy Star | Yes |
| Country of Origin | Taiwan |
FAQ
What processor does this product use?
This product uses the x5-Z8350 processor for everyday performance and multitasking.
How much memory is installed?
It includes 4 GB of memory to support responsive multitasking and daily workloads.
What storage is included?
Storage details for Advantech AIMx5 AIM-65 Tablet - 8" - 4 GB - 64 GB Storage - Windows 10 IoT Enterprise - Atom x5 Quad-core (4 Core) x5-Z8350 1.44 GHz - (AIM-65AT-22307000) are intended to support operating system files, applications, and day-to-day business data while keeping the platform aligned with practical deployment expectations.
What display size or resolution is listed?
It features a display specification of 8", giving you clear visuals for work and media use.
What connectivity options are available?
Connectivity options include Wi-Fi, helping the product integrate into common office or home setups.
What operating system or platform is included?
The included operating environment is Windows, which helps position the product for software compatibility, deployment planning, and day-to-day business use.
