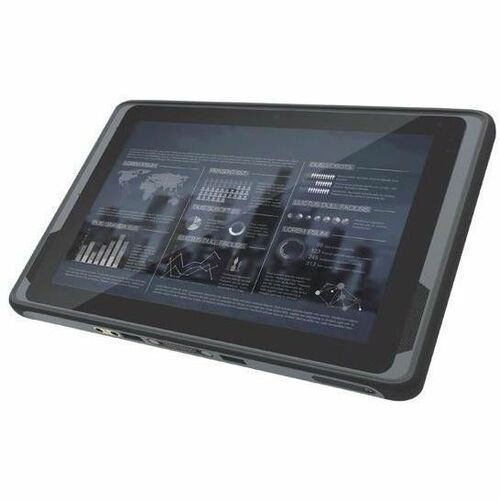

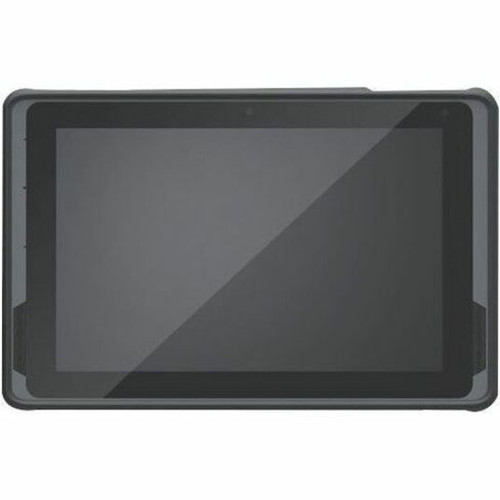

Advantech AIM-78S Rugged Tablet - 10.1" WUXGA - Qualcomm SDA660 Octa-core - 4 GB - 64 GB Storage - Android 13 - Dark Gray - 1 - Kryo + (AIM-78S-230B00)
Business volume discounts
Technical guidance
Preparation & staging
QC · ON · AB · BC
Product Features
- AIM-78S Tablet
- 1 x AC/DC Adaptor
- 1 x 2-pin Power Cord (TW)
Processor Manufacturer: Qualcomm
Processor Type: Kryo 260 Gold
Processor Speed: 2.20 GHz
Processor Core: Quad-core (4 Core)
2nd Processor Manufacturer: Qualcomm
2nd Processor Type: Kryo 260 Silver
2nd Processor Speed: 1.80 GHz
2nd Processor Core: Quad-core (4 Core)
Chipset Manufacturer: Qualcomm
Chipset Model: SDA660
Standard Memory: 4 GB
Memory Technology: LPDDR4X
Memory Card Supported: microSD
Memory Card Supported Capacity: 2 TB
Flash Memory Capacity: 64 GB
Screen Size: 10.1"
Display Screen Type: LCD
Screen Mode: WUXGA
Screen Resolution: 1920 x 1200
Brightness: 380 cd/m²
Graphics Controller Manufacturer: Qualcomm
Graphics Memory Technology: LPDDR4X
Graphics Memory Accessibility: Shared
WWAN Supported: No
Cellular Phone Capability: No
GPS: No
Wireless LAN: Yes
Wireless LAN Standard: IEEE 802.11a/b/g/n/ac/r/k/v
Bluetooth: Yes
Near Field Communication: Yes
USB Type-C: Yes
USB Type-C Detail: 1 x USB3.1 Type C supporting data transmission and USB tethering,
Sensor Type: Ambient Light Sensor,eCompass,G-sensor,Gyroscope
Front Camera: Yes
Front Camera Resolution: 8 Megapixel
Rear Camera: Yes
Rear Camera Resolution: 13 Megapixel
Focus Modes: Fixed Focus,Auto-focus
Operating System Platform: Android
Operating System: Android 13
Battery Capacity: 2400 mAh
Maximum Battery Run Time: 6 Hours
Rugged: Yes
Color Family: Gray
Product Color: Dark Gray
Form Factor: Slate
Height: 7.09" (180.10 mm)
Width: 11.02" (280 mm)
Depth: 0.72" (18.30 mm)
Weight (Approximate): 2.16 lb (980 g)
Package Contents:
Features: Barcode Scanner,Corning Gorilla Glass,Drop Resistant,Glove Touch,Gorilla Glass 3,Pogo Pin,Removable Battery,Shock Resistant,Vibration Resistant,Volume Control Button
Ingress Protection (IP) Rating: IP65
Environmental Compliance: Taiwan Restriction of Hazardous Substances (Taiwan RoHS),Waste Electrical and Electronic Equipment Directive (WEEE),China Restriction of Hazardous Substances (China RoHS)
Country of Origin: Taiwan
- Equipped with DeviceOn/iService software for remote device management
- Qualcomm SDA660/SDM660 with Android 10
- 10" WUXGA full HD display with scratch-resistant Corning® Gorilla® Glass and multi-touch PCAP control supports glove mode
- Integrated barcode scanner supports data collection
- Fast roaming and dual band WLAN , BT 5.0, NFC, 4G LTE connectivity for seamless communications
- Optional extension include 1D/2D barcode scanner, LAN+COM module, UHF RFID module
[custom-specifications]
| Specifications | |
| Manufacturer | Advantech Co., Ltd |
| Manufacturer Part Number | AIM-78S-230B00 |
| Manufacturer Website Address | http://www.advantech.com |
| Brand Name | Advantech |
| Product Model | AIM-78S |
| Product Name | AIM-78S Tablet |
| Product Type | Tablet |
| Processor | |
| Processor Manufacturer | Qualcomm |
| Processor Type | Kryo 260 Gold |
| Processor Speed | 2.20 GHz |
| Processor Core | Quad-core (4 Core) |
| 2nd Processor Manufacturer | Qualcomm |
| 2nd Processor Type | Kryo 260 Silver |
| 2nd Processor Speed | 1.80 GHz |
| 2nd Processor Core | Quad-core (4 Core) |
| Chipset | |
| Chipset Manufacturer | Qualcomm |
| Chipset Model | SDA660 |
| Memory | |
| Standard Memory | 4 GB |
| Memory Technology | LPDDR4X |
| Memory Card Supported | microSD |
| Memory Card Supported Capacity | 2 TB |
| Storage | |
| Flash Memory Capacity | 64 GB |
| Display & Graphics | |
| Screen Size | 10.1" |
| Display Screen Type | LCD |
| Screen Mode | WUXGA |
| Screen Resolution | 1920 x 1200 |
| Brightness | 380 cd/m² |
| Graphics Controller Manufacturer | Qualcomm |
| Graphics Memory Technology | LPDDR4X |
| Graphics Memory Accessibility | Shared |
| Network & Communication | |
| WWAN Supported | No |
| Cellular Phone Capability | No |
| GPS | No |
| Wireless LAN | Yes |
| Wireless LAN Standard | IEEE 802.11a/b/g/n/ac/r/k/v |
| Bluetooth | Yes |
| Near Field Communication | Yes |
| Interfaces/Ports | |
| USB Type-C | Yes |
| USB Type-C Detail | 1 x USB3.1 Type C supporting data transmission and USB tethering, |
| Built-in Devices | |
| Sensor Type | Ambient Light Sensor,eCompass,G-sensor,Gyroscope |
| Front Camera | Yes |
| Front Camera Resolution | 8 Megapixel |
| Rear Camera | Yes |
| Rear Camera Resolution | 13 Megapixel |
| Focus Modes | Fixed Focus,Auto-focus |
| Operating System | |
| Operating System Platform | Android |
| Operating System | Android 13 |
| Battery Information | |
| Battery Capacity | 2400 mAh |
| Maximum Battery Run Time | 6 Hours |
| Physical Characteristics | |
| Rugged | Yes |
| Color Family | Gray |
| Product Color | Dark Gray |
| Form Factor | Slate |
| Height | 7.09" (180.10 mm) |
| Width | 11.02" (280 mm) |
| Depth | 0.72" (18.30 mm) |
| Weight (Approximate) | 2.16 lb (980 g) |
| Miscellaneous | |
| Package Contents |
|
| Features | Barcode Scanner,Corning Gorilla Glass,Drop Resistant,Glove Touch,Gorilla Glass 3,Pogo Pin,Removable Battery,Shock Resistant,Vibration Resistant,Volume Control Button |
| Ingress Protection (IP) Rating | IP65 |
| Environmental Compliance | Taiwan Restriction of Hazardous Substances (Taiwan RoHS),Waste Electrical and Electronic Equipment Directive (WEEE),China Restriction of Hazardous Substances (China RoHS) |
| Country of Origin | Taiwan |
