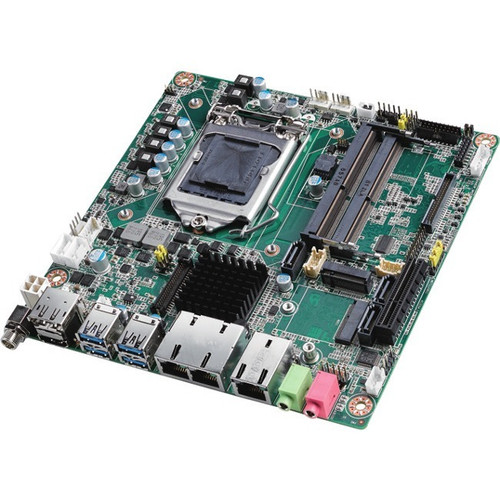

Advantech AIMB-286 Desktop Motherboard - Intel H310 Chipset - Socket H4 LGA-1151 - Mini ITX - 64 GB DDR4 SDRAM Maximum RAM - SODIMM - (AIMB-286L-00A1E)
Business volume discounts
Technical guidance
Preparation & staging
QC · ON · AB · BC
Product Features
- AIMB-286 Desktop Motherboard
- 1 x SATA HDD Cable
- 1 x SATA Power Cable (1 port, 25cm)
- 1 x 1-to-2 Serial Port Cable, 22cm
- 1 x I/O Port Bracket
- 1 x 1-to-4 Serial Port Cable, 35cm
- 1 x Startup Manual
- 1 x ATX 2x10P to 1x3P-2.0 25cm Cable
Chipset Manufacturer: Intel
Chipset Model: H310
Total Processor Supported: 1
Processor Socket: Socket H4 LGA-1151
Processor Supported: Core i3,Core i5,Core i7,Celeron,Pentium Gold
Number of Memory Slots: 2
Memory Form Factor: SODIMM
Maximum Memory Supported: 64 GB
Memory Speed Supported: 2666 MHz
Memory Technology: DDR4 SDRAM
Controller Type: Serial ATA/600
Onboard Video: CPU Dependent Video
Gigabit Ethernet: Yes
Total Number of USB Ports: 4
Number of USB 3.0 Ports: 4
HDMI: Yes
DisplayPort: Yes
Number of Network (RJ-45) Ports: 1
Number of SATA Interfaces: 2
Number of M.2 Interfaces: 2
Form Factor: Mini ITX
Width: 6.69" (169.93 mm)
Depth: 6.69" (169.93 mm)
Package Contents:
Environmentally Friendly: Yes
Environmental Compliance: Restriction of Hazardous Substances (RoHS),Waste Electrical and Electronic Equipment Directive (WEEE)
Country of Origin: China
- Supports Intel® 9th/8th Gen Core™ i processor (LGA1151) with Intel H310 chipset
- Two 260-pin SO-DIMM up to 64GB DDR4 2666 MHz SDRAM
- Supports dual display of DP++/HDMI/LVDs (or eDP)
- Supports PCIe x4 (Gen 3), 1 M.2 B key & 1 M.2 E key, 4 USB 3.0 & 4 USB 2.0 and 3 SATA III
- Supports 12V DC Input and low profile height
- Supports TPM 1.2 / 2.0
- Supports WISE-PaaS/DeviceOn and Embedded Software APIs
[custom-specifications]
| Specifications | |
| Manufacturer | Advantech Co., Ltd |
| Manufacturer Part Number | AIMB-286L-00A1E |
| Manufacturer Website Address | http://www.advantech.com |
| Brand Name | Advantech |
| Product Model | AIMB-286 |
| Product Name | AIMB-286 Desktop Motherboard |
| Product Type | Desktop Motherboard |
| Processor & Chipset | |
| Chipset Manufacturer | Intel |
| Chipset Model | H310 |
| Total Processor Supported | 1 |
| Processor Socket | Socket H4 LGA-1151 |
| Processor Supported | Core i3,Core i5,Core i7,Celeron,Pentium Gold |
| Memory | |
| Number of Memory Slots | 2 |
| Memory Form Factor | SODIMM |
| Maximum Memory Supported | 64 GB |
| Memory Speed Supported | 2666 MHz |
| Memory Technology | DDR4 SDRAM |
| I/O Controller | |
| Controller Type | Serial ATA/600 |
| Video | |
| Onboard Video | CPU Dependent Video |
| Network & Communication | |
| Gigabit Ethernet | Yes |
| Interfaces/Ports | |
| Total Number of USB Ports | 4 |
| Number of USB 3.0 Ports | 4 |
| HDMI | Yes |
| DisplayPort | Yes |
| Number of Network (RJ-45) Ports | 1 |
| Onboard Interfaces | |
| Number of SATA Interfaces | 2 |
| Number of M.2 Interfaces | 2 |
| Physical Characteristics | |
| Form Factor | Mini ITX |
| Width | 6.69" (169.93 mm) |
| Depth | 6.69" (169.93 mm) |
| Miscellaneous | |
| Package Contents |
|
| Environmentally Friendly | Yes |
| Environmental Compliance | Restriction of Hazardous Substances (RoHS),Waste Electrical and Electronic Equipment Directive (WEEE) |
| Country of Origin | China |
[/custom-specifications]
