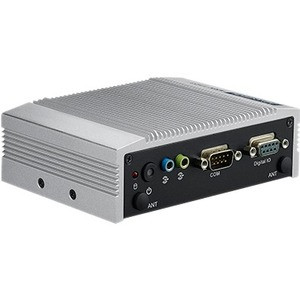

Advantech ARK-1123L-S3A2E ARK-1123C Box PC - Intel Atom E3825 Dual-Core 1. 33 GHz - DDR3L SDRAM - 36W Fanless
Business volume discounts
Technical guidance
Preparation & staging
QC · ON · AB · BC
Product Features
Technical Overview
At the core of the ARK-1123C is the Intel Atom E3825 processor, a dual-core 1.33 GHz SoC that balances performance with thermal efficiency. The system utilizes DDR3L SDRAM technology for memory operations, with integrated Intel graphics sharing the same memory pool. This configuration provides sufficient graphical capability for basic display output while maintaining the low-power characteristics essential for embedded applications.

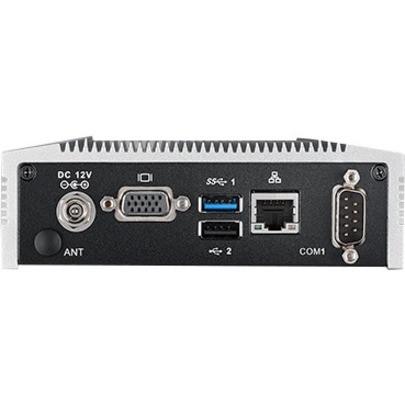

Connectivity is comprehensive with one Gigabit Ethernet port powered by an Intel I210 controller for reliable network communication. The unit includes two USB ports (one USB 2.0 and one USB 3.0) for peripheral attachment, plus dedicated serial communication interfaces: one standard RS-232 port and one configurable RS-232/422/485 port. A GPIO header enables custom input/output integration for sensor networks or control systems. Expansion is facilitated through both full-size and half-size MiniPCIe slots, supporting wireless modules or additional storage via mSATA.
Key Product Advantages
The ARK-1123C distinguishes itself through its combination of industrial-grade construction, comprehensive connectivity, and expansion flexibility in an exceptionally compact form factor. The fanless thermal design ensures silent operation and eliminates fan failure points, making it ideal for 24/7 operation in environments where maintenance access is limited.
Industrial Connectivity
Dual serial ports (RS-232 and RS-232/422/485) plus GPIO support legacy industrial equipment and custom I/O requirements that standard consumer PCs cannot address.
- Legacy serial device support
- Configurable RS-232/422/485 port
- GPIO for sensor/actuator integration
Expansion Flexibility
Two MiniPCIe slots (one full-size, one half-size) enable wireless connectivity, cellular modems, or additional storage via mSATA, while the internal 2.5" SATA bay accommodates HDD or SSD storage.
- Full-size MiniPCIe for WLAN/WWAN
- Half-size MiniPCIe for mSATA
- 2.5" SATA bay for storage
Deployment Versatility
Optional VESA, DIN rail, and wall mounting kits provide multiple installation options, while the threaded DC jack design ensures secure power connection in vibration-prone environments.
- VESA mount compatible
- DIN rail mounting option
- Threaded DC power connector
Deployment / Use Cases
The Advantech ARK-1123C is purpose-built for embedded computing applications where reliability, compact size, and industrial connectivity are paramount. Its fanless design and wide operating temperature range make it suitable for environments where dust, debris, or temperature extremes would compromise conventional computers with active cooling.
In industrial automation settings, the dual serial ports and GPIO interface enable direct communication with PLCs, sensors, and legacy equipment. The unit can serve as a gateway device, data logger, or control system interface on factory floors. For digital signage and kiosk applications, the compact form factor allows discreet mounting behind displays, while the low power consumption reduces operational costs for multi-unit deployments. In transportation and infrastructure monitoring, the rugged construction and expansion capabilities support edge computing tasks where reliability is non-negotiable.
Physical Profile
Measuring just 5.27" wide × 3.71" deep × 1.70" high (133.80 × 94.20 × 43.10 mm) and weighing approximately 1.76 lb (800 g), the ARK-1123C achieves remarkable density for its capabilities. The all-metal enclosure provides EMI shielding and structural rigidity while facilitating passive heat dissipation through conduction. The compact footprint enables installation in space-constrained locations where traditional PCs would not fit, while multiple mounting options (VESA, DIN rail, wall) provide deployment flexibility across different environments.
- Width
- 5.27" (133.80 mm)
- Depth
- 3.71" (94.20 mm)
- Height
- 1.70" (43.10 mm)
- Weight
- 1.76 lb (800 g)
What's in the Box
The ARK-1123C ships as a complete system ready for integration into your embedded application.
Highlights
- Intel Atom E3825 dual-core 1.33 GHz processor for efficient embedded computing
- Fanless thermal design eliminates moving parts for enhanced reliability
- DDR3L SDRAM memory technology with shared graphics memory
- Gigabit Ethernet (Intel I210) for reliable network connectivity
- Dual serial ports: 1 x RS-232 and 1 x RS-232/422/485
- GPIO interface for custom I/O and sensor integration
- 2.5" SATA bay for HDD or SSD storage expansion
- MiniPCIe expansion slots (full-size and half-size) for wireless or mSATA
- Optional VESA, DIN rail, and wall mounting kits
- RoHS compliant construction with threaded DC power jack
Specifications
| Specifications | |
|---|---|
| Manufacturer | Advantech Co., Ltd |
| Manufacturer Part Number | ARK-1123L-S3A2E |
| Brand Name | Advantech |
| Product Series | ARK-1000 |
| Product Model | ARK-1123C |
| Product Name | Intel Atom E3825 SoC with Dual COM and GPIO Palm-Size Fanless Box PC |
| Packaged Quantity | 1 |
| Product Type | Desktop Computer |
| Processor | |
| Processor Manufacturer | Intel |
| Processor Type | Atom |
| Processor Model | E3825 |
| Processor Core | Dual-core (2 Core) |
| Processor Speed | 1.33 GHz |
| Memory | |
| Memory Technology | DDR3L SDRAM |
| Display & Graphics | |
| Graphics Controller Manufacturer | Intel |
| Graphics Memory Technology | DDR3L SDRAM |
| Graphics Memory Accessibility | Shared |
| Network & Communication | |
| LAN Model | I210 |
| Ethernet Technology | Gigabit Ethernet |
| Interfaces/Ports | |
| Total Number of USB Ports | 2 |
| Number of USB 2.0 Ports (Rear) | 1 |
| Number of USB 3.0 Ports (Rear) | 1 |
| Power Description | |
| Maximum Power Supply Wattage | 36 W |
| Physical Characteristics | |
| Form Factor | Box PC |
| Height | 1.70" (43.10 mm) |
| Width | 5.27" (133.80 mm) |
| Depth | 3.71" (94.20 mm) |
| Weight (Approximate) | 1.76 lb (800 g) |
| Miscellaneous | |
| Package Contents | Intel Atom E3825 SoC with Dual COM and GPIO Palm-Size Fanless Box PC 1 x User Manual (Simplified Chinese) 1 x AC to DC Adapter |
| Environmentally Friendly | Yes |
| Environmental Compliance | Restriction of Hazardous Substances (RoHS) |
User Manual
FAQ
What processor does the Advantech ARK-1123C use?
The ARK-1123C is powered by an Intel Atom E3825 system-on-chip, featuring two processing cores running at 1.33 GHz. This processor delivers sufficient performance for embedded computing tasks while maintaining the low power consumption and thermal efficiency required for fanless operation in industrial environments.
Does this box PC include any storage?
The unit includes one internal 2.5" SATA bay that accommodates either a hard disk drive (HDD) or solid-state drive (SSD) for primary storage. Additionally, a half-size MiniPCIe slot supports mSATA storage modules, providing flexibility for different storage configurations based on your application requirements.
What connectivity options are available on the ARK-1123C?
Connectivity includes one Gigabit Ethernet port (Intel I210 controller), two USB ports (one USB 2.0 and one USB 3.0), two serial ports (one RS-232 and one configurable RS-232/422/485), and a GPIO interface. The unit also features VGA display output and expansion via both full-size and half-size MiniPCIe slots.
Is the ARK-1123C suitable for industrial environments?
Yes, the fanless design eliminates moving parts that could fail in dusty or vibration-prone settings. The dual serial ports and GPIO interface support industrial equipment communication, while the rugged metal enclosure provides EMI protection. Optional DIN rail and wall mounting kits further enhance industrial deployment flexibility.
What power supply does this box PC require?
The ARK-1123C operates on a maximum of 36 watts and includes an AC to DC adapter in the package. The unit features a threaded DC power jack design that ensures secure connection in environments with vibration, preventing accidental disconnection that could disrupt operation.
Can I expand the functionality of this box PC?
Expansion is supported through two MiniPCIe slots: a full-size slot for wireless modules (WLAN or WWAN) and a half-size slot for mSATA storage. The internal 2.5" SATA bay accommodates additional storage, while the GPIO interface enables custom input/output integration for specialized applications.
What processor is listed for this desktop or workstation?
This product uses the Atom processor for everyday performance and multitasking.
What processor speed is listed?
This product uses the 1.33 GHz processor for everyday performance and multitasking.
