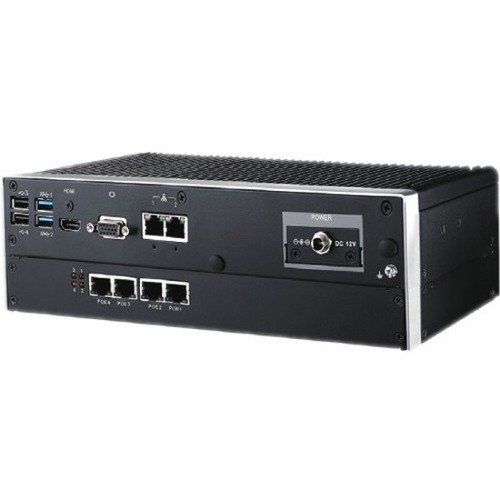

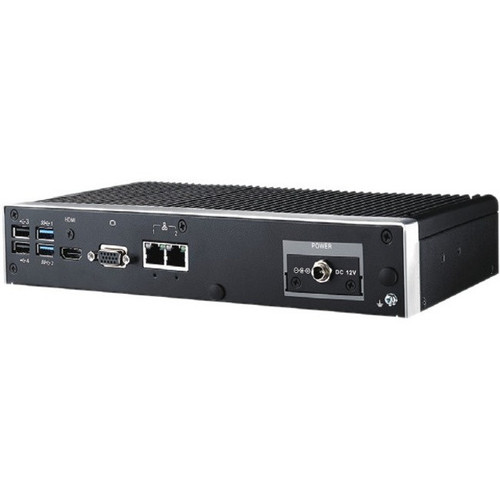

Advantech ARK-2232L-S6A1 Box PC Desktop Computer - Intel Atom x5-E3940 Quad-Core 1. 6GHz - DDR3L SDRAM - Intel HD Graphics 500 - Gigabit Ethernet - 6x
Business volume discounts
Technical guidance
Preparation & staging
QC · ON · AB · BC
Product Features
Technical Overview
At the heart of the ARK-2232L is the Intel Atom x5-E3940 system-on-chip, a quad-core processor with a base frequency of 1.60 GHz and turbo capability up to 1.80 GHz. This energy-efficient SoC delivers sufficient compute performance for embedded control, digital signage, thin client, and edge computing workloads while maintaining low thermal output.

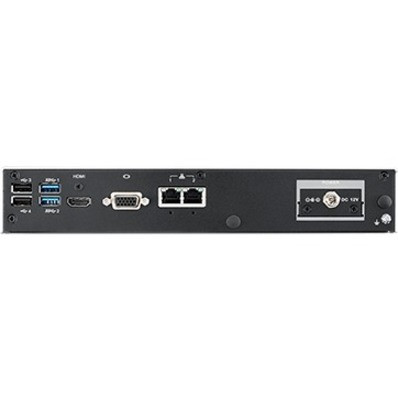

Graphics are handled by the integrated Intel HD Graphics 500 controller, which shares system DDR3L SDRAM. The GPU supports dual independent displays via one 4K-capable HDMI port and one legacy VGA output, enabling flexible multi-monitor setups for kiosks, control panels, or information displays.
Storage & Expansion Flexibility
The ARK-2232L provides multiple storage and expansion interfaces to accommodate various application needs. It includes an mSATA slot and supports one 2.5" SATA drive for primary storage. Expansion is further enhanced via a Mini PCIe slot with SIM holder for cellular or communication modules, plus an M.2 2230 E-key slot for Wi-Fi modules.
- mSATA storage support
- 2.5" SATA bay
- Mini PCIe with SIM holder
- M.2 2230 E-key for Wi-Fi
Key Product Advantages
The Advantech ARK-2232L stands out with its combination of compact size, extensive I/O, and industrial durability. Its modular design allows for customization through Advantech's iDoor and EMIO miniPCIe modules, enabling tailored solutions for specific vertical applications without requiring custom hardware development.
For buyers comparing similar models, the strongest advantage is usually the balance between dependable day-to-day operation and a simpler rollout experience. That means less time spent troubleshooting fit, compatibility, or user adoption after installation, which is especially important for shared business environments and repeat purchasing decisions.
Deployment / Use Cases
The ARK-2232L Box PC is ideally suited for embedded and industrial computing applications where space constraints, environmental challenges, and reliability requirements preclude standard desktop computers. Its compact form factor, wide power input range, and extended temperature tolerance make it a versatile platform for deployment in manufacturing floors, transportation systems, retail environments, and outdoor installations.
Common use cases include digital signage controllers, kiosk systems, thin client terminals, industrial automation controllers, and edge computing nodes. The system's dual display capability supports information displays in public spaces, while its expansion slots enable connectivity options like Wi-Fi, cellular, or specialized I/O through Advantech's module ecosystem.
Digital Signage & Kiosk Controller
With 4K HDMI output, compact size, and reliable operation, the ARK-2232L serves as an excellent media player or interactive kiosk controller for retail, hospitality, and public information displays.
- 4K video playback capability
- Compact size for behind-display mounting
- 24/7 operation reliability
Industrial Automation & Control
The wide temperature range, lockable power input, and expansion options make this Box PC suitable for factory automation, process control, and monitoring applications in industrial environments.
- -20 to 60 °C operating range
- 9–36V DC input compatibility
- Mini PCIe expansion for specialized I/O
Physical Profile
The ARK-2232L adopts a compact Box PC form factor measuring just 10.24 inches wide, 5.52 inches deep, and 1.73 inches high (260 × 140.20 × 44 mm). With an approximate weight of 4.19 pounds (1900 grams), the system is lightweight yet robustly constructed for industrial applications. The enclosure is designed for wall mounting or placement in confined spaces, with ventilation ensuring adequate thermal management for the fanless design. The small footprint makes it ideal for integration into equipment racks, behind displays, or within machinery enclosures where space is at a premium.
- Width
- 10.24" (260 mm)
- Depth
- 5.52" (140.20 mm)
- Height
- 1.73" (44 mm)
- Weight
- 4.19 lb (1900 g)
What's in the Box
Each ARK-2232L-S6A1 unit includes the complete desktop computer system and essential accessories for deployment.
Package contents include ARK-2232L Desktop Computer, 1 x User Manual (Simplified Chinese), 1 x China RoHS Wall Mounting Kit RMM 3.2 Utility CD Package. These included items support setup, installation, and immediate deployment without needing to source the core bundled accessories separately.
Highlights
- Intel Atom x5-E3940 quad-core processor with 1.60 GHz base clock and 1.80 GHz turbo
- DDR3L SDRAM memory technology for efficient operation
- Intel HD Graphics 500 with shared memory for display processing
- Dual independent display support via 4K HDMI and VGA outputs
- 6 USB ports total (4× USB 2.0, 2× USB 3.0) for peripheral connectivity
- Intel i210-IT Gigabit Ethernet for reliable wired networking
- Compact Box PC form factor: 10.24" × 5.52" × 1.73" (260 × 140.20 × 44 mm)
- Wide 9–36V DC input range with lockable power jack
- Extended operating temperature range: -20 to 60 °C
- Multiple expansion options: Mini PCIe with SIM holder, M.2 2230 E-key, mSATA, and 2.5" SATA
Specifications
| Specifications | |
|---|---|
| Manufacturer | Advantech Co., Ltd |
| Manufacturer Part Number | ARK-2232L-S6A1 |
| Brand Name | Advantech |
| Product Series | ARK-2000 |
| Product Model | ARK-2232L |
| Product Name | ARK-2232L Desktop Computer |
| Packaged Quantity | 1 |
| Product Type | Desktop Computer |
| Processor | |
| Processor Manufacturer | Intel |
| Processor Type | Atom |
| Processor Model | x5-E3940 |
| Processor Core | Quad-core (4 Core) |
| Processor Speed | 1.60 GHz |
| Maximum Turbo Speed | 1.80 GHz |
| Memory | |
| Memory Technology | DDR3L SDRAM |
| Display & Graphics | |
| Graphics Controller Manufacturer | Intel |
| Graphics Controller Model | HD Graphics 500 |
| Graphics Memory Technology | DDR3L SDRAM |
| Graphics Memory Accessibility | Shared |
| Network & Communication | |
| LAN Model | i210-IT |
| Ethernet Technology | Gigabit Ethernet |
| Interfaces/Ports | |
| HDMI | Yes |
| Total Number of USB Ports | 6 |
| Number of USB 2.0 Ports | 4 |
| Number of USB 3.0 Ports | 2 |
| VGA | Yes |
| Physical Characteristics | |
| Form Factor | Box PC |
| Height | 1.73" (44 mm) |
| Width | 10.24" (260 mm) |
| Depth | 5.52" (140.20 mm) |
| Weight (Approximate) | 4.19 lb (1900 g) |
| Miscellaneous | |
| Package Contents | ARK-2232L Desktop Computer 1 x User Manual (Simplified Chinese) 1 x China RoHS Wall Mounting Kit RMM 3.2 Utility CD Package |
| Country of Origin | China |
| Environmentally Friendly | Yes |
| Environmental Compliance | China Restriction of Hazardous Substances (China RoHS),Restriction of Hazardous Substances (RoHS) |
User Manual
FAQ
What processor does the Advantech ARK-2232L use, and what are its key specifications?
The ARK-2232L is powered by the Intel Atom x5-E3940 system-on-chip, a quad-core processor with a base clock speed of 1.60 GHz and maximum turbo frequency of 1.80 GHz. This energy-efficient SoC is designed for embedded and industrial applications, balancing performance with low power consumption and thermal output for reliable operation in constrained environments.
How many USB ports does the ARK-2232L have, and what are their specifications?
This Box PC includes a total of six USB ports, with four USB 2.0 ports and two USB 3.0 ports. The USB 3.0 ports offer faster data transfer speeds for external storage and peripherals, while the USB 2.0 ports provide connectivity for keyboards, mice, and other standard input devices. This mix supports a wide range of peripheral requirements in embedded deployments.
What expansion options are available for adding functionality to the ARK-2232L?
The ARK-2232L offers multiple expansion interfaces: a Mini PCIe slot with SIM holder for cellular or communication modules, an M.2 2230 E-key slot for Wi-Fi modules, an mSATA slot for storage, and support for one 2.5" SATA drive. Additionally, it is compatible with Advantech's iDoor and EMIO miniPCIe modules, allowing functional expansion through standardized add-ons for specialized I/O requirements.
What are the physical dimensions and weight of the ARK-2232L Box PC?
The ARK-2232L measures 10.24 inches in width, 5.52 inches in depth, and 1.73 inches in height (260 × 140.20 × 44 mm). It weighs approximately 4.19 pounds (1900 grams). This compact and lightweight form factor makes it suitable for wall mounting, integration into equipment racks, or placement in space-constrained environments typical of industrial and commercial installations.
What power input does the ARK-2232L require, and what environmental conditions can it operate in?
The ARK-2232L accepts a wide-range DC input of 9–36V through a lockable DC jack, providing flexibility for various power sources in industrial settings. It operates across an extended temperature range from -20 to 60 °C, making it suitable for deployment in non-climate-controlled environments such as factory floors, outdoor kiosks, or transportation systems where temperature fluctuations are common.
What processor does this product use?
This product uses the Atom processor for everyday performance and multitasking.
