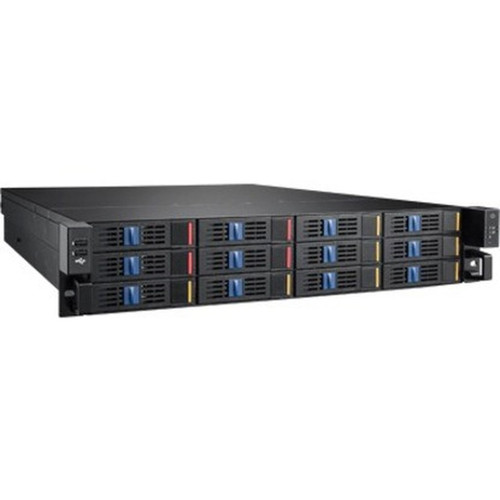

Advantech HPC-8212 Server Case - Rack-mountable - 2U - 12 x Bay - 2 x 550 W - Power Supply Installed - ATX, Micro ATX Motherboard - 12 (HPC-8212SA-R5A1E)
Business volume discounts
Technical guidance
Preparation & staging
QC · ON · AB · BC
Product Features
Motherboard Supported: ATX,Micro ATX
Number of Fans Installed: 4
Installed Fan Size: 3.15" (80 mm)
Number of External 2.5"/3.5" Bays: 12
Number of Total Expansion Bays: 12
Total Number of Expansion Slots: 6
Total Number of USB Ports: 2
Power Supply Installed: Yes
Number of Power Supplies Supported: 2
Number of Power Supplies Installed: 2
Power Supply Wattage: 550 W
Compatible Rack Unit: 2U
Form Factor: Rack-mountable
Height: 3.48" (88.40 mm)
Width: 17.24" (438 mm)
Depth: 21.26" (540 mm)
Weight (Approximate): 55.12 lb (25000 g)
Country of Origin: China
- Supports micro ATX motherboard to provide a significant number of PCI slots, expansion slots and peripheral ports with enhanced heat dissipation capability
- 12 expansion bays - Add more hardware and make the machine powerful enough to seamlessly handle critical and heavy computing apps
- Sturdy 2U Rack-mountable case to shield censorious hardware and the user-friendly structure enables easy operations
[custom-specifications]
| Specifications | |
| Manufacturer | Advantech Co., Ltd |
| Manufacturer Part Number | HPC-8212SA-R5A1E |
| Manufacturer Website Address | http://www.advantech.com |
| Brand Name | Advantech |
| Product Model | HPC-8212 |
| Product Name | HPC-8212 Server Case |
| Product Type | Server Case |
| Technical Information | |
| Motherboard Supported | ATX,Micro ATX |
| Number of Fans Installed | 4 |
| Installed Fan Size | 3.15" (80 mm) |
| Bays | |
| Number of External 2.5"/3.5" Bays | 12 |
| Number of Total Expansion Bays | 12 |
| I/O Expansions | |
| Total Number of Expansion Slots | 6 |
| Interfaces/Ports | |
| Total Number of USB Ports | 2 |
| Power Description | |
| Power Supply Installed | Yes |
| Number of Power Supplies Supported | 2 |
| Number of Power Supplies Installed | 2 |
| Power Supply Wattage | 550 W |
| Physical Characteristics | |
| Compatible Rack Unit | 2U |
| Form Factor | Rack-mountable |
| Height | 3.48" (88.40 mm) |
| Width | 17.24" (438 mm) |
| Depth | 21.26" (540 mm) |
| Weight (Approximate) | 55.12 lb (25000 g) |
| Miscellaneous | |
| Country of Origin | China |
[/custom-specifications]
[custom-options]
| Product | Advantech Mounting Rail Kit for Chassis |
| SKU | 9680017208 |
| Sale Price | $95.95 |
[/custom-options]
[custom-user-manual]
Available Documentation:
User-Manual
Manufacturer-Brochure
[/custom-user-manual]
