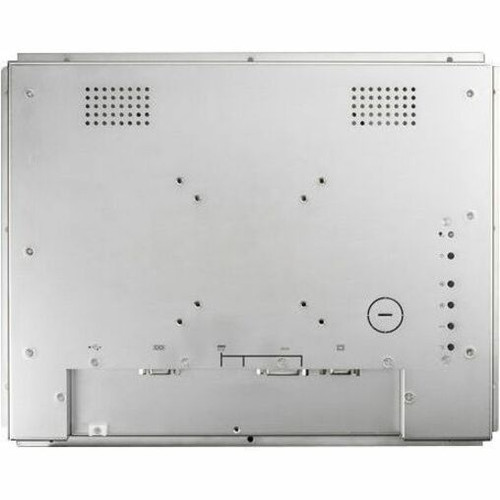

Advantech IDS-3106R-80VGA1E 7" Class Open-frame LED Touchscreen Monitor - 25 ms - 6.5" Viewable - 4-wire Resistive - Multi-touch - 640 (IDS-3106R-80VGA1E)
Business volume discounts
Technical guidance
Preparation & staging
QC · ON · AB · BC
Product Features
Screen Size Class: 7"
Viewable Screen Size: 6.5"
Screen Mode: VGA
Panel Technology: Thin Film Transistor (TFT)
Response Time: 25 ms
Horizontal Viewing Angle: 160°
Vertical Viewing Angle: 140°
Mount Type: Bracket-mountable,Rear Mount
Backlight Technology: LED
Features: On-screen Display (OSD)
Glass Hardness: 3H
Maximum Resolution: 640 x 480
Color Supported: 16.2 Million Colors
Native Contrast Ratio: 600:1
Brightness: 800 cd/m²
Touchscreen Type: 4-wire Resistive
Multi-touch Screen: Yes
DVI: Yes
VGA: Yes
Operating Temperature Range: 32°F (0°C) to 122°F (50°C)
Operating Humidity Range: 5% to 95% (Non-condensing)
VESA Mount Compatible: Yes
Height: 6.30" (160 mm)
Width: 8.46" (215 mm)
Depth: 1.38" (35 mm)
Weight (Approximate): 1.76 lb (800 g)
- Open-frame LED touchscreen monitor offers flexible integration and vibrant visuals, perfect for kiosks and industrial applications
- VGA touchscreen provides VGA resolution up to 640 x 480 pixels for basic display needs and legacy system compatibility
- 4-wire Resistive technology measures voltage changes between top and bottom sheets to accurately determine touch location
- LED backlight technology reduces power use and hazardous materials for eco-friendly performance
- View content easily in bright environments with 800 cd/m² brightness for uninterrupted touch control
- Open-frame LED Touchscreen Monitor features durable 3H glass hardness that resists scratches, dust, and moisture for long-lasting touchscreen protection
- VESA mount compatibility allows flexible installation on walls or stands to suit your workspace needs
[custom-specifications]
| Specifications | |
| Manufacturer | Advantech Co., Ltd |
| Manufacturer Part Number | IDS-3106R-80VGA1E |
| Manufacturer Website Address | http://www.advantech.com |
| Brand Name | Advantech |
| Product Series | IDS-3106R |
| Product Model | IDS-3106R-80VGA1E |
| Product Name | IDS-3106 6.5" 640 x 480, VGA/DVI interface, Ultra Slim Touch Open Frame Monitor |
| Product Type | Open-frame LED Touchscreen Monitor |
| Technical Information | |
| Screen Size Class | 7" |
| Viewable Screen Size | 6.5" |
| Screen Mode | VGA |
| Panel Technology | Thin Film Transistor (TFT) |
| Response Time | 25 ms |
| Horizontal Viewing Angle | 160° |
| Vertical Viewing Angle | 140° |
| Mount Type | Bracket-mountable,Rear Mount |
| Backlight Technology | LED |
| Features | On-screen Display (OSD) |
| Glass Hardness | 3H |
| Video | |
| Maximum Resolution | 640 x 480 |
| Color Supported | 16.2 Million Colors |
| Native Contrast Ratio | 600:1 |
| Brightness | 800 cd/m² |
| Touchscreen Information | |
| Touchscreen Type | 4-wire Resistive |
| Multi-touch Screen | Yes |
| Interfaces/Ports | |
| DVI | Yes |
| VGA | Yes |
| Environmental Conditions | |
| Operating Temperature Range | 32°F (0°C) to 122°F (50°C) |
| Operating Humidity Range | 5% to 95% (Non-condensing) |
| Physical Characteristics | |
| VESA Mount Compatible | Yes |
| Height | 6.30" (160 mm) |
| Width | 8.46" (215 mm) |
| Depth | 1.38" (35 mm) |
| Weight (Approximate) | 1.76 lb (800 g) |
[/custom-specifications]
[custom-user-manual]
Available Documentation:
User-Manual
Manufacturer-Brochure
[/custom-user-manual]
