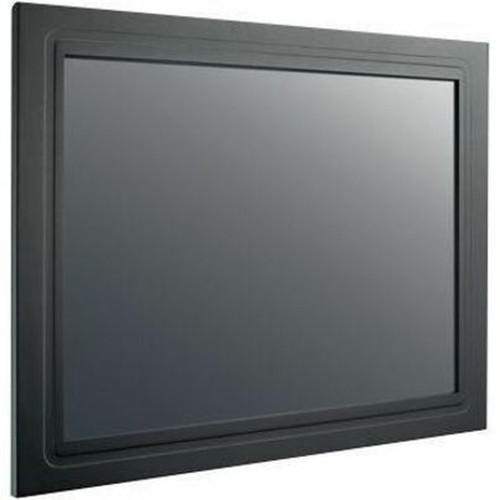

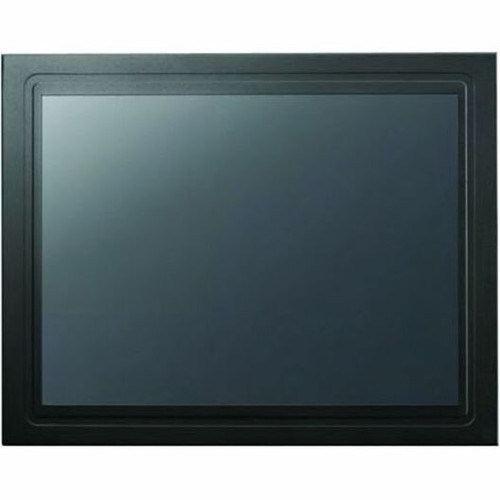

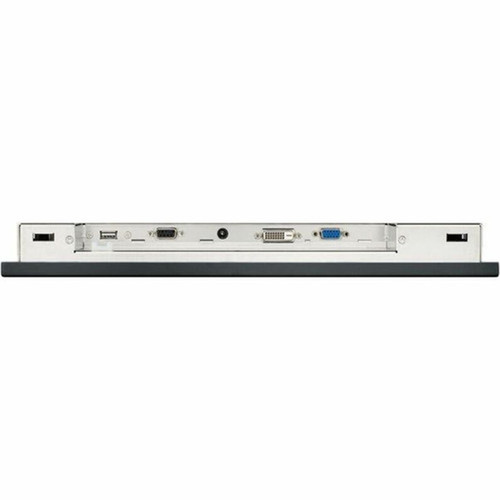

Advantech IDS-3219 19" Class LED Touchscreen Monitor - 5 ms - 19" Viewable - 5-wire Resistive - 1280 x 1024 - SXGA - 16.7 Million - - (IDS-3219R-35SXA1E)
Business volume discounts
Technical guidance
Preparation & staging
QC · ON · AB · BC
Product Features
- 19" SXGA Industrial Panel Mount Monitor
- 1 x M cable USB-A(M)/USB-A(M) 180 cm
- 1 x VGA cable 15P(M) 180 cm
- 8 x clamper
- 8 x clamper screw M4_25L
- 1 x cable clamp
- 1 x cable clamp screw
- 1 x cable tie
Screen Size Class: 19"
Viewable Screen Size: 19"
Screen Mode: SXGA
Response Time: 5 ms
Horizontal Viewing Angle: 170°
Vertical Viewing Angle: 160°
Mount Type: Panel Mount,Front Mount
Backlight Technology: LED
Features: Anti-reflective,On-screen Display (OSD),Power Switch,AutoTune
Glass Hardness: 3H
Maximum Resolution: 1280 x 1024
Color Supported: 16.7 Million Colors
Native Contrast Ratio: 1,000:1
Brightness: 350 cd/m²
Touchscreen Type: 5-wire Resistive
USB: Yes
VGA: Yes
Number of USB Ports: 1
DVI-D: Yes
Operating Temperature Range: 32°F (0°C) to 113°F (45°C)
Non-operating Temperature Range: -4°F (-20°C) to 140°F (60°C)
Operating Humidity Range: 5% to 95% (Non-condensing)
VESA Mount Compatible: Yes
VESA Mount Standard: 100 x 100
Height: 14.74" (374.40 mm)
Width: 17.70" (449.70 mm)
Depth: 1.61" (40.90 mm)
Package Contents:
Environmentally Friendly: Yes
Environmental Compliance: Restriction of Hazardous Substances (RoHS)
Limited Warranty: 2 Year
- Enjoy vibrant visuals and responsive interaction with the advanced sxga, led touchscreen monitor LED touchscreen
- SXGA touchscreen offers SXGA resolution up to 1280 x 1024 pixels for sharp, detailed visuals ideal for office and industrial use
- 5-wire Resistive technology works with almost any objectstylus, gloved hand, pen, or fingersfor versatile touch input
- LED backlight technology reduces power use and hazardous materials for eco-friendly performance
- Captivating visuals with about 350 cd/m² brightness levels for clear and vivid touchscreen performance
- 16.7 million colors supported for lifelike visuals and smooth touch-based creative workflows
- LED Touchscreen Monitor features durable 3H glass hardness that resists scratches, dust, and moisture for long-lasting touchscreen protection
- VESA mount compatibility allows flexible installation on walls or stands to suit your workspace needs
[custom-specifications]
| Specifications | |
| Manufacturer | Advantech Co., Ltd |
| Manufacturer Part Number | IDS-3219R-35SXA1E |
| Manufacturer Website Address | http://www.advantech.com |
| Brand Name | Advantech |
| Product Model | IDS-3219 |
| Product Name | 19" SXGA Industrial Panel Mount Monitor |
| Product Type | LED Touchscreen Monitor |
| Technical Information | |
| Screen Size Class | 19" |
| Viewable Screen Size | 19" |
| Screen Mode | SXGA |
| Response Time | 5 ms |
| Horizontal Viewing Angle | 170° |
| Vertical Viewing Angle | 160° |
| Mount Type | Panel Mount,Front Mount |
| Backlight Technology | LED |
| Features | Anti-reflective,On-screen Display (OSD),Power Switch,AutoTune |
| Glass Hardness | 3H |
| Video | |
| Maximum Resolution | 1280 x 1024 |
| Color Supported | 16.7 Million Colors |
| Native Contrast Ratio | 1,000:1 |
| Brightness | 350 cd/m² |
| Touchscreen Information | |
| Touchscreen Type | 5-wire Resistive |
| Interfaces/Ports | |
| USB | Yes |
| VGA | Yes |
| Number of USB Ports | 1 |
| DVI-D | Yes |
| Environmental Conditions | |
| Operating Temperature Range | 32°F (0°C) to 113°F (45°C) |
| Non-operating Temperature Range | -4°F (-20°C) to 140°F (60°C) |
| Operating Humidity Range | 5% to 95% (Non-condensing) |
| Physical Characteristics | |
| VESA Mount Compatible | Yes |
| VESA Mount Standard | 100 x 100 |
| Height | 14.74" (374.40 mm) |
| Width | 17.70" (449.70 mm) |
| Depth | 1.61" (40.90 mm) |
| Miscellaneous | |
| Package Contents |
|
| Environmentally Friendly | Yes |
| Environmental Compliance | Restriction of Hazardous Substances (RoHS) |
| Warranty | |
| Limited Warranty | 2 Year |
[/custom-specifications]
