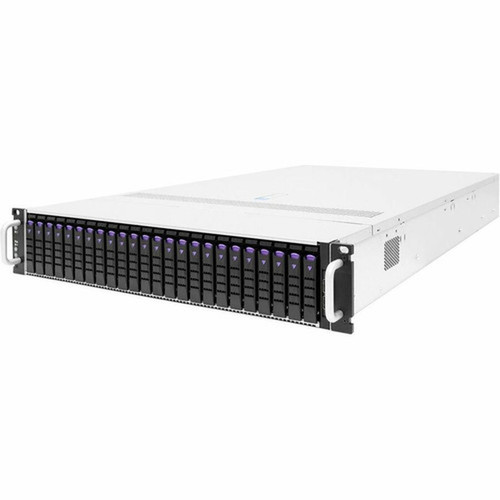

AIC XP1-S201HK01 SB201-HK Barebone System - 2U Rack-mountable - Dual Socket LGA-4677 - Intel C741 Chipset - 32x DDR5 Slots
Business volume discounts
Technical guidance
Preparation & staging
QC · ON · AB · BC
Product Features
Technical Overview
The SB201-HK incorporates a Serial ATA/600 controller for direct-attached storage connectivity, along with two SATA interfaces and two M.2 slots for NVMe storage options. Network connectivity is handled by dual Gigabit Ethernet ports with RJ-45 connectors, providing standard server networking capabilities.
I/O includes two USB 3.2 Gen 1 ports for peripheral connections, along with VGA and Mini DisplayPort video outputs for local management. The system is powered by dual hot-swappable power supplies with a maximum combined output of 1.60 kW and a thermal design power of 350 W, ensuring reliable operation in rack environments.
Relevant factors for this section include Number of Processors Supported, Processor Socket, Processor Supported, Chipset Manufacturer. When those points are considered together, they give buyers a clearer picture of how the product is equipped, how it fits into deployment, and what kind of day-to-day role it is meant to support.
Key Product Advantages
These strengths make the product easier to deploy and manage in real environments, especially where reliability, usability, and day-to-day operational continuity matter. Notable benefits include High-Density Server Platform, Enterprise-Grade Reliability.
High-Density Server Platform
The 2U form factor maximizes rack space efficiency while providing extensive expansion capabilities through 26 bays and 4 PCIe x16 slots.
- Dual LGA-4677 sockets for Xeon Scalable processors
- 32 DDR5 memory slots for up to 4 TB capacity
- Intel C741 chipset with enterprise features
Enterprise-Grade Reliability
Dual redundant power supplies with 1.60 kW maximum output ensure continuous operation, while the 350 W thermal design supports sustained performance.
- Hot-swappable power supply design
- RoHS environmental compliance
- Gigabit Ethernet with dual ports
Deployment / Use Cases
The SB201-HK barebone system is designed for organizations requiring scalable server infrastructure with flexible configuration options. Its dual-processor architecture and extensive expansion make it suitable for virtualization hosts, database servers, high-performance computing nodes, and private cloud infrastructure.
Data centers can deploy these systems as compute nodes in HPC clusters, where the 32 memory slots and PCIe expansion support memory-intensive workloads and accelerator cards. Enterprises can configure them as virtualization hosts running multiple virtual machines, with storage expansion through the 26 bays and M.2 interfaces.
Virtualization & Cloud Infrastructure
Configure with maximum memory and multiple network adapters to host virtual machines for private cloud or VDI deployments.
Data-Intensive Workloads
Utilize the extensive storage bays and PCIe slots for big data analytics, database servers, or media processing applications.
Physical Profile

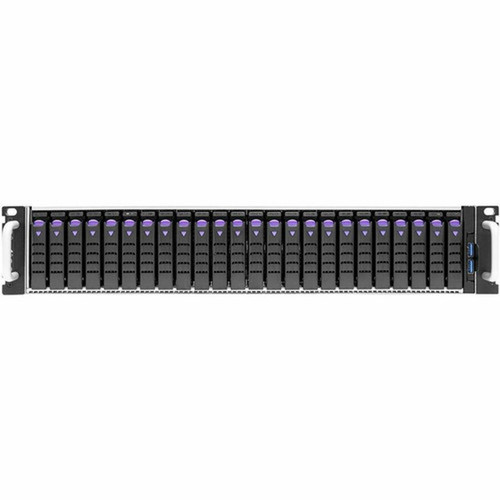

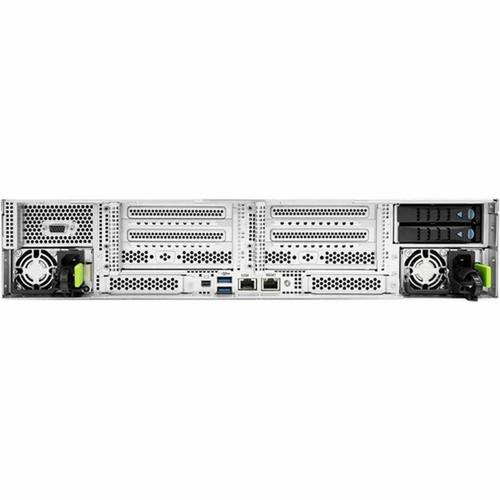

The SB201-HK chassis occupies 2U of standard 19-inch rack space with dimensions of 3.50" (88.90 mm) height, 17.20" (436.88 mm) width, and 33.50" (850.90 mm) depth. The rack-mountable design includes front-accessible drive bays and rear I/O panels for convenient maintenance and cable management in data center environments.
The physical profile is practical for deployment planning because the dimensions and weight are clearly defined: 2U, 17.20" (436.88 mm), 33.50" (850.90 mm). This helps confirm rack, shelf, desk, or cabinet fit before installation.
- Width
- 17.20" (436.88 mm)
- Depth
- 33.50" (850.90 mm)
- Height
- 2U
Highlights
- Dual Socket LGA-4677 supports Intel Xeon Gold, Bronze, Silver, and Platinum processors
- 32 DDR5 memory slots with DDR5-5600/PC5-44800 standards for high bandwidth
- Intel C741 chipset provides enterprise platform features and reliability
- 26 total expansion bays for extensive storage and peripheral connectivity
- 4 PCI Express x16 slots for adding network, storage, or acceleration cards
- 2 hot-swappable power supplies with 1.60 kW maximum output
- 2U rack-mountable chassis optimizes data center space utilization
- Dual Gigabit Ethernet ports with RJ-45 connectors for network connectivity
- Serial ATA/600 controller with 2 SATA interfaces and 2 M.2 slots
- RoHS environmental compliance meets hazardous substance restrictions
Specifications
| Specifications | |
|---|---|
| Manufacturer | Advanced Industrial Computer, Inc |
| Manufacturer Part Number | XP1-S201HK01 |
| Brand Name | AIC |
| Product Model | SB201-HK |
| Product Name | SB201-HK Barebone System |
| Product Type | Barebone System |
| Processor | |
| Number of Processors Supported | 2 |
| Processor Socket | Socket LGA-4677 |
| Processor Supported | Xeon Gold,Xeon Bronze,Xeon Silver,Xeon Platinum |
| 64-bit Processing | Yes |
| Chipset | |
| Chipset Manufacturer | Intel |
| Chipset Model | C741 |
| Memory | |
| Memory Technology | DDR5 SDRAM |
| Memory Standard | DDR5-5600/PC5-44800 |
| Total Number of Memory Slots | 32 |
| Controllers | |
| Controller Type | Serial ATA/600 |
| Network & Communication | |
| Ethernet Technology | Gigabit Ethernet |
| I/O Expansions | |
| Number of Total Expansion Bays | 26 |
| Total Number of Expansion Slots | 4 |
| Number of PCI Express x16 Slots | 4 |
| Number of M.2 Interfaces | 2 |
| Interfaces/Ports | |
| Total Number of USB Ports | 2 |
| Number of USB 3.2 Gen 1 Ports | 2 |
| Network (RJ-45) | Yes |
| Number of Network (RJ-45) Ports | 2 |
| Number of SATA Interfaces | 2 |
| Number of VGA Ports | 1 |
| Mini DisplayPort | Yes |
| Power Description | |
| Number of Power Supplies Installed | 2 |
| Maximum Power Supply Wattage | 1.60 kW |
| Thermal Design Power | 350 W |
| Physical Characteristics | |
| Form Factor | Rack-mountable |
| Rack Height | 2U |
| Height | 3.50" (88.90 mm) |
| Width | 17.20" (436.88 mm) |
| Depth | 33.50" (850.90 mm) |
| Miscellaneous | |
| Environmental Compliance | Restriction of Hazardous Substances (RoHS) |
User Manual
FAQ
What processors are compatible with the SB201-HK barebone system?
The system supports Intel Xeon Scalable processors through its dual LGA-4677 sockets. Compatible processor families include Xeon Gold, Xeon Bronze, Xeon Silver, and Xeon Platinum series. These 64-bit processors provide the performance needed for enterprise workloads like virtualization, databases, and high-performance computing.
How much memory can the SB201-HK system support?
With 32 DDR5 memory slots supporting DDR5-5600/PC5-44800 standards, the system can accommodate substantial memory configurations. The exact maximum capacity depends on the memory modules installed, but the platform is designed to support high-density memory configurations suitable for memory-intensive applications and virtualization hosts.
What expansion capabilities does this barebone system offer?
The chassis provides 26 total expansion bays for storage drives and four PCI Express x16 slots for add-in cards. Additionally, it includes two M.2 interfaces for NVMe storage and two SATA interfaces. This expansion flexibility allows configuration with storage controllers, network adapters, GPUs, or other acceleration cards based on workload requirements.
What power supply configuration does the system include?
The SB201-HK comes with two installed power supplies that support hot-swappable operation. The maximum combined power supply wattage is 1.60 kW, with a thermal design power of 350 W. This redundant power design enhances reliability in data center environments where continuous operation is critical.
What network connectivity is built into the barebone system?
The system includes dual Gigabit Ethernet ports with RJ-45 connectors, providing standard server networking capabilities. These ports support ultra-fast network speeds for data transfer and system communication. Additional network connectivity can be added through the PCIe expansion slots if 10GbE or other specialized networking is required.
What are the physical dimensions and rack requirements?
The chassis measures 3.50" (88.90 mm) in height, 17.20" (436.88 mm) in width, and 33.50" (850.90 mm) in depth, occupying 2U of standard 19-inch rack space. The rack-mountable design is optimized for data center deployment with front-accessible components and rear I/O for convenient maintenance and cable management.
