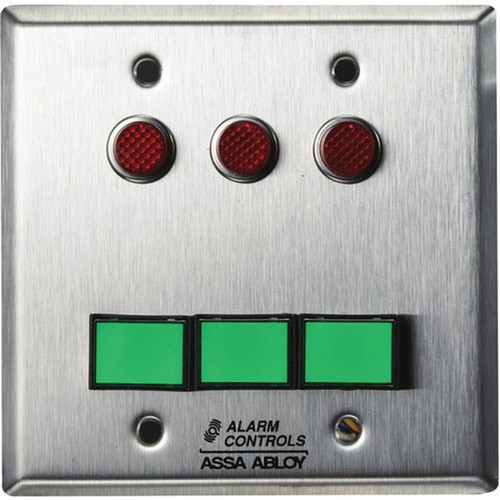

Alarm Controls SLP-3L Latch Monitor for Electric Lock Monitoring and Access Control
Business volume discounts
Technical guidance
Preparation & staging
QC · ON · AB · BC
Product Features
- Designed to release or secure and monitor three electric locks
- Switches and LEDs terminated with colored leads
- Three DPDT illuminated latching or momentary push buttons with hibrightness built-in LEDs
- Marketing Information:
- Release or secure and monitor one or more electrified lock
- Switches mounted on wall plate with stainless steel finish. 1, 2, 3, 4 gang options available.
- 1/2" red LED status indicator
- Green alternating push button; hi-brightness LED illumination
- XL with X designating the number of LEDs and illuminated alternating buttons. Specify 1 - 8 for that many LEDs/buttons.
- Custom legends, green and yellow LEDs, available as custom parts
- DPDT switch contacts rated 3A at 35 VDC or 120 VAC
- Switch depth behind plate: 1-1/2"
- LED operates on 12 or 24 VDC/VAC
- Switch and LED terminated with colored leads
- Green
- Red
Monitor and control stations with rectangular illuminated DPDT latching switches that alternate between open (disconnected) and closed (connected) each time they're pressed. Stations include LED status indicators and are designed to release or secure and monitor one or more electrified lock.
Features | Standard Features
Options
Specifications
Dimensions: Varies based on finished good
Electrical:
[custom-specifications]
Manufacturer: ASSA ABLOY
Manufacturer Part Number: SLP-3L
Manufacturer Website Address: http://www.assaabloy.com
Brand Name: Alarm Controls
Product Model: SLP-3L
Product Name: SLP-3L Latch Monitor
Product Type: Latch Monitor
Physical Characteristics
Product Color:
- Green
- Red
Form Factor: Wall Mountable
Miscellaneous
Application/Usage: Electric Lock
[/custom-specifications]
