Algo 8039 SIP Video Intercom - Outdoor IP65 Passivated Aluminum - 187° Viewing Angle - PoE
Business volume discounts
Technical guidance
Preparation & staging
QC · ON · AB · BC
Product Features
Technical Overview
The Algo 8039 combines advanced video, audio, and networking technologies in a compact outdoor-rated enclosure. The fisheye camera delivers a 187° field of view in both horizontal and vertical planes, enabling clear visibility of visitors and surroundings. Wideband audio ensures high-quality two-way communication, while the keypad and call button facilitate intuitive user interaction.
Network connectivity is handled through SIP protocol support and multicast capability, enabling efficient integration with IP telephony and video management systems. The device operates on 48V PoE, adhering to IEEE 802.3af standards for power delivery over Ethernet. Environmental compliance includes RoHS certification, and the passivated aluminum construction provides corrosion resistance for long-term outdoor use.
Relevant factors for this section include Ingress Protection (IP) Rating, Horizontal Viewing Angle, Vertical Viewing Angle. When those points are considered together, they give buyers a clearer picture of how the product is equipped, how it fits into deployment, and what kind of day-to-day role it is meant to support.
Key Product Advantages
The Algo 8039 stands out with its exceptional viewing coverage, robust outdoor construction, and network-friendly design. The 187° fisheye camera eliminates blind spots at entry points, while the IP65 rating guarantees performance in rain, dust, and temperature extremes. Passivated aluminum resists corrosion, maintaining appearance and functionality over years of exposure.
Enhanced Visibility
The 187° horizontal and vertical viewing angles provide comprehensive coverage of doorways, pathways, and adjacent areas, reducing security gaps.
- Wide field of view minimizes blind spots
- Fisheye lens allows adjustable perspective
- Clear video for visitor identification
Outdoor Durability
IP65 protection and passivated aluminum construction ensure reliable operation in outdoor environments, from commercial buildings to industrial sites.
- IP65 rating for dust and water resistance
- Passivated aluminum resists corrosion
- Suitable for harsh weather conditions
Simplified Integration
PoE power and SIP compatibility reduce installation complexity and enable seamless connection to existing VoIP and security infrastructures.
- Single cable for power and data
- SIP support for VoIP systems
- Multicast capability for efficient networking
Deployment / Use Cases
The Algo 8039 is ideal for securing exterior doors in commercial, educational, healthcare, and multi-tenant residential buildings. Its outdoor rating and durable construction make it suitable for main entrances, loading docks, parking garage access points, and perimeter gates where weather exposure is a concern.
In office complexes, the intercom provides video verification of visitors before granting access, integrating with door release systems. For apartment buildings or condominiums, it offers a reliable video door phone solution for individual units or common entryways. The device also serves well in industrial facilities for controlled access to restricted areas, with the wide viewing angle monitoring both personnel and equipment movements.
Commercial Building Entry
Deploy at main lobbies or employee entrances to screen visitors with video and audio communication before door release.
Multi-Tenant Residential Security
Install at building entrances to provide residents with video intercom functionality for guest verification and access control.
Physical Profile

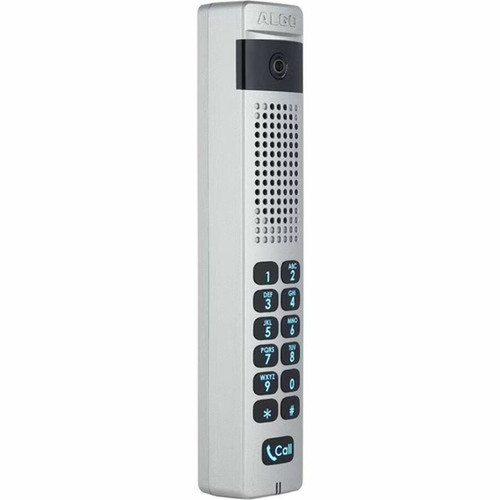

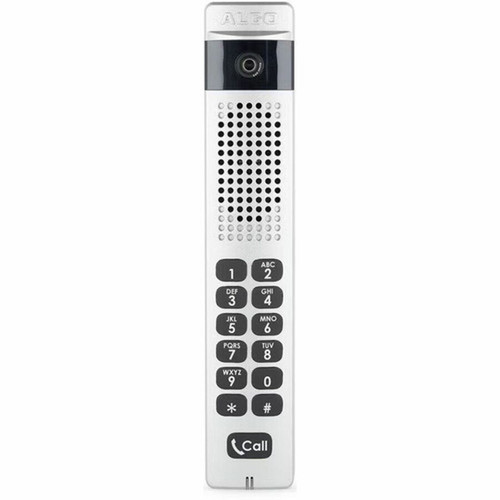

The Algo 8039 features a slim mullion form factor measuring 10.40" wide, 1.95" high, and 1.64" deep, designed for discreet mounting on door frames or walls. The passivated aluminum finish provides a professional appearance while offering corrosion resistance. At approximately 2.30 pounds, the unit is substantial enough for secure installation yet lightweight for straightforward mounting. The concealed mounting bracket and security screw with matching tool included in the package facilitate tamper-resistant installation.
- Width
- 10.40" (264.16 mm)
- Depth
- 1.64" (41.66 mm)
- Height
- 1.95" (49.53 mm)
- Weight
- 2.30 lb (1043.26 g)
What's in the Box
The package includes all necessary components for installation and operation of the video intercom system.
Highlights
- 187° horizontal and vertical viewing angles for wide coverage
- IP65-rated outdoor construction with passivated aluminum housing
- PoE-powered (IEEE 802.3af) for simplified single-cable installation
- SIP-compatible and multicast-capable for network integration
- Controllable fisheye video camera with adjustable perspective
- Wideband audio for clear two-way communication
- Keypad and call button for intuitive user interaction
- Configurable via web interface for flexible setup
- Mullion form factor for discreet door frame mounting
- RoHS compliant for environmental safety
Specifications
| Specifications | |
|---|---|
| Manufacturer | Algo Communication Products Ltd |
| Manufacturer Part Number | 8039 |
| Brand Name | Algo |
| Product Model | 8039 |
| Product Name | 8039 SIP Video Intercom |
| Product Type | Video Door Phone Sub Station |
| Technical Information | |
| Ingress Protection (IP) Rating | IP65 |
| Camera | |
| Horizontal Viewing Angle | 187° |
| Vertical Viewing Angle | 187° |
| Power Description | |
| Input Voltage | 48 V |
| Physical Characteristics | |
| Product Material | Passivated Aluminum |
| Height | 1.95" (49.53 mm) |
| Width | 10.40" (264.16 mm) |
| Depth | 1.64" (41.66 mm) |
| Weight (Approximate) | 2.30 lb (1043.26 g) |
| Miscellaneous | |
| Package Contents | 8039 SIP Video Intercom Concealed Mounting Bracket Secure Screw with Matching Security Tool. |
| Application/Usage | Outdoor,Building,Door Entry |
| Environmental Compliance | Restriction of Hazardous Substances (RoHS) |
User Manual
FAQ
What viewing angle does the Algo 8039 video intercom provide?
The Algo 8039 offers a 187° horizontal viewing angle and 187° vertical viewing angle. This wide field of view comes from a controllable fisheye camera that minimizes blind spots at entry points, providing comprehensive coverage of doorways and adjacent areas for enhanced security monitoring.
Is the Algo 8039 suitable for outdoor installation?
Yes, the Algo 8039 is designed for outdoor use with an IP65 ingress protection rating. This means it is dust-tight and protected against water jets from any direction, making it suitable for installation in outdoor environments exposed to rain, snow, and temperature variations. The passivated aluminum construction further enhances durability against corrosion.
How is the Algo 8039 powered and connected?
The Algo 8039 is powered via Power over Ethernet (PoE) following the IEEE 802.3af standard, requiring 48V input voltage. This allows both power and data to be delivered over a single Ethernet cable, simplifying installation. The device is SIP-compatible for integration with VoIP systems and supports multicast capability for efficient network communication.
What mounting options are available for this video intercom?
The Algo 8039 features a mullion form factor designed for discreet mounting on door frames or walls. The package includes a concealed mounting bracket and a secure screw with matching security tool for tamper-resistant installation. The slim dimensions of 10.40" wide, 1.95" high, and 1.64" deep allow for space-efficient placement at entry points.
Can the Algo 8039 be integrated with existing security systems?
Yes, the Algo 8039 supports SIP protocol compatibility, allowing integration with IP telephony systems and video management platforms. Its multicast capability enables efficient network communication in larger deployments. The device is configurable via a web interface, providing flexibility to adjust settings for specific security system requirements and door release integrations.
What audio features does this video intercom include?
The Algo 8039 incorporates wideband audio technology for high-quality two-way communication. This ensures clear audio transmission between the intercom station and the receiving endpoint, whether it's a desk phone, softphone, or dedicated intercom unit. The device includes a keypad and call button for intuitive user interaction during visitor conversations.
