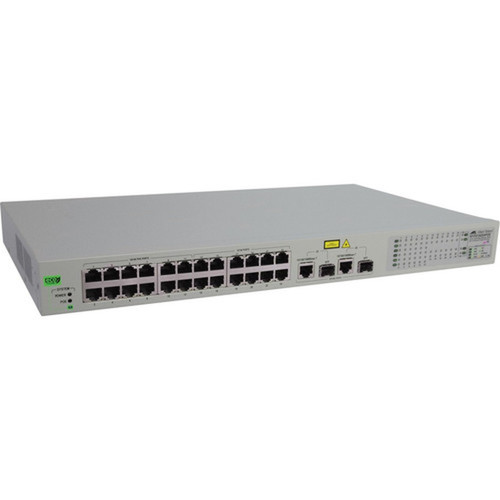

Allied Telesis AT-FS750/28PS-10 WebSmart Switch - 24 Port Fast Ethernet - 2 SFP Slots - Layer 2 Managed - Rack/Wall/Desktop Mountable
Business volume discounts
Technical guidance
Preparation & staging
QC · ON · AB · BC
Product Features
Technical Overview
This switch operates as a Layer 2 managed device, offering advanced networking features such as IGMP snooping, port mirroring, and spanning tree protocol for optimized traffic management and network stability. The 24 Fast Ethernet ports support 10/100Base-TX speeds, while the two Gigabit Ethernet expansion slots enable high-speed uplinks through SFP modules.
The switch supports both twisted pair and optical fiber media, providing flexibility in cable selection for distances up to 100 meters with copper or extended ranges with fiber optics. The built-in power supply delivers consistent voltage to all connected devices, ensuring reliable operation without redundant power support.
Relevant factors for this section include Total Number of Network Ports, Uplink Port, Modular, Media Type Supported. When those points are considered together, they give buyers a clearer picture of how the product is equipped, how it fits into deployment, and what kind of day-to-day role it is meant to support.
Key Product Advantages
The AT-FS750/28PS-10 stands out with its balanced combination of port density, management capabilities, and deployment flexibility. The WebSmart management interface provides intuitive control over network configuration, while the hardware design supports multiple installation methods to suit various space constraints.
Flexible Deployment
Mount this switch on a wall to save desk space, install it in a standard 19-inch rack using included brackets, or place it directly on a desktop. This versatility makes it suitable for offices, retail spaces, and educational environments.
- Wall mountable for organized cable management
- Rack-mountable with included brackets
- Desktop placement with rubber feet
Expansion Ready
The two shared SFP slots allow for Gigabit fiber optic uplinks, enabling connectivity to network backbones or extending network segments beyond copper limitations. This expansion capability future-proofs your network infrastructure.
- Supports SFP modules for fiber connectivity
- Enables Gigabit uplink speeds
- Shared slot design for cost efficiency
Deployment / Use Cases
This switch is ideal for environments requiring reliable Ethernet connectivity with basic management features. Its 24-port configuration makes it suitable for connecting workstations, printers, IP phones, and other network peripherals in small office settings.
The wall-mount capability is particularly useful in retail stores or classrooms where desk space is limited, while the rack-mount option integrates seamlessly into server rooms or network closets. The manageable nature of the switch allows for traffic optimization and security configuration in growing networks.
Small Office Network Core
Serve as the central connectivity point for an office with up to 24 devices, providing managed switching with features like VLAN support and traffic prioritization for improved network performance.
Educational Lab Deployment
Install in computer labs or classrooms where multiple devices need reliable connectivity, with wall mounting keeping cables organized and out of the way of students.
Physical Profile
With dimensions of 1.73 inches in height, 17.32 inches in width, and 8.27 inches in depth, this switch occupies minimal space whether mounted or placed on a surface. The 1U-equivalent height makes it suitable for standard rack installations, while the compact footprint works well in constrained environments.
The switch features a durable construction with included rubber feet for desktop stability and comprehensive mounting hardware for secure wall or rack installation. The 11.02-pound weight indicates a solid build quality suitable for continuous operation.
- Width
- 17.32" (440 mm)
- Depth
- 8.27" (210 mm)
- Height
- 1.73" (44 mm)
- Weight
- 11.02 lb (5000 g)
What's in the Box
The package includes all necessary components for immediate deployment and operation of the switch.
Highlights
- 24 Fast Ethernet ports for connecting multiple devices
- 2 shared SFP slots for Gigabit fiber optic expansion
- Layer 2 managed switch with WebSmart interface
- Wall, rack, and desktop mounting flexibility
- Supports twisted pair and optical fiber media
- Built-in power supply for reliable operation
- Includes comprehensive mounting hardware
- Environmentally friendly design
Specifications
| Specifications | |
|---|---|
| Manufacturer | Allied Telesis, Inc |
| Manufacturer Part Number | AT-FS750/28PS-10 |
| Brand Name | Allied Telesis |
| Product Line | WebSmart |
| Product Series | FS750 |
| Product Model | FS750/28PS |
| Product Name | Fast Ethernet WebSmart Switch |
| Product Type | Ethernet Switch |
| Interfaces/Ports | |
| Total Number of Network Ports | 24 |
| Uplink Port | No |
| Modular | Yes |
| Stack Port | No |
| Port/Expansion Slot Details | 24 x Fast Ethernet Network,2 x Gigabit Ethernet Network,2 x Gigabit Ethernet Expansion Slot |
| Media & Performance | |
| Media Type Supported | Twisted Pair,Optical Fiber |
| Ethernet Technology | Fast Ethernet,Gigabit Ethernet |
| Network Technology | 10/100Base-TX,1000Base-T |
| I/O Expansions | |
| Total Number of Expansion Slots | 2.0 |
| Expansion Slot Type | SFP |
| Shared SFP Slot | Yes |
| Number of SFP Slots | 2 |
| Network & Communication | |
| Layer Supported | 2 |
| Management & Protocols | |
| Manageable | Yes |
| Power Description | |
| Power Source | Power Supply |
| Redundant Power Supply Supported | No |
| Physical Characteristics | |
| Form Factor | Wall Mountable,Rack-mountable,Desktop |
| Height | 1.73" (44 mm) |
| Width | 17.32" (440 mm) |
| Depth | 8.27" (210 mm) |
| Weight (Approximate) | 11.02 lb (5000 g) |
| Miscellaneous | |
| Package Contents | Fast Ethernet WebSmart Switch Rack-mount Brackets and Screws US Power Cord Rubber Feet User Manual/Install Guide on CD |
| Environmentally Friendly | Yes |
| Country of Origin | Taiwan |
FAQ
How many devices can I connect to this switch?
The Allied Telesis AT-FS750/28PS-10 provides 24 Fast Ethernet ports, allowing you to connect up to 24 network devices such as computers, printers, IP phones, or access points. Additionally, the two Gigabit expansion slots can be used for uplinks or additional connections using SFP modules.
Does this switch support fiber optic connections?
Yes, this switch supports fiber optic connections through its two shared SFP slots. You can install compatible SFP modules to connect via optical fiber, which is useful for extending network distances beyond the 100-meter limit of copper cabling or for connecting to fiber-based network backbones.
What management features does this WebSmart switch offer?
As a Layer 2 managed switch, the AT-FS750/28PS-10 offers WebSmart management capabilities including VLAN support, port mirroring for network monitoring, IGMP snooping for multicast traffic optimization, and spanning tree protocol for network loop prevention. These features provide control over network configuration and traffic flow.
Can this switch be mounted in a standard server rack?
Yes, this switch is rack-mountable and includes the necessary brackets and screws for installation in a standard 19-inch server rack. With a height of 1.73 inches (approximately 1U), it fits efficiently in rack environments. The switch also supports wall mounting and desktop placement for flexible deployment options.
What type of cables does this switch support?
This switch supports both twisted pair copper cables (CAT5e or higher for optimal performance) and optical fiber cables through SFP modules. The copper ports use standard RJ-45 connectors and support 10/100Base-TX speeds, while the SFP slots accommodate various fiber optic transceivers for different distance requirements.
Is this switch suitable for PoE (Power over Ethernet) devices?
No, the Allied Telesis AT-FS750/28PS-10 does not provide Power over Ethernet capabilities. It is a standard Fast Ethernet switch that requires connected devices to have their own power sources. If you need to power devices like IP phones or wireless access points through the network cable, you would need a dedicated PoE switch or injectors.
