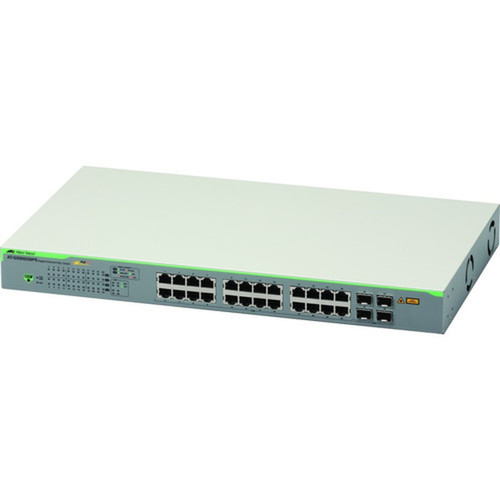

Allied Telesis AT-GS950/28PS-10 24-Port Gigabit WebSmart Switch with 4 SFP Ports and PoE+
Business volume discounts
Technical guidance
Preparation & staging
QC · ON · AB · BC
Product Features
Technical Overview
This switch operates as a Layer 2 device with 24 auto-negotiating 10/100/1000BASE-T ports that automatically detect and configure the optimal speed and duplex settings for each connected device. The four SFP expansion slots are non-shared, providing dedicated fiber connectivity options that support 100Base-FX, 1000Base-SX, and 1000Base-LX standards for backbone or uplink applications.
The switch architecture is optimized for plug-and-play deployment, requiring no management intervention for basic operation. It supports a full suite of Ethernet switching features, including VLAN support, QoS prioritization, and broadcast storm control, which help maintain network stability and performance in mixed-traffic environments.
Relevant factors for this section include Total Number of Network Ports, Uplink Port, Modular, Media Type Supported. When those points are considered together, they give buyers a clearer picture of how the product is equipped, how it fits into deployment, and what kind of day-to-day role it is meant to support.
Key Product Advantages
The AT-GS950/28PS-10 combines high port density with flexible connectivity options, making it an ideal choice for growing networks that require both copper and fiber uplinks. Its WebSmart interface provides an intuitive setup for basic configuration tasks without the complexity of full managed switches.
PoE+ Ready
Delivers up to 30W per port to power connected devices, reducing the need for separate power adapters and simplifying cable management.
- IEEE 802.3at compliant
- Total PoE budget: 370W
- Auto-detection of PD devices
Flexible Deployment Options
Designed for multiple installation scenarios with included rack-mount brackets, rubber feet for desktop use, and wall-mount capability.
- 1U rack height
- Tool-less installation
- Front-to-back airflow
Deployment / Use Cases
This switch excels in environments where reliable, high-speed connectivity is needed without dedicated IT staff. Its combination of 24 Gigabit ports and four SFP slots makes it suitable for connecting workstations, printers, servers, and network storage while providing fiber uplinks to core switches or routers.
Common deployment scenarios include small office networks, retail point-of-sale systems, classroom or training lab environments, and surveillance system backbones. The PoE+ capability makes it particularly useful for powering wireless access points in distributed office layouts or VoIP phone systems in call center applications.
Office Network Expansion
Connect up to 24 workstations and peripherals with Gigabit speeds while using SFP ports for fiber uplinks to server rooms or between buildings.
Surveillance System Backbone
Power IP cameras via PoE+ while maintaining high-bandwidth video streaming capabilities through the Gigabit ports and fiber uplinks.
Physical Profile
The switch features a compact 1U form factor measuring 1.73" (44 mm) in height, 17.72" (450 mm) in width, and 9.84" (250 mm) in depth, making it suitable for standard 19-inch rack installations. Its steel construction ensures durability in various environments, while the fanless design provides silent operation ideal for office settings.
Front-panel status LEDs provide at-a-glance monitoring of port activity, link status, and PoE power delivery. The switch supports both front-to-back and side-to-side airflow configurations, with optional fan modules available for high-temperature environments.
- Width
- 17.72" (450 mm)
- Depth
- 9.84" (250 mm)
- Height
- 1.73" (44 mm)
- Weight
- 7.94 lb (3600 g)
What's in the Box
The switch comes complete with all necessary components for immediate deployment in various installation scenarios.
Highlights
- 24 Gigabit Ethernet ports for high-speed wired connectivity
- 4 dedicated SFP slots for fiber or copper uplink expansion
- PoE+ support delivers up to 30W per port to powered devices
- Layer 2 switching with IGMP snooping and spanning tree
- WebSmart interface for basic configuration without CLI complexity
- Rack-mountable 1U form factor with wall and desktop options
- Supports 1000Base-T, 100Base-FX, 1000Base-SX, and 1000Base-LX
- Fanless design for silent operation in office environments
- Auto-MDI/MDIX eliminates crossover cable requirements
- Built-in power supply with stable voltage delivery
Specifications
| Specifications | |
|---|---|
| Manufacturer | Allied Telesis, Inc |
| Manufacturer Part Number | AT-GS950/28PS-10 |
| Brand Name | Allied Telesis |
| Product Line | WebSmart |
| Product Series | GS950 |
| Product Model | AT-GS950/28PS |
| Product Name | 24-port 10/100/1000T WebSmart Switch with 4 SFP Ports and PoE+ |
| Product Type | Ethernet Switch |
| Interfaces/Ports | |
| Total Number of Network Ports | 24 |
| Uplink Port | No |
| Modular | Yes |
| Stack Port | No |
| Port/Expansion Slot Details | 24 x Gigabit Ethernet Network,4 x Gigabit Ethernet Expansion Slot |
| Media & Performance | |
| Media Type Supported | Twisted Pair,Optical Fiber |
| Ethernet Technology | Gigabit Ethernet |
| Network Technology | 1000Base-T,100Base-FX,1000Base-SX,1000Base-LX |
| I/O Expansions | |
| Total Number of Expansion Slots | 4.0 |
| Expansion Slot Type | SFP |
| Shared SFP Slot | No |
| Number of SFP Slots | 4 |
| Network & Communication | |
| Layer Supported | 2 |
| Management & Protocols | |
| Manageable | No |
| Power Description | |
| Power Source | Power Supply |
| Redundant Power Supply Supported | No |
| Physical Characteristics | |
| Form Factor | Rack-mountable,Wall Mountable,Desktop |
| Height | 1.73" (44 mm) |
| Width | 17.72" (450 mm) |
| Depth | 9.84" (250 mm) |
| Weight (Approximate) | 7.94 lb (3600 g) |
| Miscellaneous | |
| Package Contents | 24-port 10/100/1000T WebSmart Switch with 4 SFP Ports and PoE+ US Power Cord Rubber feet Rack-mount brackets and screws |
| Environmentally Friendly | Yes |
| Country of Origin | Taiwan |
FAQ
How many devices can this switch power with PoE+?
The AT-GS950/28PS-10 has a total PoE budget of 370W, which can power multiple PoE+ devices simultaneously. Each port can deliver up to 30W following the IEEE 802.3at standard. The exact number of powered devices depends on their individual power requirements, but typically you can power 12-24 devices such as VoIP phones, wireless access points, or security cameras while maintaining full Gigabit connectivity.
Can I use this switch for fiber connections between buildings?
Yes, the four SFP slots support various fiber standards including 100Base-FX for Fast Ethernet over fiber, 1000Base-SX for multimode fiber up to 550 meters, and 1000Base-LX for single-mode fiber up to 10 kilometers. You would need to install compatible SFP transceivers (sold separately) to convert the electrical signals to optical signals for building-to-building connections or long-distance uplinks.
Is this switch manageable for VLAN configuration?
This is a WebSmart switch, which provides basic management capabilities through a web interface without requiring command-line expertise. You can configure VLANs, port mirroring, QoS settings, and other Layer 2 features through the intuitive web interface. However, it does not support advanced management features like SNMP, CLI access, or enterprise-grade monitoring found in fully managed switches.
What is the difference between WebSmart and unmanaged switches?
WebSmart switches offer basic configuration capabilities through a web browser interface, allowing you to set up VLANs, port configurations, and basic QoS without command-line knowledge. Unmanaged switches typically have no configuration options at all. The AT-GS950/28PS-10 provides more control than pure unmanaged switches while remaining simpler to configure than fully managed switches, making it ideal for small businesses without dedicated networking staff.
Can this switch be mounted in a standard server rack?
Yes, the switch is designed for standard 19-inch rack mounting with included brackets and screws. Its 1U height (1.73 inches) fits perfectly in most server racks and network cabinets. The compact dimensions of 17.72" wide by 9.84" deep ensure compatibility with most rack environments while leaving sufficient space for cable management and airflow.
What types of network cables are supported by this switch?
The 24 copper ports support standard twisted-pair Ethernet cables (Cat5e, Cat6, or Cat6a) for 10/100/1000BASE-T connections. The four SFP slots support fiber optic cables when used with appropriate SFP transceivers. The switch features auto-MDI/MDIX on all copper ports, eliminating the need for crossover cables and allowing you to use standard straight-through cables for all connections.
