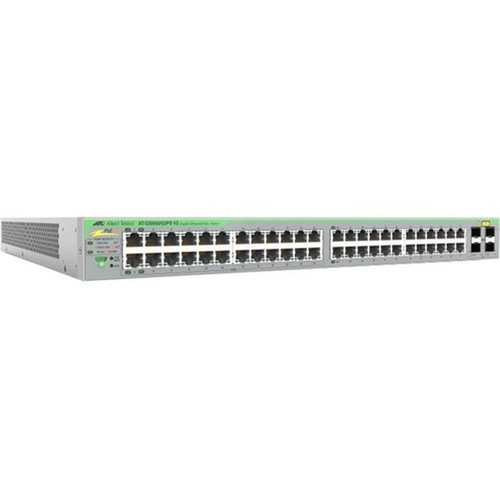

Allied Telesis AT-GS950/52PS V2-10 GS950/52PS V2 Ethernet Switch - 48 Port Gigabit with 24 PoE+ & 24 PoE - 4 SFP Slots - Layer 2 Managed - 370W PoE
Business volume discounts
Technical guidance
Preparation & staging
QC · ON · AB · BC
Product Features
Technical Overview
This switch operates as a full-featured Layer 2 managed device with comprehensive protocol support. The 48-port configuration is split between 24 PoE+ ports delivering up to 30W per port and 24 standard PoE ports, all supporting 10/100/1000Base-T auto-negotiation. The 370W total PoE budget provides ample power for connected devices while the switch itself consumes only 150W under typical operation.
The switching fabric supports jumbo frames up to 10K bytes for efficient data transfer, while IEEE 802.3ad Link Aggregation with LACP enables port trunking for increased bandwidth and redundancy. Four SFP slots accept mini-GBIC transceivers for 100/1000Base-X fiber connections, providing essential uplink flexibility.
Relevant factors for this section include Total Number of Network Ports, Network (RJ-45), Modular, Media Type Supported. When those points are considered together, they give buyers a clearer picture of how the product is equipped, how it fits into deployment, and what kind of day-to-day role it is meant to support.
Key Product Advantages
The GS950/52PS V2 stands out with its balanced port configuration and enterprise-grade management capabilities. The split between PoE+ and standard PoE ports allows for optimized power allocation, while the substantial 370W budget ensures reliable operation of power-hungry devices across the entire switch.
Comprehensive Management Suite
Multiple access methods including SSH, Telnet, web interface, and CLI provide flexibility for different administrative preferences. SNMP v1/v2c/v3 support enables integration with network monitoring systems, while LLDP automates neighbor discovery.
- Web-based configuration with statistics charts
- Firmware upgrades via FTP/HTTP
- Configuration backup/restore capabilities
- Syslog support for event logging
Advanced Traffic Control
Sophisticated quality of service and security features ensure optimal network performance. IEEE 802.1p tagging with four priority queues per port enables traffic prioritization, while ingress/egress rate limiting and broadcast storm control prevent network congestion.
- Port-based VLANs with 802.1Q tagging
- IEEE 802.1x authentication with RADIUS integration
- Port mirroring for traffic analysis
- Destination MAC filtering
Deployment / Use Cases
This switch excels in environments requiring both high-density connectivity and Power over Ethernet delivery. The 48-port design with substantial PoE budget makes it particularly suitable for office deployments where multiple IP phones, wireless access points, and security cameras need to be powered and connected from a single switching point.
The rack-mountable form factor and compact 1U height allow for efficient data center or wiring closet installation. Educational institutions can leverage this switch for classroom technology deployments, while retail environments benefit from its ability to power point-of-sale systems, digital signage, and surveillance equipment simultaneously.
Medium Business Core Switching
Serve as the primary switching layer for offices with 30-50 workstations, providing both data connectivity and device power through a single infrastructure component.
Unified Communications Platform
Support VoIP deployments by powering IP phones while maintaining quality of service for voice traffic and providing fiber uplinks to connect to wider network infrastructure.
Physical Profile

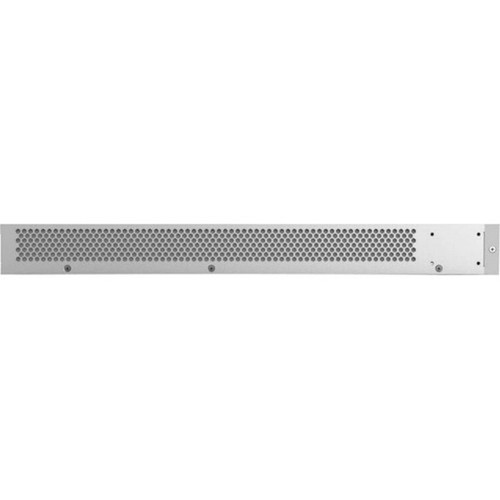

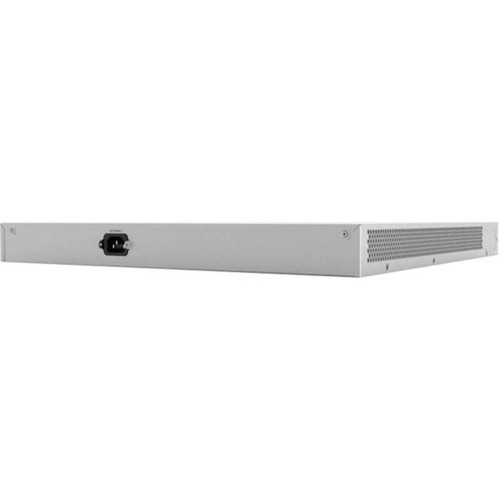

The switch features a standard 19-inch rack-mountable design with a height of 1.73 inches (1U), making it compatible with standard rack enclosures. The desktop form factor option provides flexibility for smaller installations or temporary deployments. The compact dimensions of 17.32 inches wide by 16.97 inches deep ensure efficient use of rack space while allowing adequate airflow for cooling.
The physical profile is practical for deployment planning because the dimensions and weight are clearly defined: 1.73" (44 mm), 17.32" (440 mm), 16.97" (431 mm), 13.45 lb (6100 g). This helps confirm rack, shelf, desk, or cabinet fit before installation.
- Width
- 17.32" (440 mm)
- Depth
- 16.97" (431 mm)
- Height
- 1.73" (44 mm)
- Weight
- 13.45 lb (6100 g)
What's in the Box
The package includes all necessary components for immediate deployment in either rack-mounted or desktop configurations.
Highlights
- 48 Gigabit Ethernet ports with 24 PoE+ and 24 PoE
- 370W total PoE budget for powering connected devices
- 4 SFP slots for fiber uplink expansion
- Layer 2 managed switching with comprehensive protocols
- Rack-mountable 1U form factor with desktop option
- IEEE 802.3ad Link Aggregation with LACP support
- Advanced QoS with four priority queues per port
- Multiple management interfaces: SSH, Telnet, web, CLI
- IEEE 802.1x authentication with RADIUS integration
- RoHS and China RoHS environmental compliance
Specifications
| Specifications | |
|---|---|
| Manufacturer | Allied Telesis, Inc |
| Manufacturer Part Number | AT-GS950/52PS V2-10 |
| Brand Name | Allied Telesis |
| Product Series | GS950 V2 |
| Product Model | GS950/52PS V2 |
| Product Name | GS950/52PS V2 Ethernet Switch |
| Product Type | Ethernet Switch |
| Interfaces/Ports | |
| Total Number of Network Ports | 48 |
| Network (RJ-45) | Yes |
| Modular | Yes |
| Port/Expansion Slot Details | 24 x Gigabit Ethernet PoE+,4 x Gigabit Ethernet Expansion Slot,24 x Gigabit Ethernet PoE |
| Media & Performance | |
| Media Type Supported | Twisted Pair,Optical Fiber |
| Ethernet Technology | Gigabit Ethernet |
| Network Technology | 10/100/1000Base-T,100/1000Base-X |
| I/O Expansions | |
| Total Number of Expansion Slots | 4.0 |
| Expansion Slot Type | SFP (mini-GBIC) |
| Number of SFP Slots | 4 |
| Network & Communication | |
| Layer Supported | 2 |
| Networking Standards | IEEE 802.3at,IEEE 802.3af,IEEE 802.1Q,IEEE 802.1p,IEEE 802.1D,IEEE 802.1w,IEEE 802.1s,IEEE 802.3ad,IEEE 802.1x,IEEE 802.3x,IEEE 802.3,IEEE 802.3i,IEEE 802.3u,IEEE 802.3z,IEEE 802.3ab,IEEE 802.3az |
| Management & Protocols | |
| Manageable | Yes |
| Power Description | |
| PoE (RJ-45) Port | Yes |
| PoE Budget | 370 W |
| Power Source | Power Supply |
| Power Consumption | 150 W |
| Physical Characteristics | |
| Form Factor | Rack-mountable,Desktop |
| Height | 1.73" (44 mm) |
| Width | 17.32" (440 mm) |
| Depth | 16.97" (431 mm) |
| Weight (Approximate) | 13.45 lb (6100 g) |
| Miscellaneous | |
| Package Contents | GS950/52PS V2 Ethernet Switch Rack-mount Brackets and Screws US Power Cord Rubber Feet |
| Environmentally Friendly | Yes |
| Environmental Compliance | Restriction of Hazardous Substances (RoHS),China Restriction of Hazardous Substances (China RoHS) |
User Manual
FAQ
How many devices can this switch power with PoE?
The switch features 48 Gigabit Ethernet ports with Power over Ethernet capability, specifically configured as 24 PoE+ ports and 24 standard PoE ports. With a total PoE budget of 370W, it can power numerous devices such as IP phones, wireless access points, and security cameras simultaneously, with the PoE+ ports capable of delivering up to 30W each for more power-hungry devices.
What types of uplink connections does this switch support?
This switch includes four SFP (mini-GBIC) expansion slots that support 100/1000Base-X fiber optic connections. These slots accept industry-standard SFP transceivers, allowing for flexible uplink configurations to connect to core switches or extend network segments over fiber for longer distance runs or higher bandwidth requirements.
Is this switch manageable, and what management options are available?
Yes, this is a fully manageable Layer 2 switch offering multiple administration methods. Network administrators can configure and monitor the switch through SSH, Telnet, a web-based graphical interface, or command-line interface (CLI). The switch also supports SNMP v1/v2c/v3 for integration with network management systems and includes features like LLDP for automatic neighbor discovery.
What quality of service features does this switch provide?
The switch implements IEEE 802.1p tagging for traffic prioritization with four priority queues per port. This allows critical traffic like voice or video to receive preferential treatment over less time-sensitive data. Additional traffic management features include ingress and egress rate limiting, broadcast storm control, and support for jumbo frames up to 10K bytes for improved data transfer efficiency.
Can this switch be mounted in a standard equipment rack?
Yes, the switch is designed for rack mounting with a standard 19-inch width and 1U (1.73-inch) height profile. The package includes all necessary rack-mount brackets and screws for installation. For environments without rack infrastructure, the switch can also be deployed as a desktop unit using the included rubber feet.
What security features are included with this managed switch?
Security features include IEEE 802.1x port-based and MAC-based authentication with support for local authentication servers and RADIUS integration. The switch also supports dynamic VLAN assignment based on authentication results, destination MAC filtering, access control lists with 188 entries, and password-based access control with configurable user privilege levels.
