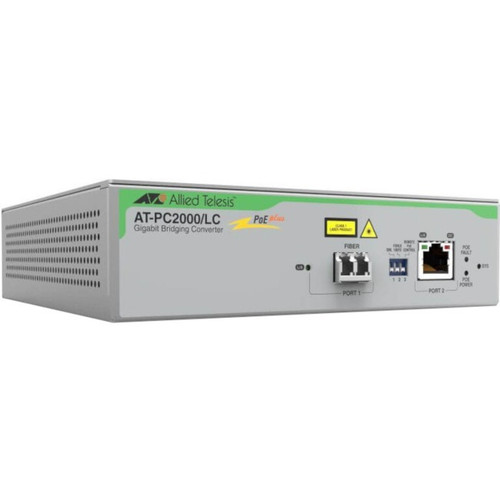

Allied Telesis AT-PC2000/LC-960 PoE+ to Fiber Media Converter - 1x PoE+ RJ-45 & 1x LC Multi-mode 850 nm
Business volume discounts
Technical guidance
Preparation & staging
QC · ON · AB · BC
Product Features
Technical Overview
This media converter operates at 850 nm wavelength on multi-mode fiber, compatible with 50/125 µm and 62.5/125 µm cable specifications. The PoE+ RJ-45 port delivers IEEE 802.3at-compliant power over Ethernet, supporting devices like wireless access points, IP cameras, and VoIP phones while transmitting data.
Network conversion occurs at line rate with no performance degradation, supporting auto-negotiation and auto-MDI/MDIX on the copper side. The fiber interface uses LC connectors for reliable optical coupling, suitable for distances up to 550 meters on OM2 fiber.
This section brings together practical product details such as Total Number of Ports, Network (RJ-45), Number of PoE+ (RJ-45) Ports, Media Type Supported, so buyers can judge configuration, deployment fit, and day-to-day suitability with less guesswork.
Key Product Advantages
This converter extends network infrastructure efficiently by combining PoE+ delivery with fiber conversion in a single device. It eliminates the need for separate power injectors and media converters, simplifying cable runs and reducing equipment clutter.
Dual Media Support
Converts between optical fiber and twisted pair cabling, enabling network expansion across different building materials and longer distances where copper limitations apply.
- Minimizes signal loss over fiber runs
- Supports both 50/125 µm and 62.5/125 µm fiber
PoE+ Integration
The integrated PoE+ port powers compliant devices directly, reducing installation complexity and electrical outlet requirements at remote locations.
- Delivers up to 30W per port
- Powers IP cameras, wireless APs, and VoIP phones
Flexible Deployment
Compact form factor supports standalone placement on desks or shelves, plus wall mounting for space-constrained environments like wiring closets and equipment racks.
- Includes mounting hardware
- Small footprint conserves space
Deployment / Use Cases
Deploy this media converter wherever network segments transition between copper and fiber, particularly when remote devices require both data connectivity and power. Typical installations include extending networks between buildings, connecting floor switches across different cabling types, and powering edge devices in distributed environments.
In surveillance systems, place the converter near camera clusters to deliver PoE+ over copper while backhauling video feeds over fiber to the network core. For wireless networks, use it to power access points in hard-to-wire areas while maintaining high-speed uplinks via fiber. The TAA compliance makes it suitable for government and educational procurement requiring Trade Agreements Act adherence.
Building-to-Building Links
Connect networks across separate structures using fiber for lightning protection and distance, with PoE+ for powering devices at the remote end.
Industrial & Outdoor Installations
Deploy in environments where fiber's immunity to EMI and longer reach advantages over copper, while powering sensors or cameras locally.
Physical Profile
The converter measures 6.10 inches wide by 5.87 inches deep by 1.57 inches high (155 × 149 × 40 mm), with a weight of 1.65 pounds (748 g). Its low-profile design fits easily on shelves or mounts vertically on walls using included hardware. The housing provides adequate ventilation for continuous operation without active cooling.
- Width
- 6.10" (155 mm)
- Depth
- 5.87" (149 mm)
- Height
- 1.57" (40 mm)
- Weight
- 1.65 lb (748 g)
- Length
- 850 nm
What's in the Box
The package includes the media converter and a multi-region AC power supply compatible with US, UK, Australian, and EU outlets.
Highlights
- Converts Gigabit Ethernet between twisted pair and multi-mode fiber
- Includes one PoE+ RJ-45 port for powering connected devices
- Supports 850 nm wavelength on 50/125 µm and 62.5/125 µm fiber
- Compact standalone design with wall-mount capability
- TAA compliant for government and educational procurement
- Multi-region power supply included for global deployment
- RoHS, WEEE, and REACH environmental compliance
- Auto-negotiation and auto-MDI/MDIX on copper port
Specifications
| Specifications | |
|---|---|
| Manufacturer | Allied Telesis, Inc |
| Manufacturer Part Number | AT-PC2000/LC-960 |
| Brand Name | Allied Telesis |
| Product Series | PC2000 |
| Product Model | PC2000/LC |
| Product Name | PoE+ to Fiber Switching Media Converter |
| Product Type | Transceiver/Media Converter |
| Interfaces/Ports | |
| Total Number of Ports | 2 |
| Network (RJ-45) | Yes |
| Number of PoE+ (RJ-45) Ports | 1 |
| Number of LC Ports | 1 |
| Media & Performance | |
| Media Type Supported | Optical Fiber,Twisted Pair |
| Fiber Mode Supported | Multi-mode |
| Fiber Optic Cable Wavelength | 850 nm |
| Fiber Optic Cable Core/Cladding Specification | 50/125 µm,62.5/125 µm |
| Network & Communication | |
| Ethernet Technology | Gigabit Ethernet |
| Network Technology | 10/100/1000Base-T,1000Base-SX |
| Power Description | |
| Power Source | Power Supply |
| Physical Characteristics | |
| Form Factor | Standalone,Wall Mountable |
| Height | 1.57" (40 mm) |
| Width | 6.10" (155 mm) |
| Depth | 5.87" (149 mm) |
| Weight (Approximate) | 1.65 lb (748 g) |
| Miscellaneous | |
| Package Contents | PoE+ to Fiber Switching Media Converter AC Power Supply, Multi-region (US,UK, AU, EU) |
| Environmentally Friendly | Yes |
| Environmental Compliance | Restriction of Hazardous Substances (RoHS),Waste Electrical and Electronic Equipment Directive (WEEE),Registration, Evaluation, Authorization and Restriction of Chemicals (REACH) |
| Country of Origin | Singapore |
| TAA Compliant | Yes |
FAQ
What types of fiber cable does this media converter support?
The AT-PC2000/LC-960 supports multi-mode fiber with LC connectors, compatible with both 50/125 µm and 62.5/125 µm core/cladding specifications. It operates at 850 nm wavelength, suitable for OM1, OM2, and OM3 fiber types commonly used in LAN and campus backbone applications.
How much power does the PoE+ port deliver?
The PoE+ port complies with IEEE 802.3at standards, delivering up to 30 watts of power. This sufficient for powering devices like IP cameras, wireless access points, VoIP phones, and small network switches that require PoE+ for operation.
What is the maximum distance supported over fiber?
Using 850 nm multi-mode fiber, this converter supports distances up to 550 meters on OM2 cable. Actual distance depends on fiber quality and attenuation; consult cable specifications for precise reach in your installation environment.
Can this converter be mounted on a wall or rack?
Yes, the converter supports both standalone placement and wall mounting. Its compact form factor includes mounting points for vertical installation in wiring closets, equipment rooms, or other space-constrained locations where desk space is limited.
What network speeds does the converter support?
The converter supports Gigabit Ethernet (1000 Mbps) on both copper and fiber interfaces. The copper side auto-negotiates between 10, 100, and 1000 Mbps, while the fiber side operates at 1000Base-SX for consistent high-speed performance across the media conversion.
Is this product compliant with government procurement requirements?
Yes, the AT-PC2000/LC-960 is TAA compliant, meeting Trade Agreements Act requirements for U.S. government purchasing. It also complies with RoHS, WEEE, and REACH environmental regulations, and is manufactured in Singapore for global distribution.
