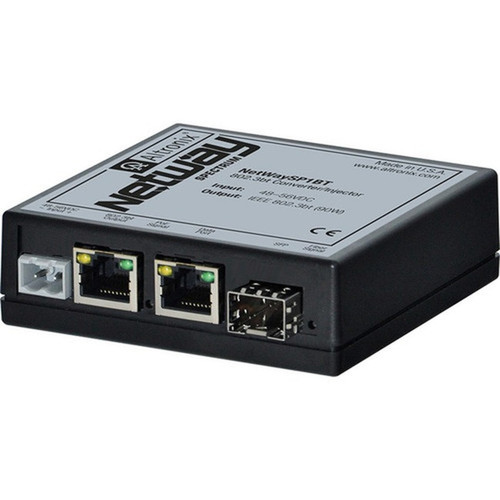

Altronix NETWAYSP1BT 802. 3bt Media Converter/Injector - 1x PoE Port - Gigabit Ethernet - Multi/Single-mode Fiber - 0. 10 km
Business volume discounts
Technical guidance
Preparation & staging
QC · ON · AB · BC
Product Features
Technical Overview
The NETWAYSP1BT operates as a transceiver/media converter with two ports: one RJ-45 port for standard Ethernet and one PoE-enabled RJ-45 port that functions as a Power Sourcing Equipment (PSE) port. It supports Gigabit Ethernet speeds up to 1000 Mbps over twisted pair and fiber, ensuring high-performance data transfer.
Fiber compatibility includes both multi-mode and single-mode types, with a maximum supported distance of 0.10 km (0.06 miles). The integrated SFP slot allows for hot-swappable modules, enabling easy upgrades or changes to fiber types without replacing the entire unit.
This section brings together practical product details such as Total Number of Ports, Network (RJ-45), Number of PoE (RJ-45) Ports, Media Type Supported, so buyers can judge configuration, deployment fit, and day-to-day suitability with less guesswork.
Key Product Advantages
This media converter simplifies network expansion by integrating PoE and fiber conversion in one device. It reduces cable clutter and power requirements, making it ideal for environments where running new copper cables is impractical.
PoE Integration
The built-in PoE port delivers power to devices like IP cameras or wireless access points, eliminating the need for separate power injectors or outlets near remote equipment.
- PSE port type
- Supports 802.3bt standard
Fiber Flexibility
Support for both multi-mode and single-mode fiber allows deployment in short-range or long-distance scenarios, with an SFP slot for customizable module selection.
- Multi-mode and single-mode
- Hot-swappable SFP modules
Deployment / Use Cases
The Altronix NETWAYSP1BT is suited for extending network connections beyond the limits of standard copper cabling. It is commonly used in industrial settings, campus networks, or surveillance systems where fiber optic backbone connections are required.
Typical applications include connecting remote buildings with fiber runs, integrating PoE devices in hard-to-reach locations, and upgrading existing copper networks to fiber for better performance and distance. Its small form factor makes it easy to install in tight spaces like network closets or equipment racks.
Network Extension
Extend Gigabit Ethernet networks up to 0.10 km using fiber optic cables, ideal for connecting separate floors or buildings without signal degradation.
PoE Device Support
Power and connect PoE devices such as IP phones, security cameras, or wireless access points over fiber, simplifying deployments in areas without local power.
Physical Profile
The converter has a compact design measuring 1" (25.40 mm) in height, 3.38" (85.73 mm) in width, and 3.80" (96.52 mm) in depth, with an approximate weight of 4 oz (113.40 g). Its small footprint allows for easy mounting in racks or on desktops, and the durable construction ensures reliable operation in various environments.
- Width
- 3.38" (85.73 mm)
- Depth
- 3.80" (96.52 mm)
- Height
- 1" (25.40 mm)
- Weight
- 4 oz (113.40 g)
Highlights
- Converts Gigabit Ethernet between twisted pair and fiber optic cables
- Includes 1 PoE port (PSE) for powering connected devices
- Supports both multi-mode and single-mode fiber up to 0.10 km
- Features an SFP slot for customizable fiber module compatibility
- Compact design with dimensions of 1" H x 3.38" W x 3.80" D
- Backed by a lifetime limited warranty for long-term reliability
- Ideal for extending network reach in industrial or campus settings
- Simplifies installations by reducing separate power requirements
Specifications
| Specifications | |
|---|---|
| Manufacturer | Altronix Corporation |
| Manufacturer Part Number | NETWAYSP1BT |
| Brand Name | Altronix |
| Product Model | NETWAYSP1BT |
| Product Name | 802.3bt Media Converter/Injector |
| Product Type | Transceiver/Media Converter |
| Interfaces/Ports | |
| Total Number of Ports | 2 |
| Network (RJ-45) | Yes |
| Number of PoE (RJ-45) Ports | 1 |
| PoE Port Type | PSE |
| Media & Performance | |
| Media Type Supported | Optical Fiber,Twisted Pair |
| Fiber Mode Supported | Multi-mode,Single-mode |
| Maximum Distance Supported | 0.10 km (0.06 Mile) |
| I/O Expansions | |
| Total Number of Expansion Slots | 1 |
| Expansion Slot Type | SFP (mini-GBIC) |
| Number of SFP Slots | 1 |
| Network & Communication | |
| Ethernet Technology | Gigabit Ethernet |
| Network Technology | 10/100/1000Base-T,1000Base-X/SX/LX |
| Power Description | |
| Power Source | DC |
| Physical Characteristics | |
| Height | 1" (25.40 mm) |
| Width | 3.38" (85.73 mm) |
| Depth | 3.80" (96.52 mm) |
| Weight (Approximate) | 4 oz (113.40 g) |
| Miscellaneous | |
| Country of Origin | United States |
| Warranty | |
| Limited Warranty | Lifetime |
FAQ
What types of fiber does this media converter support?
The Altronix NETWAYSP1BT supports both multi-mode and single-mode fiber optic cables. This flexibility allows it to be used in various distance scenarios, with multi-mode typically for shorter runs and single-mode for longer distances up to 0.10 km.
How many PoE ports are included, and what is the PoE standard?
This converter includes one PoE port that operates as a Power Sourcing Equipment (PSE) port. It follows the 802.3bt standard, providing power to connected devices like IP cameras or access points, which helps streamline installations by eliminating the need for additional power sources.
What is the maximum data transfer rate supported?
The device supports Gigabit Ethernet, offering data transfer rates up to 1000 Mbps. It is compatible with 10/100/1000Base-T over twisted pair and 1000Base-X/SX/LX over fiber, ensuring high-speed connectivity for network extensions.
Can I customize the fiber interface on this converter?
Yes, the NETWAYSP1BT features one SFP (mini-GBIC) slot that allows for hot-swappable fiber modules. You can insert compatible SFP transceivers to match specific connector types, wavelengths, or distance requirements, making it adaptable to different network setups.
What is the warranty coverage for this product?
Altronix provides a lifetime limited warranty for the NETWAYSP1BT media converter. This warranty covers defects in materials and workmanship, offering long-term assurance for reliability in professional networking environments.
How do I power this media converter?
The converter is powered by a DC power source. It does not include an internal power supply, so you will need to connect it to an external DC adapter, which is typically sold separately, to operate the device and provide PoE output to connected equipment.
