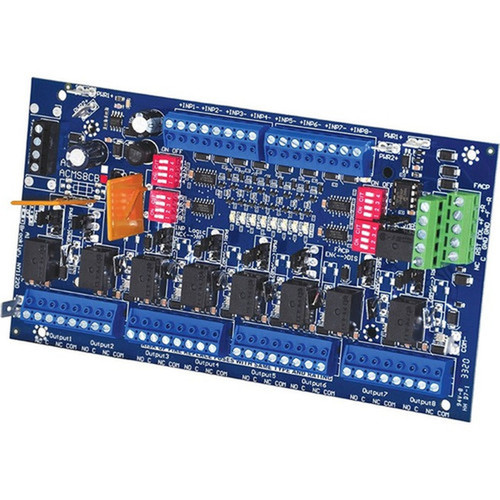

Altronix Dual Input Access Power Controller 8 PTC Protected Outputs Board - LED Indicator - Access Control (ACMS8CB)

Device Supported: Rack Mount Enclosure,Wall Mount Enclosure,Electric Strike,Access Control Device,Magnetic Lock,Magnetic Door Holder

Features: LED Indicator

Height: 1.25" (31.75 mm)

Width: 4.13" (104.78 mm)

Length: 7.65" (194.31 mm)

Weight (Approximate): 317.5 g

Package Contents:

• Dual Input Access Power Controller 8 PTC Protected Outputs Board
• Mounting Hardware

Additional Information:

• Input
• Two (2) independent low voltage inputs.
• 1) Input: 12 or 24VDC from eFlow series Altronix Power supply.
• 2) Input: 12 or 24 VDC from eFlow series Altronix power supply or either 5 or 12 VDC from VR6 Regulator.
• Voltage Range
• 16A total input.
• Main PTC Rating 9A.
• Current Consumption:
• 0.6A @ 12V, 0.3A @ 24V with all relays energized.

• Trigger Inputs
  • Eight (8) individually controlled trigger inputs:
  • a) Normally open (NO) inputs.
  • b) Normally closed (NC) inputs.
  • c) Open collector sink inputs.
  • d) Wet Input (5VDC - 24VDC) with 10K resistor.
  • e) Any combination of the above.
• Outputs
• Fuse protected outputs rated @ 2.5A per output, non power-limited. Total output 20A max.
• Do not exceed the individual power supply ratings.
• Eight (8) selectable 5VDC - 24VDC independently controlled outputs or eight (8) indepently controlled Form "C" relay outputs:
• a) Fail-Safe and/or Fail-Secure power outputs.
• b) Form "C" Relays. 28VAC or VDC @ 2.5A Rated.
• c) Auxiliary power outputs (unswitched).
• d) Any combination of the above.
• Any of the eight (8) fuse protected power outputs are selectable to follow power Input 1 or Input 2.
• Individual outputs may be set to OFF position for servicing.
• Output Ratings
• PTCs are rated 2A each.
• Total output current is determined by the power supply(ies), not to exceed a maximum of 10A for each input.
• Fire Alarm Disconnect
• Fire Alarm disconnect (latching or non-latching) is individually selectable for any or all of the eight (8) outputs.
• • Fire Alarm disconnect input options:
  • a) Normally open [NO] or normally closed [NC] dry contact input. Polarity reversal input from FACP signaling circuit.
• FACP output relay [NC] contact or provides 10k resistance with [EOL JMP] intact.
• LED Indicators
• Red LEDs indicate outputs are triggered.
• Blue LED indicates FACP disconnect is triggered.
• • Individual voltage LEDs
  • Green: 12VDC
  • Red: 24VDC.
• Temperature
• Operating 0ºC to 49ºC (32ºF to 120ºF).
• Storage -20ºC to 70ºC (-4ºF to 158ºF).
• Relative Humidity 93% +/-5%.
• BTU/Hr. (approx.): 4 BTU/Hr.

Application/Usage: Access Control

Country of Origin: United States

Environmentally Friendly: Yes

Environmental Compliance: Restriction of Hazardous Substances (RoHS)

Limited Warranty: Lifetime
