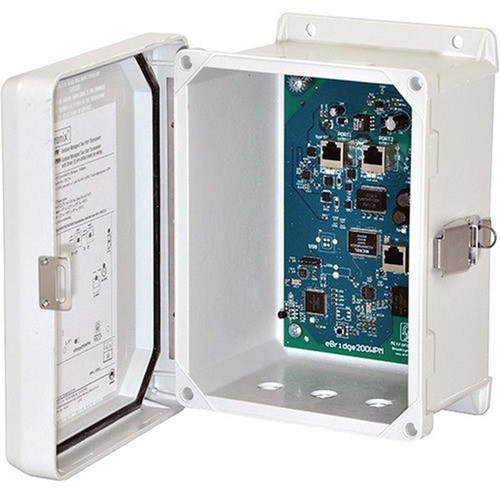

Altronix EBRIDGE200WPMH eBridge Media Converter - 2-Port PoE+ Fast Ethernet (100Base-TX) - Pole Mount
Business volume discounts
Technical guidance
Preparation & staging
QC · ON · AB · BC
Product Features
Technical Overview
This media converter operates on Fast Ethernet standards, delivering up to 100 Mbps data transfer rates over twisted pair cables using 100Base-TX technology. The two RJ-45 ports are both PoE+ capable, providing up to 30 watts per port to connected devices, which streamlines installations by reducing cabling and power source requirements.
The converter supports a maximum distance of 0.5 km (500 meters) on twisted pair, extending network reach beyond typical Ethernet limits without signal degradation. It does not include management ports or advanced monitoring features, focusing instead on straightforward, plug-and-play functionality for core bridging tasks.
This section brings together practical product details such as Total Number of Ports, Network (RJ-45), DVI, Media Type Supported, so buyers can judge configuration, deployment fit, and day-to-day suitability with less guesswork.
Key Product Advantages
The eBridge EBRIDGE200WPMH combines media conversion with integrated PoE+ power delivery in a single, pole-mountable unit. This dual functionality reduces installation complexity and hardware costs, making it an efficient solution for extending networks to powered devices in remote locations.
Integrated PoE+ Support
Both RJ-45 ports deliver PoE+ power, eliminating the need for external injectors and simplifying cabling for devices like cameras or access points.
- Powers up to two PoE+ devices
- Reduces component count
Extended Distance Coverage
Supports twisted pair cabling up to 0.5 km, allowing network expansion beyond standard Ethernet limits without signal loss.
- 0.5 km maximum distance
- Maintains 100 Mbps speed
Rugged Pole-Mount Design
The pole form factor and NEMA-rated glands enable secure, weather-resistant installation in outdoor or industrial settings.
- Easy mounting on poles or structures
- Includes wiring inlets for protection
Deployment / Use Cases
This converter is ideal for scenarios where network extension and device powering are required in challenging environments. Its pole-mount design and extended distance support make it suitable for outdoor deployments, such as connecting security cameras or wireless access points across large areas like parking lots, campuses, or agricultural sites.
In industrial settings, the eBridge can link Ethernet devices across manufacturing floors or warehouses where long cable runs and PoE power are needed. It also serves well in temporary installations or events where quick, reliable network expansion is necessary without complex infrastructure.
Outdoor Security Networks
Deploy to power and connect IP cameras or sensors over long distances, using twisted pair cabling for cost-effective coverage.
Wireless Network Extension
Extend Wi-Fi coverage by powering and linking access points in remote locations, leveraging the 0.5 km range for broad area networks.
Physical Profile
The eBridge converter features a compact pole-mount form factor with dimensions of 9.50 inches in height, 7.32 inches in width, and 4.92 inches in depth (241.30 mm x 185.93 mm x 124.97 mm), weighing approximately 997.9 grams. This design facilitates easy installation on poles, walls, or other structures, with included 5/8" wiring inlets and NEMA-rated glands for environmental protection against dust and moisture.
- Width
- 7.32" (185.93 mm)
- Depth
- 4.92" (124.97 mm)
- Height
- 9.50" (241.30 mm)
- Weight
- 997.9 g
What's in the Box
The package includes the eBridge EBRIDGE200WPMH transceiver/media converter and three 5/8" wiring inlets with NEMA-rated glands, providing all necessary components for secure installation.
Highlights
- Two PoE+ RJ-45 ports for powering connected devices up to 30W each
- Fast Ethernet (100Base-TX) support with 100 Mbps data transfer rates
- Extends network distance up to 0.5 km over twisted pair cabling
- Pole-mount form factor for easy installation in outdoor or industrial settings
- Integrated media converter eliminates need for separate transceivers
- Environmentally friendly construction with lifetime warranty
- Includes NEMA-rated glands for weather-resistant cable entry
- Made in the United States for reliable quality assurance
Specifications
| Specifications | |
|---|---|
| Manufacturer | Altronix Corporation |
| Manufacturer Part Number | EBRIDGE200WPMH |
| Brand Name | Altronix |
| Product Line | eBridge |
| Product Model | EBRIDGE200WPMH |
| Product Name | eBridge EBRIDGE200WPMH Transceiver/Media Converter |
| Product Type | Transceiver/Media Converter |
| Interfaces/Ports | |
| Total Number of Ports | 2 |
| Network (RJ-45) | Yes |
| DVI | No |
| USB | No |
| Management Port | No |
| Number of PoE+ (RJ-45) Ports | 2 |
| Media & Performance | |
| Media Type Supported | Twisted Pair |
| Maximum Distance Supported | 0.50 km |
| Network & Communication | |
| Ethernet Technology | Fast Ethernet |
| Network Technology | 100Base-TX |
| Physical Characteristics | |
| Form Factor | Pole |
| Height | 9.50" (241.30 mm) |
| Width | 7.32" (185.93 mm) |
| Depth | 4.92" (124.97 mm) |
| Weight (Approximate) | 997.9 g |
| Miscellaneous | |
| Package Contents | eBridge EBRIDGE200WPMH Transceiver/Media Converter 3 x 5/8" Wiring Inlets NEMA Rated Glands |
| Environmentally Friendly | Yes |
| Country of Origin | United States |
| Warranty | |
| Limited Warranty | Lifetime |
FAQ
What is the maximum data transfer speed of the Altronix eBridge EBRIDGE200WPMH?
The eBridge EBRIDGE200WPMH supports Fast Ethernet technology, specifically 100Base-TX, which provides a maximum data transfer rate of 100 Mbps over twisted pair cabling. This speed is suitable for applications like IP cameras, basic network extensions, or device connectivity where high-bandwidth tasks are not required.
How many devices can this media converter power with PoE+?
This converter has two RJ-45 ports that both support PoE+ (Power over Ethernet Plus), allowing you to power up to two compatible devices simultaneously. Each port can deliver up to 30 watts, making it ideal for devices such as IP cameras, wireless access points, or VoIP phones that require both data and power over a single cable.
What is the maximum cable distance supported by this converter?
The eBridge EBRIDGE200WPMH supports a maximum distance of 0.5 kilometers (500 meters) over twisted pair cabling. This extended range is useful for network deployments in large areas like campuses, industrial sites, or outdoor environments where standard Ethernet limits would be insufficient.
Can this converter be used outdoors or in harsh environments?
Yes, the pole-mount form factor and included NEMA-rated glands make it suitable for outdoor or industrial use. The design helps protect against environmental factors like dust and moisture, and the rugged construction ensures reliable operation in varied conditions, supported by a lifetime warranty for long-term durability.
Does this media converter require any management software or configuration?
No, the eBridge EBRIDGE200WPMH does not include a management port or require software configuration. It operates as a plug-and-play device, automatically converting signals between Fast Ethernet over twisted pair. This simplicity makes it easy to deploy without technical setup, focusing on straightforward network extension and power delivery.
What type of cables are compatible with this converter?
This converter supports twisted pair cables, such as Cat5e or Cat6, which are commonly used for Ethernet networks. It is designed to work with standard RJ-45 connectors, and the included wiring inlets accommodate cable diameters up to 5/8" for secure, protected connections in installation scenarios.
