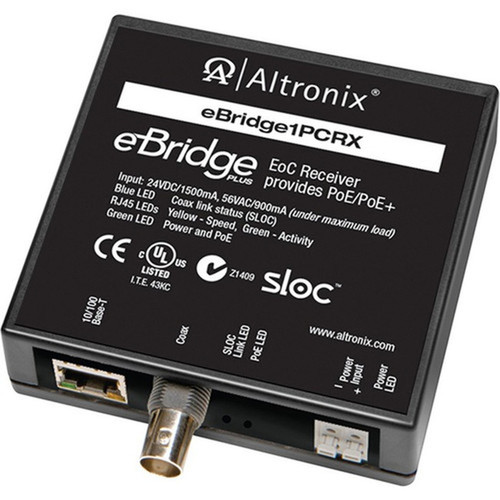

Altronix EBRIDGE1PCRX IP over Coax Receiver - 1x PoE+ Port - Fast Ethernet - Desktop Form Factor
Business volume discounts
Technical guidance
Preparation & staging
QC · ON · AB · BC
Product Features
Technical Overview
The eBridge1PCRX operates as a receiver module that converts signals between twisted pair Ethernet and coaxial media. It features two total ports: one standard network RJ-45 port and one PoE+ RJ-45 port that delivers IEEE 802.3at-compliant power over Ethernet.
This device supports media types including twisted pair and coaxial cable, with a maximum transmission distance of 0.10 km. The Fast Ethernet 10/100Base-TX network technology ensures reliable data transfer for standard IP applications, while the absence of management ports keeps configuration simple and plug-and-play.
This section brings together practical product details such as Total Number of Ports, Network (RJ-45), DVI, Media Type Supported, so buyers can judge configuration, deployment fit, and day-to-day suitability with less guesswork.
Key Product Advantages
The eBridge1PCRX leverages existing coaxial cabling to reduce installation costs and complexity, providing a practical solution for extending network reach in legacy infrastructure environments.
Cost-Effective Infrastructure Reuse
Eliminates the need for new Ethernet cable runs by utilizing installed coaxial cable, saving time and material expenses during network expansions or upgrades.
- Uses existing coax up to 1,500 ft
- No specialized cabling required
Integrated PoE+ Power Delivery
The built-in PoE+ port supplies power to connected devices, simplifying deployments by reducing separate power adapters and wiring.
- IEEE 802.3at compliant
- Powers IP cameras, APs, and other PoE+ devices
Compact and Deployable Design
With a desktop form factor and dimensions under 4.5 inches wide, this receiver fits easily on shelves, desks, or in enclosures without occupying significant space.
- Lightweight at 144.2 g
- Low-profile height of 0.39 inches
Deployment / Use Cases
The Altronix eBridge1PCRX is ideal for scenarios where extending Ethernet and PoE over distance is required, but pulling new cable is impractical or costly. Its conversion capabilities make it a versatile tool for modernizing legacy coaxial systems.
Common applications include surveillance system expansions in buildings with existing coax, retrofitting older facilities with IP-based access control or lighting, and providing network connectivity in industrial settings where coaxial cable is already deployed. The receiver's plug-and-play operation ensures quick integration without complex configuration.
Surveillance and Security Upgrades
Extend IP camera networks over coaxial cable runs in parking lots, warehouses, or multi-building campuses, using the PoE+ port to power cameras directly.
Legacy Infrastructure Modernization
Upgrade analog video or data systems to IP without replacing coaxial backbone wiring, enabling new digital services while preserving existing investments.
Physical Profile
The eBridge1PCRX features a compact desktop form factor with dimensions of 4.38 inches wide, 3.50 inches deep, and 0.39 inches high. Its slim profile and lightweight construction at 144.2 grams allow for flexible placement on flat surfaces or within equipment racks using optional mounting accessories. The design prioritizes space efficiency while maintaining robust connectivity for continuous operation in various environments.
- Width
- 4.38" (111.13 mm)
- Depth
- 3.50" (88.90 mm)
- Height
- 0.39" (10 mm)
- Weight
- 144.2 g
Highlights
- Converts Ethernet and PoE+ signals over coaxial cable up to 0.10 km (1,500 ft).
- Includes one PoE+ RJ-45 port for powering compatible devices like IP cameras.
- Supports Fast Ethernet 10/100Base-TX network technology.
- Compact desktop form factor with dimensions of 4.38" W × 3.50" D × 0.39" H.
- Lightweight design at 144.2 grams for easy deployment.
- UL and cUL listed, CE approved for safety and compliance.
- Plug-and-play operation with no management port required.
- Manufactured in the United States.
Specifications
| Specifications | |
|---|---|
| Manufacturer | Altronix Corporation |
| Manufacturer Part Number | EBRIDGE1PCRX |
| Brand Name | Altronix |
| Product Line | eBridge |
| Product Model | eBridge1PCRX |
| Product Name | eBridge1PCRX - IP over Coax Receiver |
| Packaged Quantity | 1 |
| Product Type | Transceiver/Media Converter |
| Interfaces/Ports | |
| Total Number of Ports | 2 |
| Network (RJ-45) | Yes |
| DVI | No |
| USB | No |
| Management Port | No |
| Number of PoE+ (RJ-45) Ports | 1 |
| Media & Performance | |
| Media Type Supported | Twisted Pair,Coaxial |
| Maximum Distance Supported | 0.10 km |
| Network & Communication | |
| Ethernet Technology | Fast Ethernet |
| Network Technology | 10/100Base-TX |
| Physical Characteristics | |
| Form Factor | Desktop |
| Height | 0.39" (10 mm) |
| Width | 4.38" (111.13 mm) |
| Depth | 3.50" (88.90 mm) |
| Weight (Approximate) | 144.2 g |
| Miscellaneous | |
| Country of Origin | United States |
FAQ
What does the Altronix eBridge1PCRX IP over Coax Receiver do?
The eBridge1PCRX converts Ethernet and PoE+ signals to transmit over existing coaxial cable, extending network connectivity up to 0.10 km (1,500 ft). It allows IP video, data, and power to be carried over coax, eliminating the need for new Ethernet cabling in legacy infrastructure.
How many PoE+ ports does this receiver have, and what can they power?
This receiver has one PoE+ RJ-45 port that delivers IEEE 802.3at-compliant power over Ethernet. It can power compatible devices such as IP cameras, wireless access points, VoIP phones, or other PoE+ equipment, simplifying installations by reducing separate power supplies.
What is the maximum distance supported for signal transmission?
The eBridge1PCRX supports a maximum transmission distance of 0.10 km, which is approximately 1,500 feet. This distance applies when using coaxial cable, enabling network extension over long runs without signal degradation in typical deployment scenarios.
What network speeds does this media converter support?
It supports Fast Ethernet technology, specifically 10/100Base-TX, providing data transfer rates of up to 100 Mbps. This is suitable for standard IP applications like video streaming, data transfer, and PoE device communication in most commercial or surveillance environments.
What are the physical dimensions and form factor of this device?
The receiver has a compact desktop form factor with dimensions of 4.38 inches wide, 3.50 inches deep, and 0.39 inches high. It weighs 144.2 grams, making it easy to place on desks, shelves, or in enclosures without occupying significant space.
Does this product require any special configuration or management?
No, the eBridge1PCRX is designed for plug-and-play operation with no management port or configuration needed. It automatically handles signal conversion between twisted pair and coaxial media, allowing for straightforward installation without technical setup.
